RectorSeal 87024 Pro-Fit 1/4" Quick Connect 90° Elbow, Push-to-Connect Refrigerant Fitting
The RectorSeal 87024 changes the direction of a 1/4" refrigerant line by a fixed 90 degrees without a bender, a torch, or a brazed joint. It matters most where a tube cannot physically be bent — a short stub coming out of a wall sleeve, a tight turn behind an indoor head, a service loop with no room for a proper radius. Bending 1/4" tubing in cramped quarters is how liquid lines get kinked; the 87024 removes the bend entirely, replacing it with two push-to-connect ports that each seat 1" of tube and need no wrench at all.
Is a 1/4" 90° Elbow the Right Fitting for This Turn?
Use an elbow when the available space will not allow a swept bend at the tube's minimum radius, or when the existing line is already kinked at a corner and the damaged section has to come out. A 90° fitting is a deliberate choice, not a default — a gentle field bend is still the better option when there is room for one, because it introduces no additional joints.
When there is not room, the 87024 needs 1" of clean, straight tube inserted into each leg, which means roughly an inch and a quarter of undamaged tubing approaching the fitting from both directions. That is the practical constraint: the turn itself takes no space, but the two straight approaches do. Neither leg is tightened — there is no nut on the fitting — so a square cut, a clean deburr, and full insertion on both sides are the whole job.
Ideal for: Tight turns at wall and ceiling penetrations, routing behind wall-mounted indoor heads, replacing a kinked corner on a 1/4" liquid line, service loops in shallow chases, and equipment changeouts where the new unit's port location does not line up with the existing line.
Need the same turn in a larger line? Move up to the RectorSeal 87025 Pro-Fit 3/8" Quick Connect 90° Elbow, or use the 87018 1/4" union where the run stays straight.
Fitting selection is based on measured tube outside diameter and system operating conditions. Installation must be performed by an EPA 608-certified technician in accordance with RectorSeal's published instructions and applicable mechanical codes. Request free sizing assistance, contact Budget Heating, or call 813-885-7999.
What's Included
| Fitting | 87024 — 1/4" Pro-Fit Quick Connect 90° Elbow (one fitting) |
|---|---|
| Connection Type | Push-to-Connect, Fixed 90° Elbow (1/4" x 1/4") |
| Body Material | Brass |
| Seal Design | Patented Double O-Ring and Grip Ring |
| Design Pressure | 870 psig (60 bar) |
| Continuous Operating Temperature | 250°F (121°C) |
| Insertion Depth | 1" per leg |
| Assembly | Push-to-Connect — no tools, wrench, or torque required |
| Approved Tubing | Copper and Coated Aluminum Linesets |
| Certification | ICC-ES PMG-1616 (UL 207, UL 1963) |
The 87024 ships as one assembled elbow with the seal stack and grip-ring collars installed at the factory, cased 10 per box. The 87048 Pro-Fit Support Kit covers this size and provides the depth gauge for marking both legs plus the disconnect clips. If the turn would be better made as a bend, the RectorSeal brand page also lists a kink-free lineset bending kit.
90° Elbow & Sealing Features

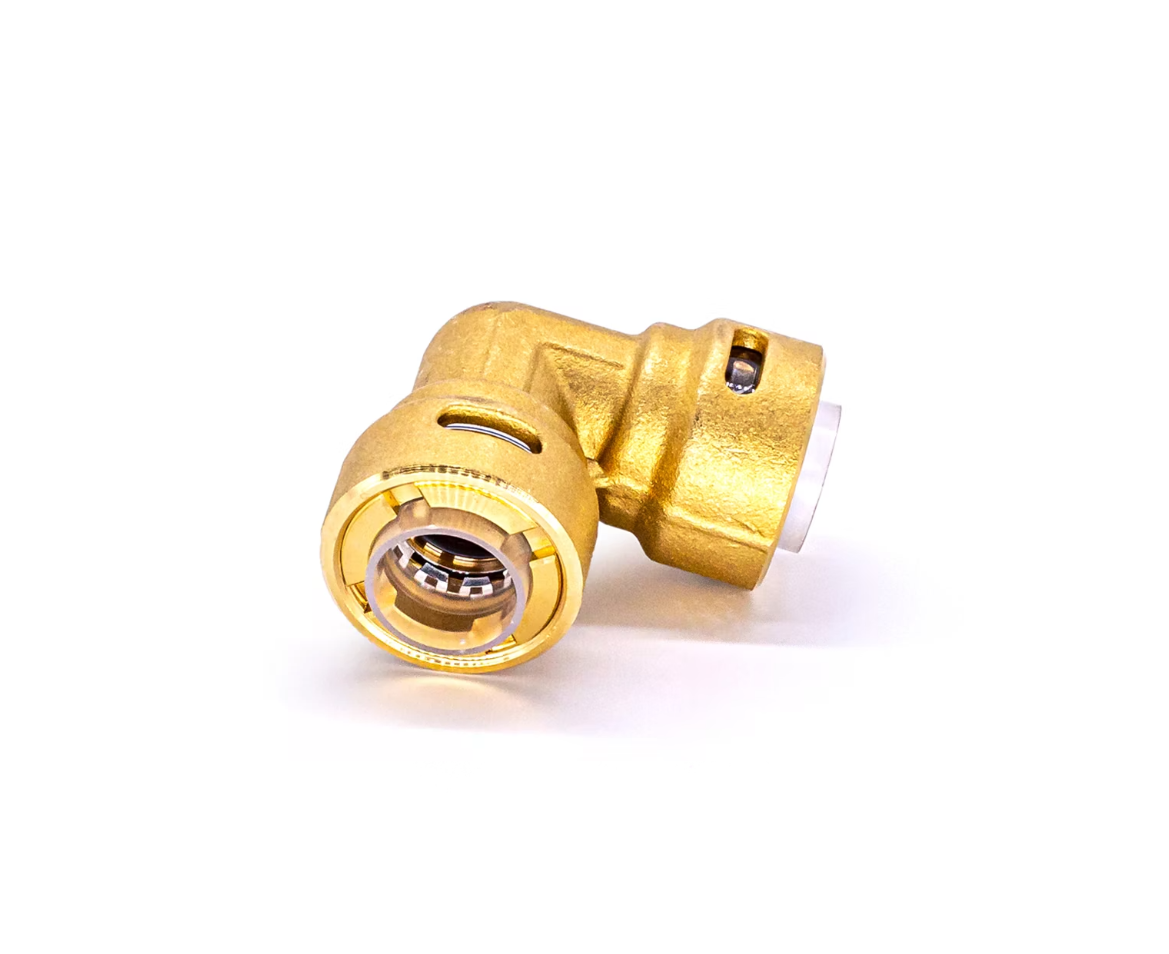

87024 Elbow Construction
- Fixed 90° brass body sized for 1/4" O.D. tubing
- Two independent push-to-connect ports, one per leg
- Patented double O-ring seal at each port
- Grip ring holds thin-wall 1/4" tube against pull-out
- Smooth machined bore through the turn
- 870 psig design pressure, identical to the straight fittings
- 250°F continuous operating temperature rating
- UV and corrosion resistant brass construction
- Sight windows verify insertion on both legs
- Certified under ICC-ES PMG-1616 to UL 207 and UL 1963
Tight-Space Routing
- Turns a line where the minimum bend radius will not fit
- Eliminates the kink risk of bending 1/4" tube by hand
- 1" insertion per leg, the shallowest in the elbow range
- No nuts on either leg, so nothing to over-tighten on thin-wall tube
- Flame-free assembly with no flux, filler, or brazing gas
- No nitrogen purge required during installation
- Works at wall sleeves and behind indoor head units
- Quick-release removal with the 87048 disconnect clip
- Approved for R-22, R-32, R-134a, R-290, R-410A, R-507, R-600a
- Packaged 10 per manufacturer case
Specifications & Manuals
Product documentation includes the full Pro-Fit part number table, insertion depth specifications, approved tubing and refrigerant lists, and the ICC-ES PMG product rating certificate covering the certified pressure and temperature ratings.
Frequently Asked Questions
When should I use a 90° elbow instead of a union?
Use the elbow when the line has to change direction and there is not enough space for a swept bend at the tubing's minimum radius. A union is for splicing a straight run. Where a proper bend will fit, a bend is still preferable — it adds no joints.
How much straight tube does the 87024 need on each leg?
1" of insertion per leg, so plan on roughly an inch and a quarter of clean, round, deburred tubing approaching the fitting from each direction. The turn itself is compact; the straight approaches are the real space requirement.
Does either leg of the 87024 need tightening?
No. Both legs are push-to-connect with no nuts. Mark 1" on each tube end, push until the grip ring clamps, and tug-test both sides. No wrench and no torque wrench are needed.
Does the elbow restrict refrigerant flow?
The 87024 is a full 1/4" fitting with a machined bore through the turn — it does not reduce the line size. Any 90° turn adds some pressure drop compared to straight tube, which is a reason to use elbows where they are needed rather than routinely.
Can the 87024 turn a lineset at a wall penetration?
Yes, that is a typical use. It is worth confirming the finished fitting will not be compressed or stressed by the sleeve or the wall covering, and that the joint remains accessible per the mechanical code your jurisdiction enforces.
Is the 87024 the same pressure rating as the 1/4" union?
Yes. ICC-ES PMG-1616 applies the same 870 psig design pressure and 250°F continuous operating temperature to every Pro-Fit configuration — unions, elbows, reducers, sockets, and service valves alike.
