5 Ton Rheem 17 SEER2 R454B Two Stage Central System RA16AY60AJ2NA, RH2TY6024STANNJ
This is the largest system in Rheem's Endeavor® Line Classic Plus® Series iM RA16AY lineup. The RA16AY60AJ2NA two-stage condenser pairs with the RH2TY6024STANNJ two-stage-airflow air handler, AHRI certified at 17 SEER2 (#217269584). It includes a factory crankcase heater and factory high and low pressure controls. Low-stage operation keeps a 5 ton system from overcooling and short-cycling on mild days. It uses low-GWP R-454B with Rheem's PlusOne® Refrigerant Detection System™. It's cooling only, with Rheem electric heat strips up to 20 kW offered.
Is a 5 Ton Air Conditioning System the Right Size?
A 5 ton system provides 60,000 BTU/h of nominal cooling at high stage, the top of the residential split-system range. It's often used in homes around 2,500–3,000+ sq. ft. as a loose guide, and in some light commercial spaces.
Large single-stage systems are prone to short cycling. A two-stage 5 ton handles part-load hours on low stage, which improves comfort and humidity control. A Manual J load calculation and a duct review confirm a single 5 ton system is the right choice.
Ideal for: Large single-family homes, two-story homes on one system and light commercial spaces.
Need heating from the outdoor unit? See the 5 Ton Rheem RP15AY60AJ2NA, RH2TY6024STANNJ heat pump system, which uses the same air handler.
Recommended home sizes are general guidelines only. Actual system requirements depend on insulation, climate, windows, ductwork, occupancy and a proper load calculation. Request free sizing assistance, contact Budget Heating, or call 813-885-7999.
What's Included
| Outdoor Condensing Unit | RA16AY60AJ2NA — 5 Ton Rheem Classic Plus Two-Stage R454B Air Conditioner |
|---|---|
| Indoor Air Handler | RH2TY6024STANNJ Two-Stage Airflow Multipoise Air Handler (24.5" Wide) |
| Application | Cooling-Only Two-Stage Central Air Split System (Electric Heat Kit Optional) |
| Refrigerant | R-454B (Low-GWP A2L Refrigerant) |
| Compressor | Two-Stage Scroll Compressor |
| Metering Device | Factory-Installed Expansion Valve on Indoor Coil (TXV) |
| Electrical | 208/230V, Single Phase, 60 Hz Condensing Unit — 29 MCA / 50A Max Overcurrent |
| Air Handler Electrical | 208/240V, Single Phase — See Rating Plate (Varies with Heat Option) |
The RA16AY60AJ2NA condenser is 45" tall on a 35.75" x 35.75" base and weighs 277 lbs (operating). It uses a 26" three-blade Swept Wing fan with a 1/5 HP motor moving 4,169 CFM and has a 74.0 dBA sound rating. The RH2TY6024STANNJ air handler is 24.5" wide and 55.5" tall, with a 3/4 HP motor. Use compatible two-stage thermostats and copper line sets and fittings to complete the install.
Condensing Unit & Air Handler Features

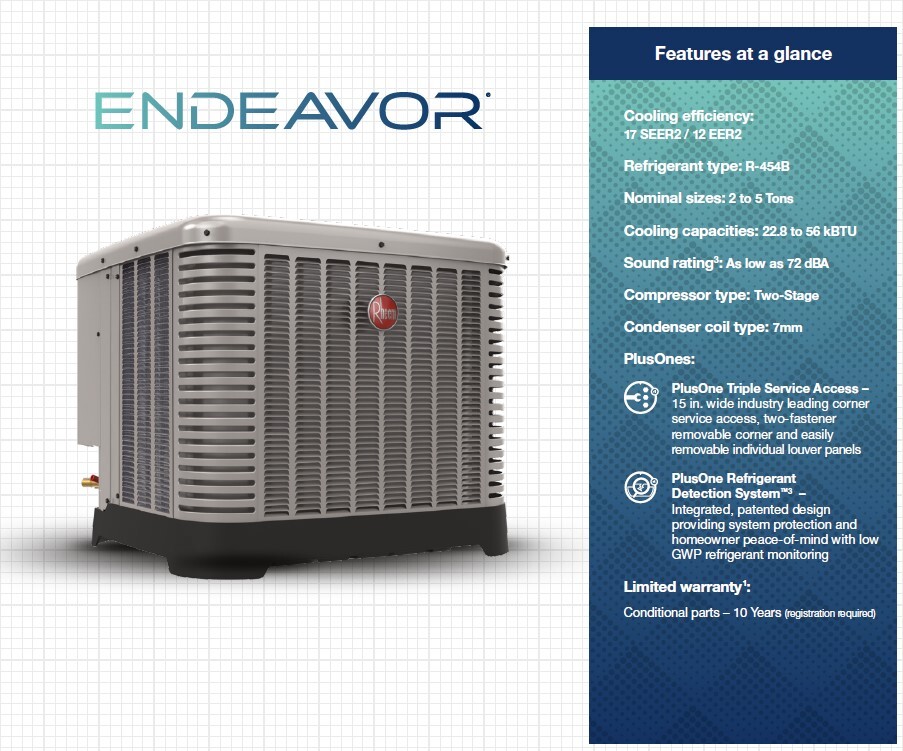

RA16AY60AJ2NA Outdoor Condensing Unit
- 60,000 BTU/h nominal cooling capacity
- Two-stage scroll compressor (low and high stage)
- 74.0 dBA weighted sound power rating
- 2-row 7 mm copper tube coil with Swept Wing fan
- 189 oz. factory R-454B charge for 15 ft. of line set
- 26" three-blade Swept Wing fan with 1/5 HP motor
- 3/8" liquid and 7/8" suction front-seating service valves
- Factory high and low pressure controls
- Factory-installed compressor crankcase heater
- 10-year conditional parts limited warranty (registration required)

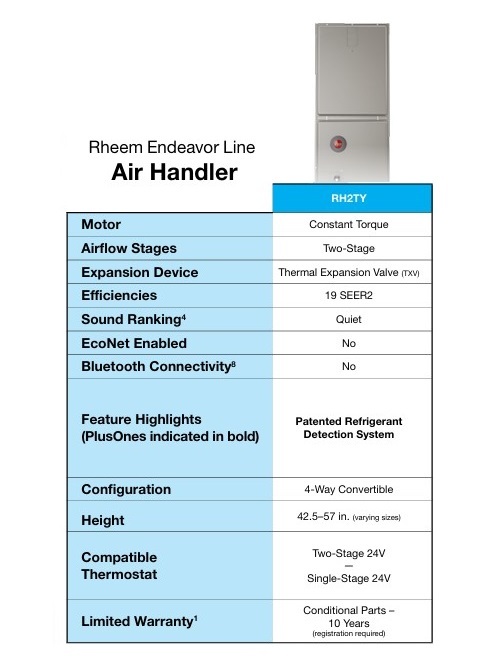

RH2TY6024STANNJ Two-Stage Air Handler
- Two-stage airflow matches the compressor's low and high stages
- 3/4 HP, 5-speed constant torque motor
- PlusOne® Refrigerant Detection System™ with integrated A2L sensor
- Aluminum fins bonded to internally grooved aluminum tubing
- 4-way convertible: upflow, downflow, horizontal left or right
- 1.0" foil-faced cabinet insulation for quieter operation
- Cabinet air leakage under 2% at 1" H₂O (ASHRAE 193)
- Works with standard 24V two-stage thermostats
- Expansion valve on indoor coil for AC or heat pump use
- Field-installed heater kits up to 20 kW with UL/cUL-listed breakers
Specifications & Manuals
Documentation includes RA16AY electrical, sound, dimensional and line-size data, condenser and air handler installation instructions, the RA16AY brochure, RH2TY airflow and heater tables and the Rheem limited warranty.
Frequently Asked Questions
Is a crankcase heater standard on the RA16AY60AJ2NA?
Yes. Rheem lists the crankcase heater as factory standard on the RA16AY60. The smaller RA16AY sizes offer it as a field-installed accessory.
How much more efficient is this than the single-stage 5 ton RA15AY60 system?
This two-stage match is rated 17 SEER2, compared with 15.2 SEER2 for the single-stage RA15AY60AJ1NA system with the same RH2TY6024STANNJ air handler.
How heavy is the RA16AY60AJ2NA?
Rheem lists a 277 lb operating weight and a 285 lb shipping weight. It stands 45" tall on a 35.75" x 35.75" base, so plan for proper rigging or extra hands.
How much R-454B comes in the RA16AY60AJ2NA?
Rheem lists a 189 oz. factory charge, sized for 15 ft. of line set. Longer runs need added refrigerant per the installation instructions.
What airflow does a two-stage 5 ton system need in the 24.5" RH2TY?
Rheem's airflow limits for a 5 ton RH2TY in the 24.5" cabinet list 1,620 CFM minimum and 1,800 CFM nominal. Make sure the ducts can carry high-stage airflow without excess static pressure.
Can I avoid suction line traps on a long RA16AY60 line set?
Rheem's line-size notes say not to use suction line traps in the suction riser, because they add unwanted pressure drop. Follow the long line set guide for runs in the shaded long-line range.
