Gree 9,000 BTU PTAC Heat Pump Air Conditioner R32 208/230V White, GAA09AED6NRNB6DCP
The Gree GAA09AED6NRNB6DCP is a PTAC II packaged terminal heat pump with a white (B6) front panel. It's sized for mid-size hotel rooms, one-bedroom apartments, condos and senior living suites. It's rated at 9,700 BTU/h of cooling and 8,500 BTU/h of heat pump heating at 230V, runs on R32 refrigerant and carries a 12.1 EER. It connects to wired or wireless wall thermostats and energy management systems, which makes it a practical choice for property operators who manage many rooms from one front desk or building system.
Is a 9,000 BTU PTAC the Right Size?
Gree lists an application area of 14 to 22 square yards for this model, or roughly 126 to 198 square feet. That's the middle ground between a compact guest room and a suite. It works for a king room with a seating area, a primary bedroom, a studio with a small kitchenette or a two-person office. At 282 to 330 CFM of airflow, it circulates air well through a typical rectangular room without drafts.
For the best comfort, look at the heat load, not just the floor plan. Large windows, afternoon sun, high ceilings, extra occupants and cooking appliances all add load. A drafty exterior wall or a cold climate adds heating demand. If a room sits near the top of the range and has several of these factors, get a sizing check before ordering.
Ideal for: Mid-size hotel rooms, one-bedroom apartments, condominiums, assisted living and senior housing suites, and small offices that need both heating and cooling.
Looking for multi-room or whole-home comfort? Explore our ductless mini split systems when you need to condition several connected rooms from one outdoor unit.
Recommended room sizes are general guidelines only. Actual requirements depend on insulation, window exposure, climate, occupancy and heat loads in the room. Request free sizing assistance, contact Budget Heating, or call 813-885-7999.
What's Included
| PTAC Chassis | GAA09AED6NRNB6DCP — 9,000 BTU PTAC II Heat Pump |
|---|---|
| Cooling / Heating Capacity | 9,700 / 8,500 BTU/h at 230V (9,400 / 8,200 BTU/h at 208V) |
| Efficiency | 12.1 EER |
| Refrigerant | R32 |
| Front Panel | White (B6 Panel) |
| Electrical | 208/230V, Single Phase, 60 Hz |
| Unit Dimensions | 42" W x 16" H x 21-1/2" D |
| Warranty | 5 Year Limited Warranty |
The PTAC II chassis uses a separately purchased LCDI power cord, and the cord determines the backup electric heat. Choose the 15 amp NEMA 6-15P cord for 2.45 kW of heat or the 20 amp NEMA 6-20P cord for 3.45 kW. Replacing a PTAC? The industry-standard 42" x 16" chassis is designed to install in most standard wall sleeves (contractor must verify). For new construction, pair it with a Gree polymer insulated wall sleeve, stamped aluminum outdoor grille and condensate drain kit.
PTAC II Chassis & Control Features
GAA09AED6NRNB6DCP PTAC II Heat Pump Chassis
- 9,700 BTU/h cooling and 8,500 BTU/h heat pump heating at 230V
- 12.1 EER efficiency rating
- R32 refrigerant with a rotary compressor
- White B6 front panel
- Epoxy-coated condenser coil resists acidic and salt air
- Outdoor coil sea coast protection standard
- Condensate slinger ring disposal
- Separate multi-speed indoor and outdoor fan motors
- Removes up to 2.11 pints of moisture per hour
- Sound pressure level down to 46 dB(A)
Controls, Connectivity & Installation
- Electronic touch pad with large digital display
- Optional IR remote control
- Wired or wireless wall thermostat interface
- Energy management system (EMS) interface
- Preset, adjustable factory setpoint limits
- Programmable sleep timer with automatic shutoff
- Dry mode dehumidification
- Freeze protection and self-diagnosis
- Automatic voltage adaptation
- Retrofits into most competitive wall sleeves without a kit
Specifications & Manuals
Product documentation includes the PTAC II heat pump submittal, product brochure, owner's operating instructions, service manual and power cord installation guide to support selection, installation and long-term maintenance.
Frequently Asked Questions
Why is this called a 9,000 BTU PTAC when it's rated at 9,700 BTU?
9,000 BTU is the nominal size class. Gree's rated cooling capacity for the GAA09AED6NRNB6DCP is 9,700 BTU/h at 230V and 9,400 BTU/h at 208V.
What color is the front panel on the GAA09AED6NRNB6DCP?
The "B6" in the model number indicates the white front panel. Gree's beige panel version uses a B5 designation.
Can this PTAC connect to a hotel energy management system?
Yes. The PTAC II supports wired and wireless wall thermostats as well as an energy management system (EMS) interface, so operators can tie rooms into centralized control.
What does the condensate slinger ring do?
The slinger ring picks up condensate water from the base pan and throws it onto the outdoor coil, where it evaporates. This helps dispose of condensate and supports cooling performance.
What warranty does the Gree PTAC II carry?
Gree backs the PTAC II with a 5 year limited warranty on parts and compressor for residential applications. See Gree's product literature for full terms.
What else do I need to install this PTAC in a new wall opening?
A new installation typically needs a 42" x 16" wall sleeve, an exterior grille, a condensate drain kit and a 15 or 20 amp power cord, since the power cord is sold separately.
Click On Links Below For Technical Specifications & Documents:

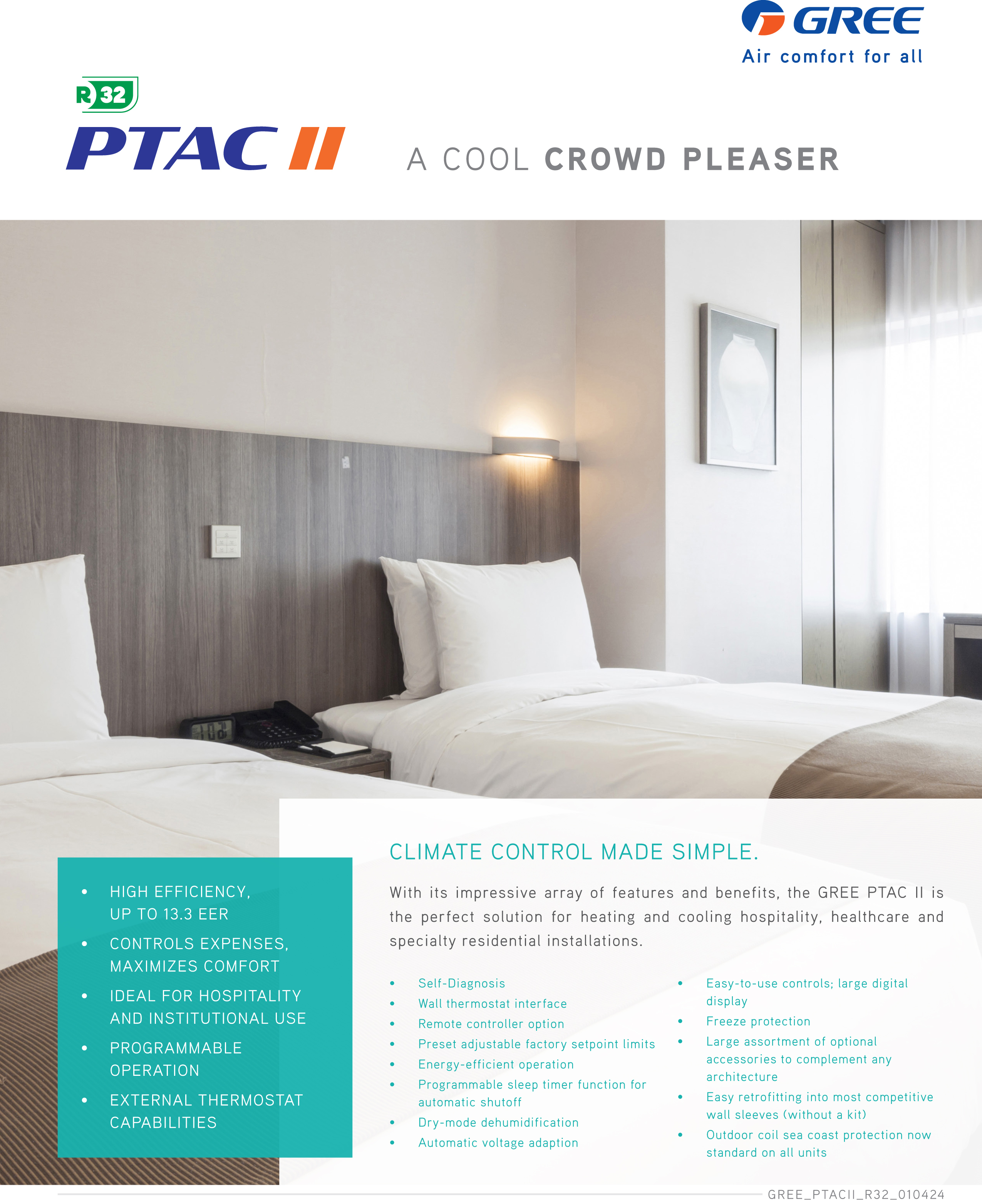

Gree GAA & GAE PTAC II Brochure
