5 Ton Rheem 17 SEER2 R454B Variable Speed Inverter Heat Pump System RP17AY60AJVCA, RH2VY6024STACNJ
This 5-ton Rheem system is the flagship of the RP17AY communicating lineup, combining the inverter-driven RP17AY60AJVCA condenser and its two-row coil with the EcoNet-enabled RH2VY6024STACNJ variable-speed air handler for R-454B refrigerant. Communicating over EcoNet, the system delivers up to 57,000 BTU of heating at 47°F and an AHRI-certified 17 SEER2 / 10.5 EER2 rating with up to 9.5 HSPF2 for the largest homes and light-commercial spaces.
Is the 5 Ton System the Right Size?
A 5-ton system serves the largest homes and many light-commercial spaces, often around 2,400 to 3,000-plus square feet, but capacity this large should never be chosen on floor area alone.
Oversizing a 5-ton system on a smaller home hurts comfort and humidity control, so a Manual J load calculation is especially important here. Where the load calls for it, this communicating pairing covers peak demand and still modulates down for efficient, precise part-load operation.
Ideal for: large single-family homes, spacious multi-story layouts, and light-commercial spaces that want maximum single-phase capacity with communicating control.
Not sure you need a full 5 tons? Compare the 4 Ton Rheem RP17AY48AJVCA Variable Speed System for a somewhat lower load.
Recommended sizing ranges are general guidelines only. Actual system requirements depend on insulation, climate, ductwork, window load, and air-sealing. Request free sizing assistance, contact Budget Heating, or call 813-885-7999.
What's Included
| Outdoor Condenser | RP17AY60AJVCA – 5 Ton Inverter-Driven Heat Pump |
|---|---|

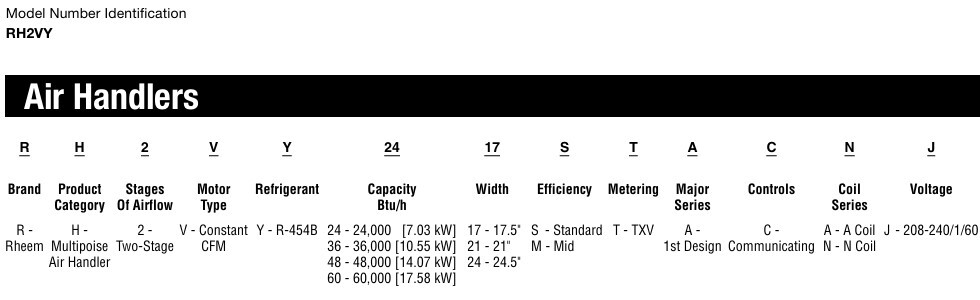

| Indoor Air Handler | RH2VY6024STACNJ – 5 Ton EcoNet Variable-Speed (Constant CFM) |
| System Efficiency | 17 SEER2 / 10.5 EER2 / 9.5 HSPF2 (AHRI-certified) |
| Cooling Capacity | 54,000 BTU/h (AHRI-matched) |
| Heating Capacity | 57,000 BTU/h @ 47°F / 47,000 BTU/h @ 17°F |
| Refrigerant | R-454B (A2L, low GWP) |
| Air Handler Cabinet | 24.5" wide, 4-way convertible • 3/4 HP ECM |
| Electric Heat Kit | Field-installed RXBH kit – sold separately |
The RH2VY6024STACNJ uses a Constant CFM ECM motor with a TXV, an aluminum indoor coil, and 1-inch foil-faced insulation for quiet operation and less than 2% cabinet air leakage. The outdoor unit uses a two-row condenser coil, both units include an integrated PlusOne Refrigerant Detection System, and the air handler commissions dip-switch-free over Bluetooth.
Condenser & Air Handler Features

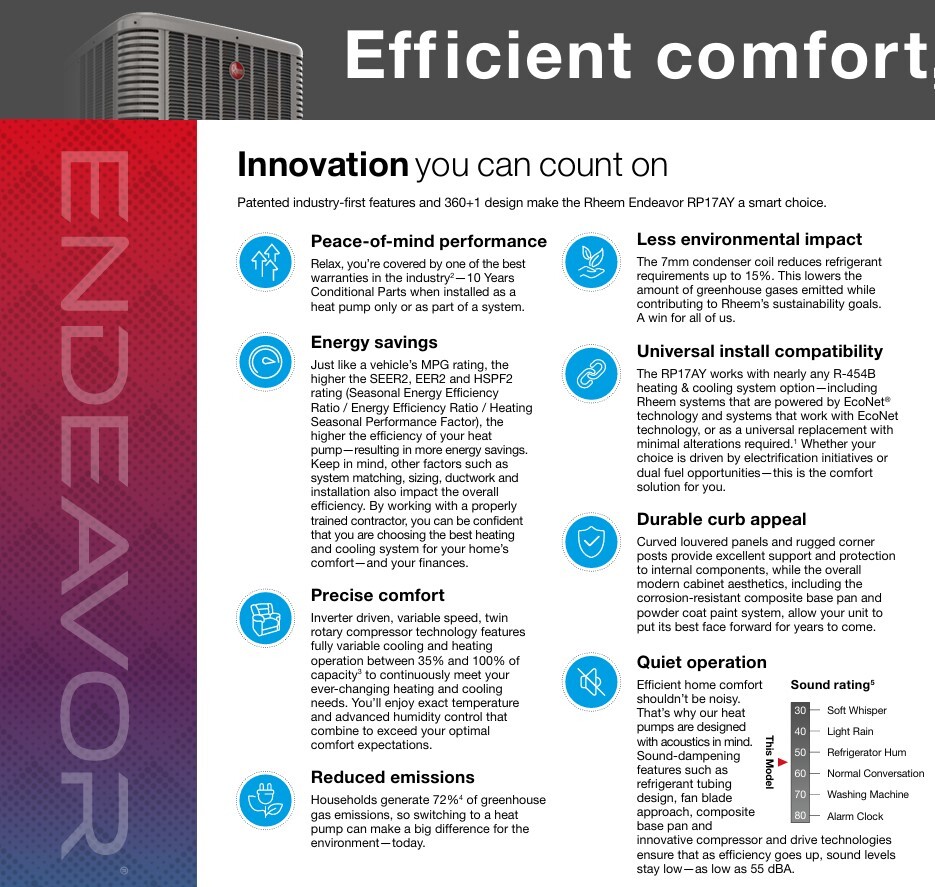

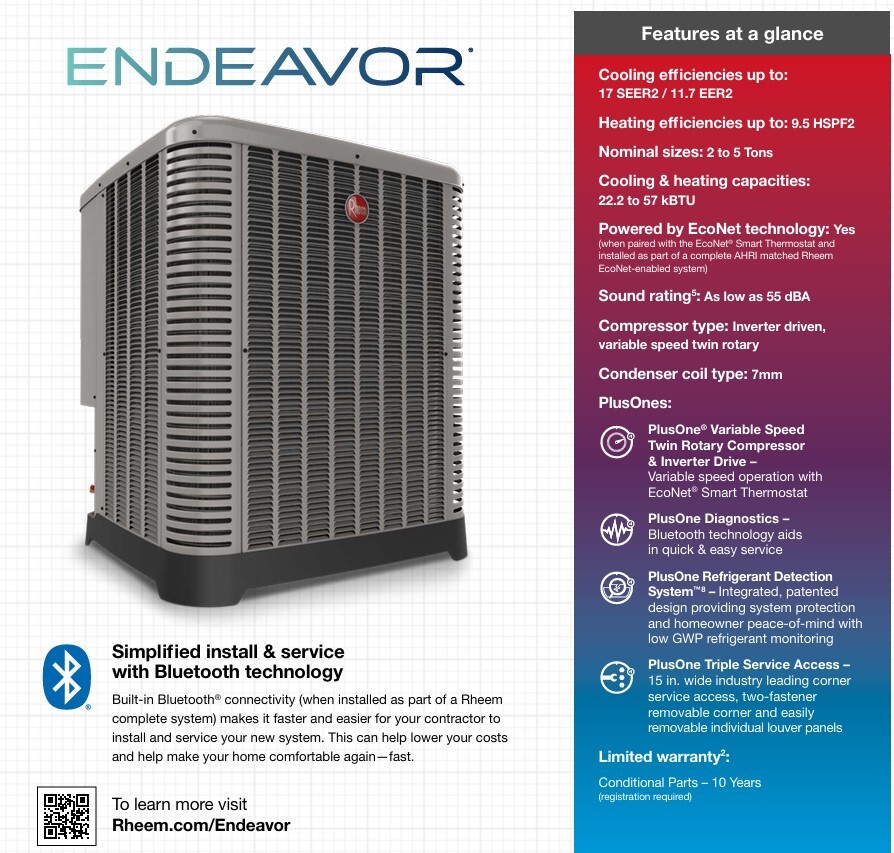

RP17AY60AJVCA Condenser
- Inverter-driven PlusOne variable-speed compressor for efficient part-load modulation
- Two-row 7mm copper condenser coil for high heat rejection
- Quiet as low as 57 dBA even at full 5-ton capacity
- EcoNet enabled with PlusOne Diagnostics & Bluetooth
- 10-year conditional parts warranty with registration
RH2VY6024STACNJ Air Handler
- EcoNet-enabled Constant CFM (variable-speed) ECM motor, two-stage airflow
- TXV metering and corrosion-resistant aluminum indoor coil
- 24.5-inch 4-way convertible cabinet for large-capacity installs
- Dip-switch-free Bluetooth commissioning via the Rheem Contractor App
- Accepts field-installed RXBH electric heat kits
Because both the condenser and the RH2VY air handler are EcoNet enabled, this is a fully communicating system. We recommend the Rheem EcoNet Smart Thermostat so the system auto-configures and gradually modulates capacity and airflow together for the best efficiency, humidity control, and quiet operation, plus remote monitoring and service alerts through the EcoNet app.
Specifications & Manuals
Product documentation includes condenser and air handler technical specifications, installation instructions, the R-454B charge chart, and warranty information to assist with equipment selection, installation, and service.
Frequently Asked Questions
What is the efficiency rating of the 5-ton RH2VY system?
The RP17AY60AJVCA and RH2VY6024STACNJ combination is AHRI-certified at 17 SEER2, 10.5 EER2, and up to 9.5 HSPF2.
How much heating does this 5-ton communicating system provide?
It delivers up to 57,000 BTU/h at 47°F and about 47,000 BTU/h at 17°F, the highest heating output in the RP17AY line, with optional electric backup heat.

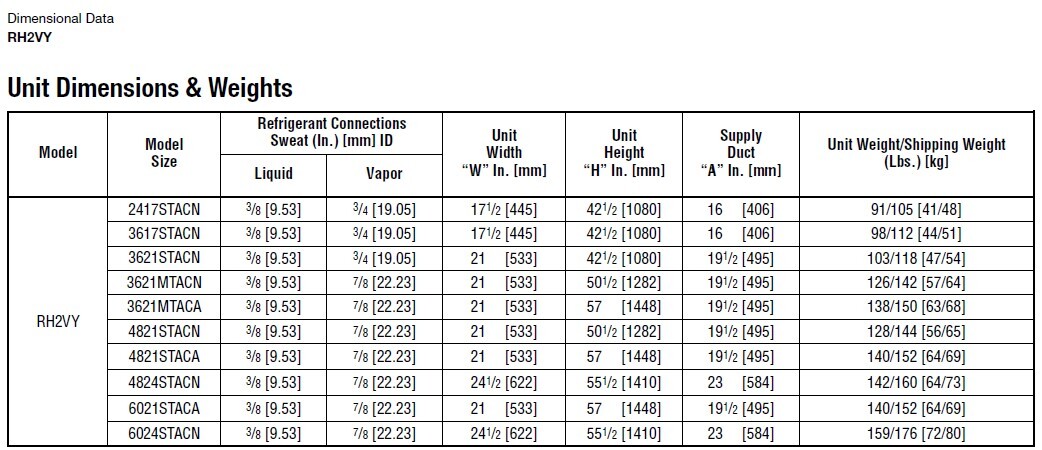

What size is the 5-ton RH2VY air handler cabinet?
The RH2VY6024STACNJ uses a 24.5-inch-wide 4-way convertible cabinet with a 3/4 HP Constant CFM ECM motor to handle 5-ton airflow.
Does the EcoNet system offer remote monitoring?
Yes. With the EcoNet Smart Thermostat and a Wi-Fi connection, homeowners can monitor and control the system and receive service alerts through the EcoNet app.
Why does the 5-ton condenser use a two-row coil?
The higher heat load of a 5-ton unit needs more coil surface, so the RP17AY60AJVCA uses a two-row 7mm copper coil for effective heat rejection.
Is this 5-ton system a good fit for light-commercial spaces?
Yes. As the largest single-phase communicating system in the line, it suits large homes and many light-commercial applications when a load calculation confirms the capacity.
