2 Ton Rheem 14.8 SEER2 R454B Heat Pump Short Apartment/Condo Type System RP14AY24AJ2NA, RB2TY2417STANMJB
This Rheem Endeavor® Line system is built for closets and platforms where a full-height air handler won't fit. It pairs the RP14AY24AJ2NA two-stage R-454B heat pump with the RB2TY2417STANMJB low-boy air handler, which stands only about 35 inches tall and is 17-1/2 inches wide. The system delivers 24,000 BTU of nominal heating and cooling and is listed at 14.8 SEER2 (AHRI #216010779). The air handler comes with factory-installed, circuit-breaker-protected electric heat and a constant-torque ECM blower. It is a good match for condo owners, property managers and HVAC contractors replacing short air handlers in apartments, mobile-style closets and low-ceiling mechanical spaces.
Is a 2 Ton Heat Pump System the Right Size?
A 2 ton system fits units with a heating and cooling load near 24,000 BTU per hour, which is common in one-bedroom and smaller two-bedroom condos. The RP14AY24AJ2NA's two-stage scroll compressor helps here. It spends most of its time on low stage, which runs longer, quieter cycles and pulls more moisture out of the air than a single-stage unit of the same size.
Load depends on more than square footage. Consider floor level, exterior wall exposure, window orientation, insulation and how many people live in the unit. Check your estimate with the AC tonnage and BTU calculator before choosing this size.
Ideal for: One-bedroom and compact two-bedroom condos, apartments with short utility closets, low-ceiling mechanical rooms and replacement of existing short-cabinet 2 ton air handlers.
Need more capacity? Step up to the 2.5 Ton Rheem 15.2 SEER2 R454B Heat Pump Short Apartment/Condo Type System RP14AY30AJ2NA, RB2TY3621STANMJB for larger or higher-exposure units.
Recommended system sizes are general guidelines only. Actual requirements depend on climate, insulation, unit location within the building, window exposure, occupancy, and installation conditions. Request free sizing assistance, contact Budget Heating, or call 813-885-7999.
What's Included
| Outdoor Heat Pump | RP14AY24AJ2NA — 2 Ton Two-Stage Endeavor® Line Classic® Series Heat Pump |
|---|---|
| Indoor Air Handler | RB2TY2417STANMJB 17-1/2" Wide Low-Boy Air Handler with Factory Electric Heat (5 or 7 kW) |
| Application | Short Apartment / Condo Split System Heat Pump, Heating & Cooling |
| Refrigerant | R-454B (Low-GWP A2L) |
| Compressor | Two-Stage Scroll Compressor |
| Efficiency | 14.8 SEER2, AHRI Certified #216010779 |
| Electrical | 208/230V, Single Phase, 60 Hz Heat Pump (16 MCA / 25 Amp Max Overcurrent) |
| Air Handler Electrical | 208-240V, Single Phase, 60 Hz |
The RB2TY2417STANMJB is Rheem's smallest low-boy cabinet. It is 17-1/2" wide, weighs 92 lbs, and uses a 1/3 HP five-speed constant-torque ECM motor with two-stage airflow that follows the compressor's low and high stages. Choose 5 kW or 7 kW factory heat; both come with a circuit breaker for service disconnect. The RP14AY24AJ2NA outdoor unit is compact at 25" tall with a 29-3/4" square footprint. It ships with 83 oz. of R-454B for 15 ft. of line set and connects with a 3/4" suction and 3/8" liquid line. The components are also sold individually as the RP14AY24AJ2NA heat pump condenser and the RB2TY2417STANMJB05 short air handler with 5 kW heat.
Heat Pump & Air Handler Features
RP14AY24AJ2NA Outdoor Heat Pump
- Two-stage scroll compressor for precise temperature and humidity control
- Inverted reversing valve with gravity-assist shifting for faster heat transfer
- PlusOne® expanded valve space with a minimum 27 sq. in. working area
- PlusOne® triple service access with a 15" removable corner panel
- Compact 25" tall cabinet with a 29-3/4" x 29-3/4" footprint
- 73 dBA weighted sound power rating
- Factory-standard high- and low-pressure controls
- Internal pressure relief valve and internal thermal overload
- 7mm condenser coil that needs less refrigerant
- Curved louvered panels and a corrosion-resistant composite base pan

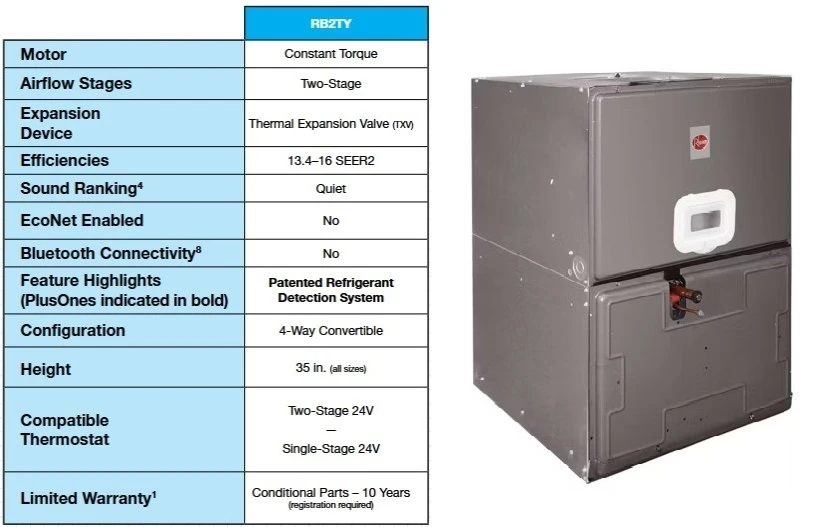

RB2TY2417STANMJB Low-Boy Air Handler
- Compact low-boy design about 35" tall and 17-1/2" wide
- 1/3 HP five-speed constant-torque ECM motor with two-stage airflow
- Factory-installed 5 or 7 kW electric heat with circuit breaker
- 4-way convertible: upflow, downflow, horizontal left or right
- PlusOne® Refrigerant Detection System™ with factory A2L sensor
- TXV metering on a Multiflex coil
- 1" foil-faced cabinet insulation for quieter operation
- Less than 2% cabinet air leakage at 1" H2O per ASHRAE 193
- Slide-out blower and tab-lock blower housing for easy service
- Takes a 16.25" x 21" filter (Rheem part 54-23217-02)
Specifications & Manuals
Product documentation includes RP14AY heat pump and RB2TY air handler technical specifications, installation instructions, the RP14AY brochure, and Rheem warranty information to assist with equipment selection, installation, and service.
Frequently Asked Questions
What size condo is the RP14AY24AJ2NA / RB2TY2417STANMJB system meant for?
This 24,000 BTU system usually suits one-bedroom and smaller two-bedroom condos with a load near 2 tons. Corner units, top floors and large windows can push the load higher, so confirm with a sizing calculation first.
How short is the RB2TY2417STANMJB compared with a standard Rheem air handler?
The RB2TY low-boy stands about 35" tall, much shorter than a standard upright air handler like the RH2TY2417STANNJ in the 2 Ton Rheem RP14AY24AJ2NA, RH2TY2417STANNJ system. That makes it a fit for closets with shelving above, low platforms and short mechanical spaces.
Which heat strip sizes are available with the 2 ton RB2TY2417STANMJB?
The 2 ton cabinet comes with factory-installed electric heat in 5 kW (RB2TY2417STANMJB05) or 7 kW (RB2TY2417STANMJB07). Actual output is about 3.7/4.9 kW and 5.3/7.0 kW at 208/240V. Choose the option you need when you order.
What circuit does the RB2TY2417STANMJB with 5 kW heat need?
Per Rheem's electrical data, the 5 kW model needs a 25/28 amp minimum circuit ampacity and a 25/30 amp maximum circuit protector at 208/240V. The 7 kW model needs 35/39 amps MCA and a 35/40 amp maximum protector. The outdoor heat pump is wired on its own circuit.
Can the RB2TY2417STANMJB be installed horizontally above a ceiling?
Yes. The cabinet is 4-way field convertible to horizontal left or horizontal right, as well as upflow and downflow. For horizontal installs over finished ceilings, Rheem offers an external auxiliary horizontal drain pan (RXBM-AA06) as an accessory.
Is there an air conditioning only version of this 2 ton short system?
Yes. If the unit doesn't need heat pump heating, the 2 Ton Rheem RA14AY24BJ1NA, RB2TY2417STANMJB short condo AC system uses the same low-boy air handler with a cooling-only condenser.
