2 Ton Rheem R454B Air Handler Short Apartment/Condo Type RB2TY2417STANMJB05
RB2TY Endeavor Air Handler Features:
• 35" Tall Compact Design
• Quiet Operation: Provided by a cabinet construction with 1.0 inch foil faced insulation for quieter sound characteristics
• Rugged Steel Cabinet Construction: Designed for added strength and versatility
• 4-Way Field Convertible Design: vertical upflow, vertical downflow, horizontal left hand or right hand air supply
• Less than 2% Cabinet Air Leakage at 1-inch H2O: When tested in accordance with ASHRAE Standard 193
• Designing for Sustainability with Low GWP: For 2025, the Environmental Protection Agency (EPA) has set a global warming potential (GWP) limit of 700 for refrigerant used in heating and cooling systems. This new requirement will result in a 78% lower GWP than previous-generation refrigerants — with only minimal changes to system installation. For us, this is another step toward our continued sustainability goal of reducing greenhouse gas emissions, while still delivering an exceptional level of energy efficient, dependable comfort
• PlusOne Refrigerant Detection System: An integrated one-box, patented design featuring the A2L sensor and mitigation board, offering easier commissioning with a single component and simplified wiring configuration, compatibility with any 24V thermostat application and system protection by automatically pausing outdoor unit operation if excess refrigerant is detected

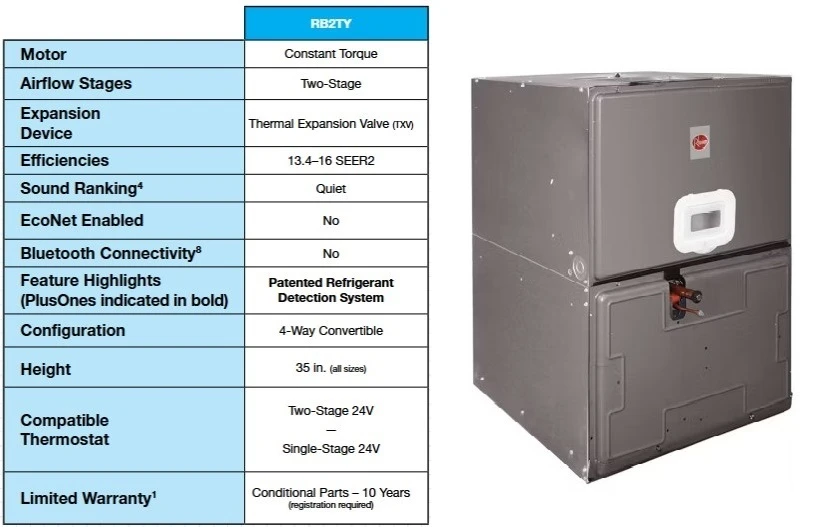

RB2TY Technical Specifications
