2 Ton Rheem 14.3 SEER2 R454B Central Wall Mount Apartment/Condo Type System RA14AY24BJ1NA, RF1PY2421STANSJ
This Rheem Endeavor® Line Classic® system pairs the second-design RA14AY24BJ1NA condenser with the RF1PY2421STANSJ wall mount apartment/condo air handler, AHRI certified at 14.3 SEER2 (#216375614). The RF1PY is only 36" tall, built to replace wall mount air handlers in apartment, condo and townhome closets. It runs on low-GWP R-454B, and the air handler includes Rheem's PlusOne® Refrigerant Detection System™. This system ships with a factory-installed 5 kW or 8 kW breakered heater.
Is a 2 Ton Air Conditioning System the Right Size?
Two tons (24,000 BTU/h) is common in 1- and 2-bedroom apartments and condos around 900–1,200 sq. ft. as a general reference.
Corner units, top floors and large sliding doors raise the load. A Manual J load calculation is the best way to confirm 2 tons before replacing an existing wall mount system.
Ideal for: 1- and 2-bedroom apartments, condos and townhomes replacing an existing wall mount air handler.
Want higher efficiency? Compare the 2 Ton Rheem 15.2 SEER2 R454B Central Wall Mount Apartment/Condo Type System RA14AY24BJ1NA, RF2TY2421STANSJ with the two-stage RF2TY air handler.
Recommended home sizes are general guidelines only. Actual system requirements depend on insulation, climate, windows, ductwork, occupancy and a proper load calculation. Request free sizing assistance, contact Budget Heating, or call 813-885-7999.
What's Included
| Outdoor Condensing Unit | RA14AY24BJ1NA — 2 Ton Rheem Classic R454B Air Conditioner (B Design) |
|---|---|
| Indoor Air Handler | RF1PY2421STANSJ Wall Mount Apartment/Condo Air Handler (21.5" W x 36" H) |
| Application | Cooling-Only Wall Mount Apartment/Condo Split System (Factory Electric Heat Optional) |
| Refrigerant | R-454B (Low-GWP A2L Refrigerant) |
| Compressor | Single-Stage Scroll Compressor |
| Metering Device | Factory-Installed Expansion Valve on Indoor Coil (TXV) |
| Electrical | 208/230V, Single Phase, 60 Hz Condensing Unit — See Rating Plate (B Design) |
| Air Handler Electrical | 208/240V, Single Phase — 5 kW: 24/28 MCA, 25/30A Max; 8 kW: 35/40 MCA, 35/40A Max |
The RA14AY24BJ1NA condenser is the second design of Rheem's 2 ton RA14AY; check its rating plate for exact electrical data. The RF1PY2421STANSJ air handler measures 21.5" wide, 36" tall and 17" deep, weighs 80 lbs and takes a 20" x 20" x 1" filter. Complete the install with compatible thermostats and copper line sets and fittings.
Condensing Unit & Air Handler Features
RA14AY24BJ1NA Outdoor Condensing Unit
- 24,000 BTU/h nominal cooling capacity
- Single-stage scroll compressor
- 7 mm copper tube condenser coil uses less refrigerant
- 3/8" liquid and 3/4" suction front-seating service valves
- PlusOne® Expanded Valve Space and Triple Service Access
- Composite base pan, powder-coated paint and rust-resistant screws
- Field-installed filter drier and external gauge ports
- 10-year conditional parts limited warranty (registration required)

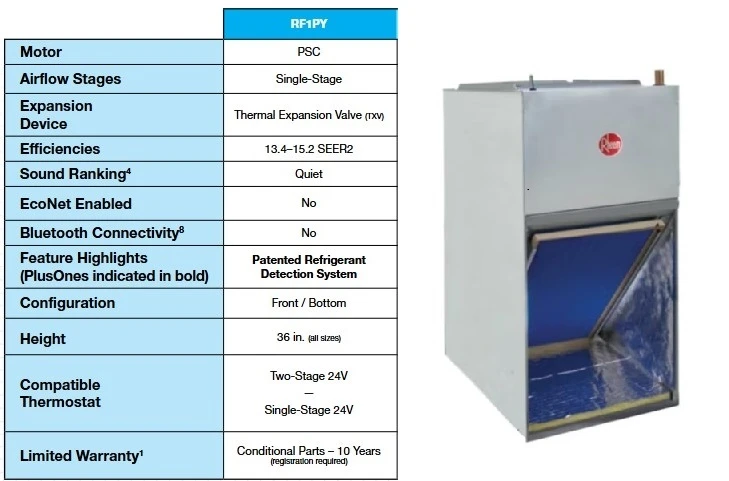

RF1PY2421STANSJ Wall Mount Air Handler (PSC)
- Compact 36" tall wall mount cabinet for apartment and condo closets
- 1/4 HP two-speed PSC blower motor
- PlusOne® Refrigerant Detection System™ with factory-installed A2L sensor
- Front or bottom return, vertical upflow installation
- Aluminum fins bonded to internally grooved aluminum tubing
- 1.0" foil-faced cabinet insulation for quieter operation
- Cabinet air leakage under 2% at 1" H₂O (ASHRAE 193)
- Molded polymer corrosion-resistant condensate drain pan
- 20" x 20" x 1" filter size, 800 CFM nominal
- Factory-installed breakered heater options in 5 or 8 kW
Specifications & Manuals
Documentation includes RA14AY electrical, sound, dimensional and line-size data, condenser installation instructions, the RA14AY brochure, RF1PY dimensions, airflow and heater tables, wall mount air handler installation instructions and the Rheem limited warranty.
Frequently Asked Questions
What do the B05 and B08 endings on the RF1PY model mean?
They identify the factory-installed breakered heater: B05 is 5 kW and B08 is 8 kW. A "417" ending means a factory float switch is also included.
Can the RF1PY2421STANSJ be installed horizontally?
No. Rheem configures all RF1PY units for vertical upflow only. They can be set up for a front or bottom return.
How big is the RF1PY2421STANSJ wall mount air handler?
Rheem lists it at 21.5" wide, 36" tall and 17" deep, with an 80 lb unit weight. It's built to fit typical apartment and condo closets.
What filter does the RF1PY2421STANSJ use?
Rheem lists a 20" x 20" x 1" filter for the 21" RF1PY cabinet. Rheem also requires 24" of clearance in front of the unit for filter and coil service.
How does the RF1PY compare to the RF2TY wall mount air handler?
The RF1PY uses a two-speed PSC motor with single-stage airflow. The RF2TY adds a five-speed constant torque motor and two-stage airflow, which lifts this match to 15.2 SEER2. See the RA14AY24BJ1NA, RF2TY2421STANSJ system.
What circuit does the RF1PY2421 need with the 8 kW heater?
Rheem lists a 35/40 amp minimum circuit ampacity and 35/40 amp maximum circuit protection at 208/240V for the RF1PY24 with the 8 kW heater.
