3 Ton Rheem 14.3 SEER2 R454B Central Wall Mount Apartment/Condo Type System RA14AY36AJ1NA, RF1PY3624STANSJ
This Rheem Endeavor® Line Classic® system pairs the RA14AY36AJ1NA condenser with the RF1PY3624STANSJ wall mount apartment/condo air handler, AHRI certified at 14.3 SEER2 (#216537532). The RF1PY3624 fits 3 tons of airflow into a 24" wide, 36" tall cabinet with a front or bottom return. It uses low-GWP R-454B with Rheem's PlusOne® Refrigerant Detection System™. It's available with no heat or a factory-installed 5 kW breakered heater.
Is a 3 Ton Air Conditioning System the Right Size?
A 3 ton system provides 36,000 BTU/h of nominal cooling. It's used in larger condos, townhomes and 3-bedroom units around 1,500–1,800 sq. ft. as a general guide.
Large units with lots of glass or high ceilings may need 3 tons, while well-shaded interior units may not. Confirm with a Manual J load calculation.
Ideal for: Larger condos, townhomes and 3-bedroom units with a wall mount air handler closet.
Want higher efficiency? Compare the 3 Ton Rheem 15.2 SEER2 R454B Central Wall Mount Apartment/Condo Type System RA14AY36AJ1NA, RF2TY3624STANSJ with the two-stage RF2TY.
Recommended home sizes are general guidelines only. Actual system requirements depend on insulation, climate, windows, ductwork, occupancy and a proper load calculation. Request free sizing assistance, contact Budget Heating, or call 813-885-7999.
What's Included
| Outdoor Condensing Unit | RA14AY36AJ1NA — 3 Ton Rheem Classic R454B Air Conditioner |
|---|---|
| Indoor Air Handler | RF1PY3624STANSJ Wall Mount Apartment/Condo Air Handler (24" W x 36" H) |
| Application | Cooling-Only Wall Mount Apartment/Condo Split System (Factory Electric Heat Optional) |
| Refrigerant | R-454B (Low-GWP A2L Refrigerant) |
| Compressor | Single-Stage Scroll Compressor |
| Metering Device | Factory-Installed Expansion Valve on Indoor Coil (TXV) |
| Electrical | 208/230V, Single Phase, 60 Hz Condensing Unit — 18 MCA / 30A Max Overcurrent |
| Air Handler Electrical | 208/240V, Single Phase — 4 MCA / 15A Max (No Heat); 5 kW: 25/29 MCA, 25/30A Max |
The RA14AY36AJ1NA condenser is 25" tall on a 33.75" x 33.75" base and weighs 186 lbs (operating), with a 71 dBA sound rating. The RF1PY3624STANSJ air handler measures 24" wide, 36" tall and 21" deep, weighs 95 lbs and takes a 20" x 25" x 1" filter. Complete the install with compatible thermostats and copper line sets and fittings.
Condensing Unit & Air Handler Features
RA14AY36AJ1NA Outdoor Condensing Unit
- 36,000 BTU/h nominal cooling capacity
- Single-stage scroll compressor
- 71 dBA weighted sound power rating
- 7 mm copper tube condenser coil uses less refrigerant
- 116 oz. factory R-454B charge for 15 ft. of line set
- 24" two-blade Swept Wing fan with 1/6 HP motor
- 3/8" liquid and 3/4" suction front-seating service valves
- PlusOne® Expanded Valve Space and Triple Service Access
- Composite base pan, powder-coated paint and rust-resistant screws
- 10-year conditional parts limited warranty (registration required)

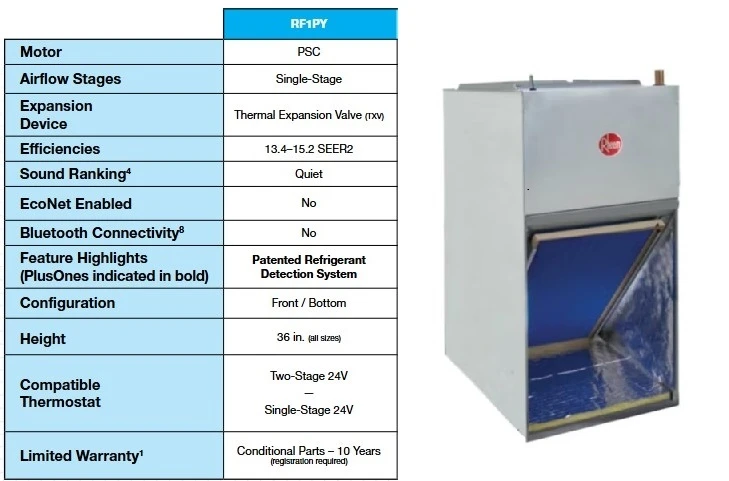

RF1PY3624STANSJ Wall Mount Air Handler (PSC)
- Compact 36" tall wall mount cabinet for apartment and condo closets
- 1/2 HP two-speed PSC blower motor
- PlusOne® Refrigerant Detection System™ with factory-installed A2L sensor
- Front or bottom return, vertical upflow installation
- Aluminum fins bonded to internally grooved aluminum tubing
- 1.0" foil-faced cabinet insulation for quieter operation
- Cabinet air leakage under 2% at 1" H₂O (ASHRAE 193)
- Molded polymer corrosion-resistant condensate drain pan
- 20" x 25" x 1" filter size, 1,200 CFM nominal
- Factory-installed breakered heater options of none or 5 kW
Specifications & Manuals
Documentation includes RA14AY electrical, sound, dimensional and line-size data, condenser installation instructions, the RA14AY brochure, RF1PY dimensions, airflow and heater tables, wall mount air handler installation instructions and the Rheem limited warranty.
Frequently Asked Questions
How much front clearance does the RF1PY3624STANSJ need?
Rheem requires 24" of clearance in front of the RF1PY for filter and coil maintenance. Plan the closet door opening around that.
What size filter fits the RF1PY3624STANSJ?
The 24" RF1PY cabinet takes a 20" x 25" x 1" filter. Check it monthly during heavy cooling season.
What is the most electric heat the RF1PY3624 can have?
Rheem's airflow limits allow up to 10 kW on the 3 ton RF1PY. This system is offered with no heat or a factory-installed 5 kW breakered heater.
Is a drain pan overflow switch available for the RF1PY?
Yes. Rheem lists the RXHK-A01 drain pan overflow switch as an accessory, and models ending in "417" ship with a factory float switch.
How does this compare to the 3 ton RF2TY wall mount system?
The RA14AY36AJ1NA, RF2TY3624STANSJ system uses the same condenser with a two-stage constant torque air handler and is rated 15.2 SEER2, compared with 14.3 SEER2 here.
What blower motor does the RF1PY3624STANSJ use?
Rheem lists a 1/2 HP two-speed PSC motor drawing 2.7 amps, with a 4 amp minimum circuit ampacity and 15 amp circuit protection without heat.
