2 Ton DiamondAir 14.3 SEER2 R32 Heat Pump System D1424HCL32A, D1424HAEAL32A
Built for homes that have outgrown a 1.5 ton unit but don't need a full 3 ton system, the DiamondAir 2 ton heat pump system combines the D1424HCL32A outdoor heat pump and the D1424HAEAL32A air handler in an AHRI-certified match (AHRI #218350147). It is rated at 22,600 BTU/h cooling and 22,200 BTU/h heating at 14.3 SEER2 and uses R-32 refrigerant. This package suits owners of starter homes, townhouses, and rental units who want one all-electric system for summer cooling and winter heating.
Is a 2 Ton Heat Pump System the Right Size?
The 2 ton DiamondAir heat pump covers the gap between small-space systems and mid-size family homes. It suits spaces whose calculated load is too much for a 1.5 ton unit but would leave a 2.5 ton unit cycling on and off too often, which hurts comfort and dehumidification.
Your home's real load depends on attic insulation, glass area and sun exposure, duct leakage, ceiling height, and how many people live there. Two homes with the same floor plan can need different tonnage in different climates. If you are replacing an existing 2 ton system that kept the home comfortable, matching that size is often a sound starting point.
Ideal for: Townhouses, starter homes, two-bedroom single-family houses, rental properties, and larger additions that need efficient electric heating and cooling.
Need more capacity? Step up to the 2.5 Ton DiamondAir R32 Heat Pump System D1430HCL32A, D1430HAEAL32A for homes with additional square footage or higher heat gain.
Recommended sizing is a general guideline only. Actual system requirements depend on insulation, climate, ductwork, windows, occupancy, and home layout. Request free sizing assistance, contact Budget Heating, or call 813-885-7999.
What's Included
| Outdoor Heat Pump | D1424HCL32A — 2 Ton R-32 Heat Pump Condenser |
|---|---|
| Indoor Air Handler | D1424HAEAL32A Air Handler with PSC Blower |
| Application | Residential Split System Heat Pump (Heating & Cooling) |
| Refrigerant | R-32 |
| Compressor | Scroll Compressor with Crankcase Heater |
| Efficiency | 14.3 SEER2 — AHRI #218350147 |
| Electrical | 208-230V, Single Phase, 60 Hz Outdoor Unit |
| Air Handler Electrical | 208-230V, Single Phase, 60 Hz |
Both units are engineered as a matched pair, so the D1424HAEAL32A air handler's 820 CFM blower and aluminum coil are paired correctly with the D1424HCL32A outdoor heat pump. You can add a 5, 8, or 10 kW heat strip, an insulated copper line set, or an RF11 flush kit when you order. If you only need cooling, compare the heat pump with other cooling and heat pump split systems.
Heat Pump & Air Handler Features
D1424HCL32A Outdoor Heat Pump
- 22,600 BTU/h rated cooling capacity
- 22,200 BTU/h rated heating capacity
- Scroll compressor (9.7 RLA)
- Compressor crankcase heater included
- Copper tube, aluminum fin condenser coil
- 1/9 HP PSC condenser fan motor
- 13.5 A minimum circuit ampacity, 20 A max overcurrent protection
- Compact 25" tall cabinet, 23-5/8" footprint
- 60 dB(A) rated sound level
- Uses R-32 refrigerant
D1424HAEAL32A Air Handler
- 820 CFM nominal airflow
- 1/5 HP PSC blower motor, 940 RPM rated
- Metal centrifugal blower wheel
- Aluminum tube-and-fin indoor coil with 9/32" tubing
- 0.5 in. w.c. external static pressure rating
- 2.25 A MCA, 3 A MOP (without heat strip)
- 19-11/16" wide cabinet for tight closets
- 3/8" liquid and 3/4" suction connections
- 3/4" FPT condensate drain
- Optional 5 kW, 8 kW, or 10 kW heat strips
Specifications & Manuals
Product documentation includes outdoor unit and air handler technical specifications, installation manuals, heat strip installation instructions, piston replacement instructions, and DiamondAir warranty information to assist with equipment selection, installation, and service.
Frequently Asked Questions
Who is the 2 ton D1424HCL32A heat pump best suited for?
It is a good match for townhouses, starter homes, and rental properties whose load calculation lands around 2 tons and that want one system for both heating and cooling.
How does the 2 ton system compare to the 1.5 ton D1418 package?
The D1424HCL32A adds roughly 5,600 BTU/h of rated cooling (22,600 vs. 17,000) and 4,600 BTU/h of rated heating (22,200 vs. 17,600). Both use the same 820 CFM air handler cabinet size and outdoor cabinet dimensions.
How much heat does the D1424HCL32A produce?
The manufacturer rates the 2 ton outdoor unit at 22,200 BTU/h of heating. Optional heat strips add supplemental heat for colder days or emergency backup.
What circuit does the D1424HCL32A outdoor unit need?
The spec sheet lists a 13.5 A minimum circuit ampacity and a 20 A maximum overcurrent protection on 208-230V single-phase power. Always follow the unit's nameplate and local electrical code.
How much airflow does the D1424HAEAL32A air handler deliver?
The air handler is rated at 820 CFM nominal airflow at 0.5 in. w.c. external static pressure, driven by a 1/5 HP PSC motor.
What type of compressor is in the 2 ton DiamondAir heat pump?
The D1424HCL32A uses a scroll compressor with a crankcase heater, according to DiamondAir's technical specifications.

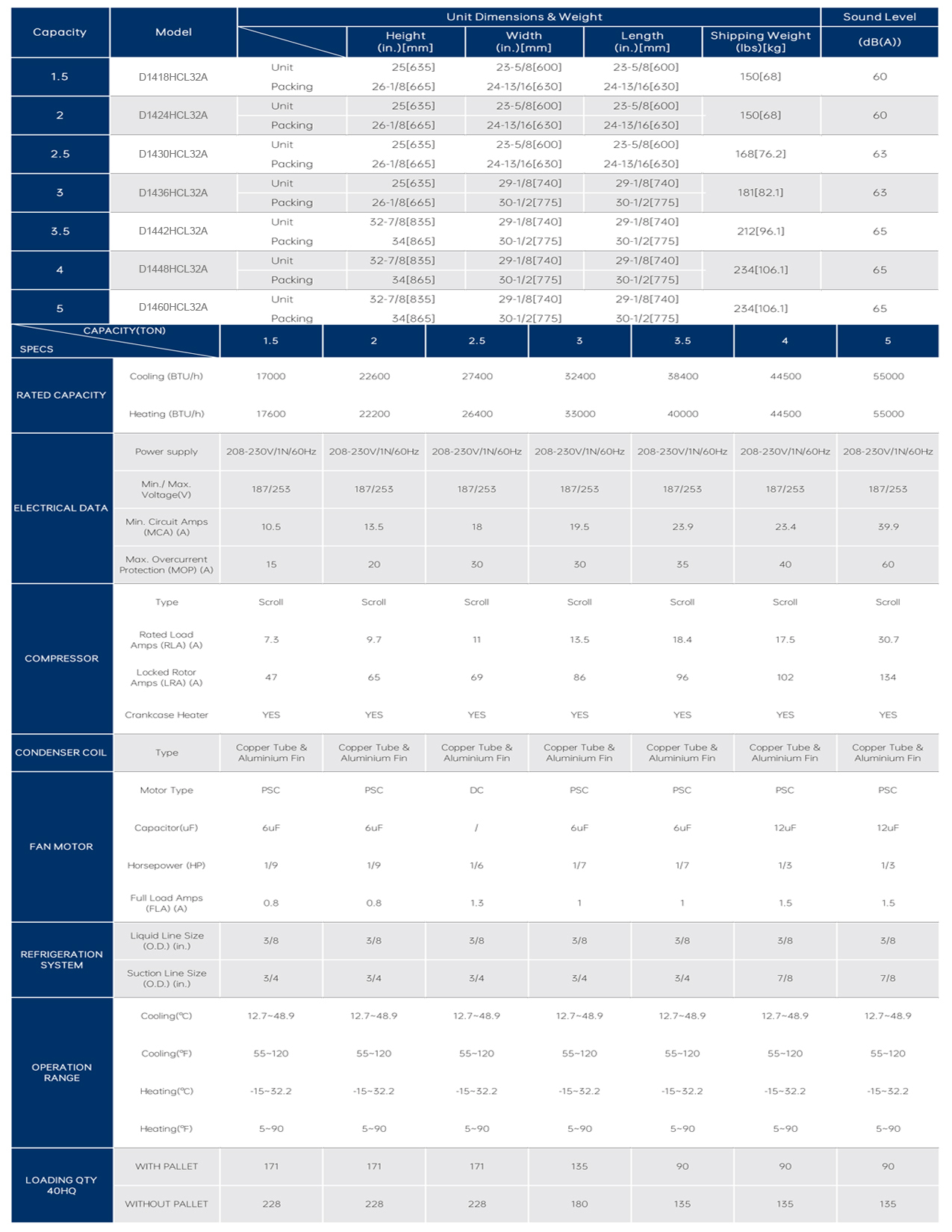

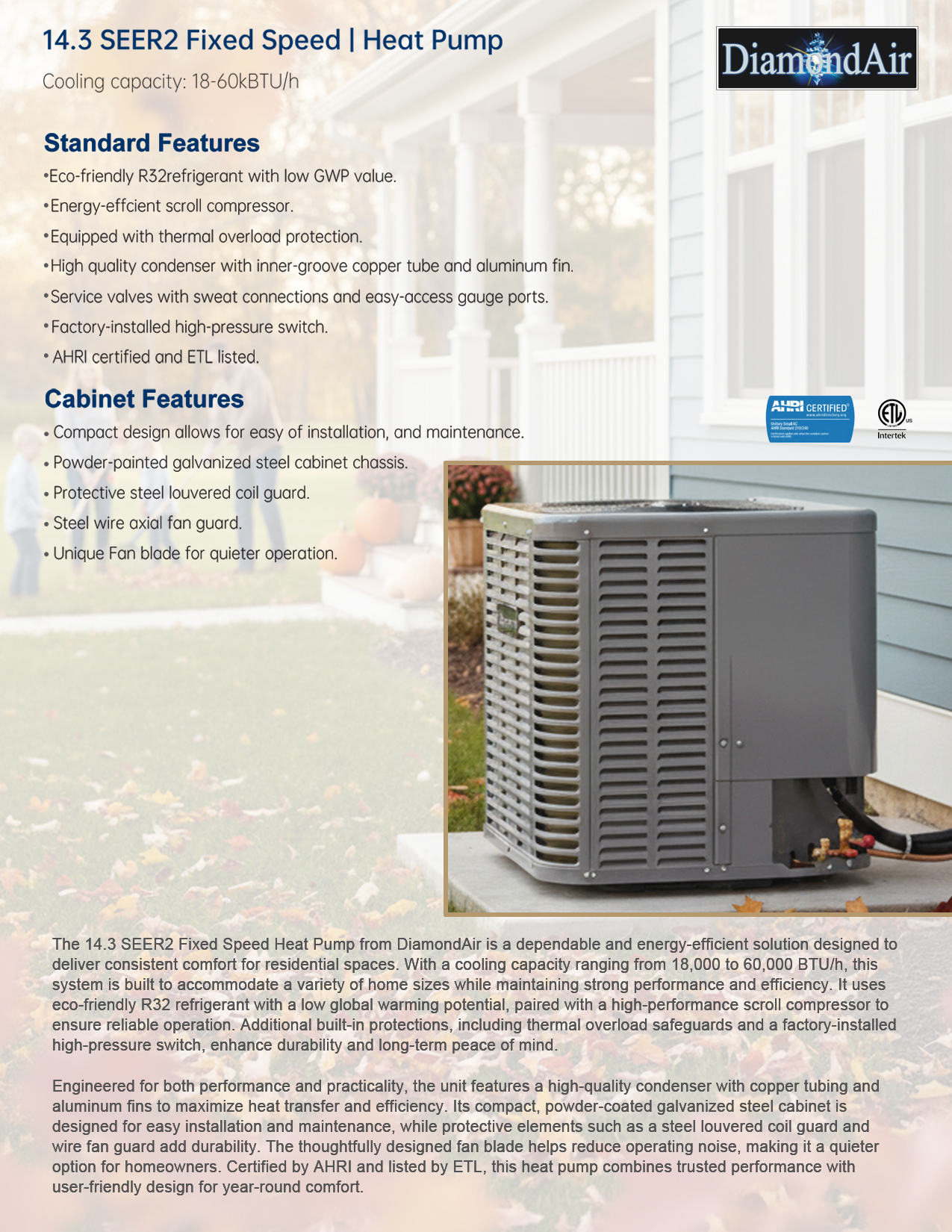

Click On Links Below For Documents:
DiamondAir R32 Heat Pump Condenser Technical Specifications
DiamondAir R32 SEER2 Air Handler Technical Specs
DiamondAir R32 SC, HP Condenser Installation Manual
D1418-D1460HAEAL32A R32 Air Handler Installation Manual
D1418-D1460HAEAL32A R32 Heat Strip Installation Manual
R32 Piston Replacement and Installation Instructions
DiamondAir Warranty Certificate
