DiamondAir Mini Split Wall Mount Thermostat KJR-120L(R1)/EF

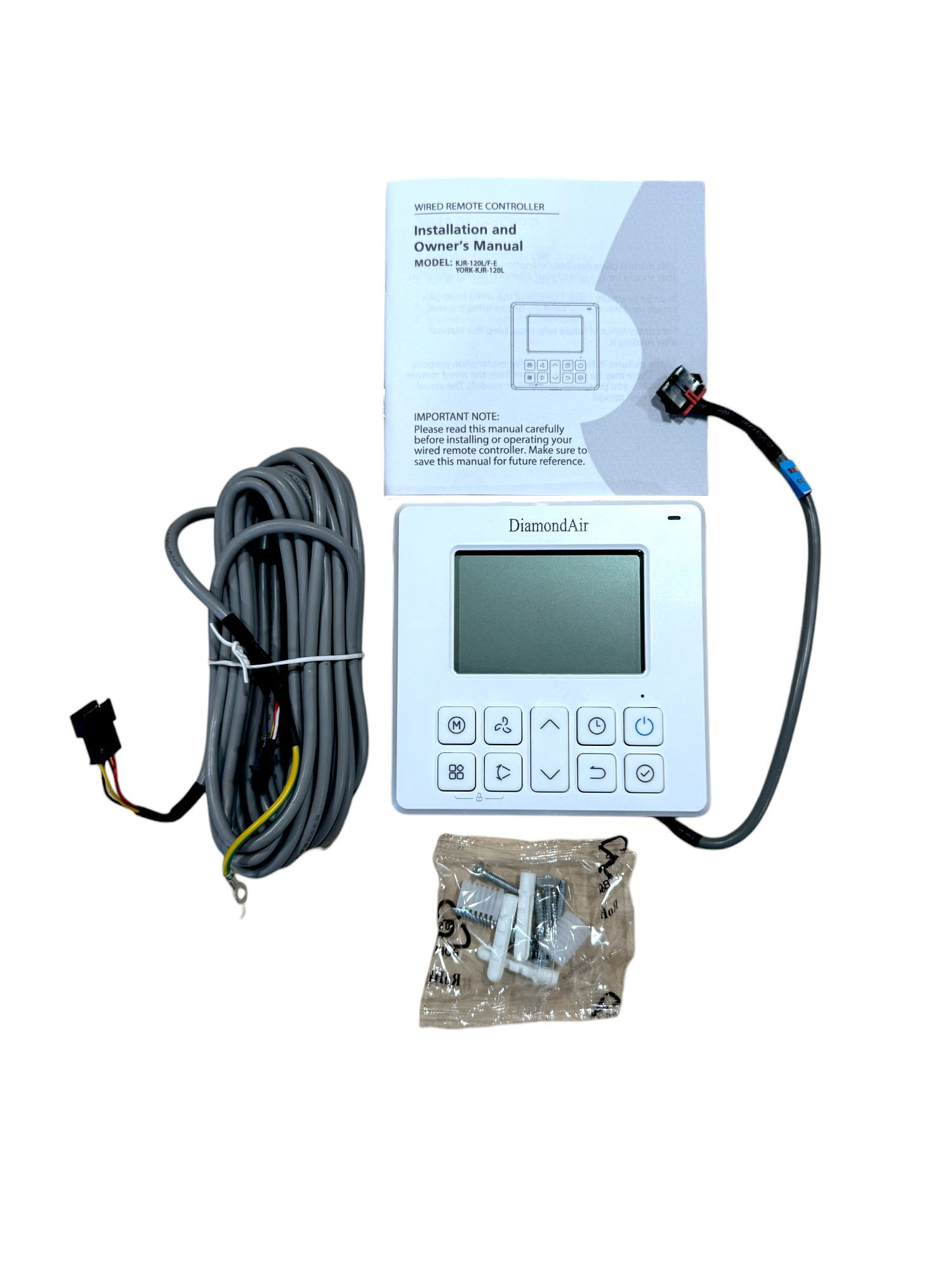

The DiamondAir KJR-120L(R1)/EF is a wired wall-mount controller that lets you run a compatible DiamondAir D20 series mini split from a fixed spot on the wall instead of a handheld remote. It's made for DiamondAir-brand D20 wall-mount air handlers and ceiling cassettes only. That makes it a good fit for offices, rentals, commercial spaces, and homes where remotes tend to get lost, borrowed, or broken. It mounts directly to the wall or onto a standard switch box for a clean, permanent installation. Shop more DiamondAir mini split equipment and parts.
Is the KJR-120L the Right Controller for Your Mini Split?
Before you order, check your indoor unit's model number. The KJR-120L(R1)/EF is listed for the DiamondAir D20 series indoor units: DF2009HMSI, DF2012HMSI, DF2018HMSI, and DF2024HMSI; DF2009HMSI2, DF2012HMSI2, DF2018HMSI2, and DF2024HMSI2; and the DF2009CI, DF2012CI, DF2018CI, and DF2024CI2 ceiling cassettes. It isn't intended for other DiamondAir series or other brands of mini splits.
A wall controller makes the most sense where a handheld remote is a hassle: shared spaces with several users, rentals and short-term stays, ceiling cassettes in offices or retail spaces, and any room where you want the control in a consistent, easy-to-find place. If you'd rather keep handheld control, a replacement remote is also available.
Ideal for: DiamondAir D20 series wall-mount and ceiling cassette owners who want permanent wall control in offices, rentals, light commercial spaces, and busy households.
Prefer a handheld? See the DiamondAir Replacement Remote for D20 SEER2 Series Mini Splits.
Compatibility is based on the DiamondAir indoor unit model numbers listed above. Confirm your indoor unit model before ordering. Request help confirming compatibility, contact Budget Heating, or call 813-885-7999.
What's Included
| Controller | KJR-120L(R1)/EF — DiamondAir Wired Wall Mount Controller |
|---|---|
| Controller Type | Wired wall-mount controller (used in place of the handheld remote) |
| Compatible Wall Units | DF2009HMSI, DF2012HMSI, DF2018HMSI, DF2024HMSI, DF2009HMSI2, DF2012HMSI2, DF2018HMSI2, DF2024HMSI2 |
| Compatible Ceiling Cassettes | DF2009CI, DF2012CI, DF2018CI, DF2024CI2 |
| Brand / Series | DiamondAir D20 Series Only |
| Mounting | Direct wall mount or standard switch box mount |
| Temperature Display | Selectable °F or °C |
| Mounting Hardware | Back plate and mounting screws |
The KJR-120L(R1)/EF connects by wire to a compatible DiamondAir D20 series indoor unit and installs on the wall with its back plate. Follow the installation and owner's manual below for wiring, mounting, and setup.
Controller & Compatibility Features
KJR-120L(R1)/EF Wired Wall Controller
- Permanent wall-mounted control for DiamondAir D20 indoor units
- Replaces day-to-day use of the handheld remote
- Mounts on a wall with one M4 x 25mm screw
- Also installs on a standard 86-type switch box with two M4 x 25mm screws
- Temperature display switches between °F and °C
- Back plate for a clean, flush installation
Compatible DiamondAir D20 Indoor Units
- DF2009HMSI, DF2012HMSI, DF2018HMSI, and DF2024HMSI wall-mount air handlers
- DF2009HMSI2, DF2012HMSI2, DF2018HMSI2, and DF2024HMSI2 wall-mount air handlers
- DF2009CI, DF2012CI, and DF2018CI ceiling cassettes
- DF2024CI2 ceiling cassette
- DiamondAir brand only; not for other series or brands
- Great for cassettes mounted out of reach in commercial spaces
Specifications & Manuals
The installation and owner's manual covers mounting, wiring, and operation of the DiamondAir KJR-120L wired wall controller. Browse more thermostats and controls.
Frequently Asked Questions
Which DiamondAir indoor units work with the KJR-120L(R1)/EF?
It's listed for DiamondAir D20 series units: DF2009HMSI, DF2012HMSI, DF2018HMSI, and DF2024HMSI; the HMSI2 versions of each; and the DF2009CI, DF2012CI, DF2018CI, and DF2024CI2 ceiling cassettes.
Will this controller work with other mini split brands or DiamondAir series?
No. The KJR-120L(R1)/EF is intended for DiamondAir brand D20 series wall-mount air handlers and ceiling cassettes only. Check your indoor unit's model number before ordering.
Does the KJR-120L replace my handheld remote?
Yes. It's designed to control the indoor unit from the wall in place of the remote. If you'd prefer a handheld, the DiamondAir D20 replacement remote is sold separately.
How do I mount the KJR-120L?
Attach the back plate directly to the wall with one M4 x 25mm screw, or to a standard 86-type switch box with two M4 x 25mm screws, then connect the wiring as shown in the manual.
Can I change the display from Fahrenheit to Celsius?
Yes. Press and hold the two-button combination shown in the owner's manual for 3 seconds to switch the temperature display between °F and °C.
Is the KJR-120L a Wi-Fi thermostat?
No. The KJR-120L(R1)/EF is a wired wall controller that connects directly to the indoor unit. Wi-Fi isn't listed as a feature of this controller.


KJR-120L Installation and Owner's Manual
