5 Ton Rheem Select 13.8 SEER2 R454B Single Stage Central System WA14AY60AJ1NA, RH1AY6024STANNJ
This is the largest Rheem Endeavor® Line Select™ RH1AY system. The WA14AY60AJ1NA condenser pairs with the RH1AY6024STANNJ single-stage-airflow air handler, AHRI certified at 13.8 SEER2 (#217232266). It delivers 60,000 BTU/h on low-GWP R-454B, and the condenser comes with a factory-installed crankcase heater. The air handler includes Rheem's PlusOne® Refrigerant Detection System™. It's cooling only, with Rheem electric heat strips up to 20 kW offered.
Is a 5 Ton Air Conditioning System the Right Size?
A 5 ton system provides 60,000 BTU/h of nominal cooling, the top of the residential split-system range. It's often used in homes around 2,500–3,000+ sq. ft. as a loose guide, and in some light commercial spaces.
Confirm the load before choosing 5 tons, since many larger homes are better served by two zoned systems. A Manual J load calculation and duct review make sure one 5 ton system is right.
Ideal for: Large homes, two-story homes on one system and light commercial spaces on a budget.
Want two-stage airflow? See the 5 Ton Rheem Select 13.8 SEER2 R454B Central System WA14AY60AJ1NA, RH2TY6024STANNJ, which pairs the same condenser with the RH2TY.
Recommended home sizes are general guidelines only. Actual system requirements depend on insulation, climate, windows, ductwork, occupancy and a proper load calculation. Request free sizing assistance, contact Budget Heating, or call 813-885-7999.
What's Included
| Outdoor Condensing Unit | WA14AY60AJ1NA — 5 Ton Rheem Select R454B Air Conditioner |
|---|---|
| Indoor Air Handler | RH1AY6024STANNJ Single-Stage Airflow Multipoise Air Handler (24.5" Wide) |
| Application | Cooling-Only Central Air Split System (Electric Heat Kit Optional) |
| Refrigerant | R-454B (Low-GWP A2L Refrigerant) |
| Compressor | Single-Stage Scroll Compressor |
| Metering Device | Factory-Installed Expansion Valve on Indoor Coil (TXV) |
| Electrical | 208/230V, Single Phase, 60 Hz Condensing Unit — 31 MCA / 50A Max Overcurrent |
| Air Handler Electrical | 208/240V, Single Phase — 6 MCA / 15A Max Overcurrent (No Heat Kit) |
The WA14AY60AJ1NA condenser is 45.17" tall on a 35.43" x 35.43" base and weighs 266 lbs (operating), with a 76 dBA sound rating. The RH1AY6024STANNJ air handler is 24.5" wide and 55.5" tall and weighs 161 lbs, with a 3/4 HP motor. Complete the install with compatible thermostats and copper line sets and fittings.
Condensing Unit & Air Handler Features

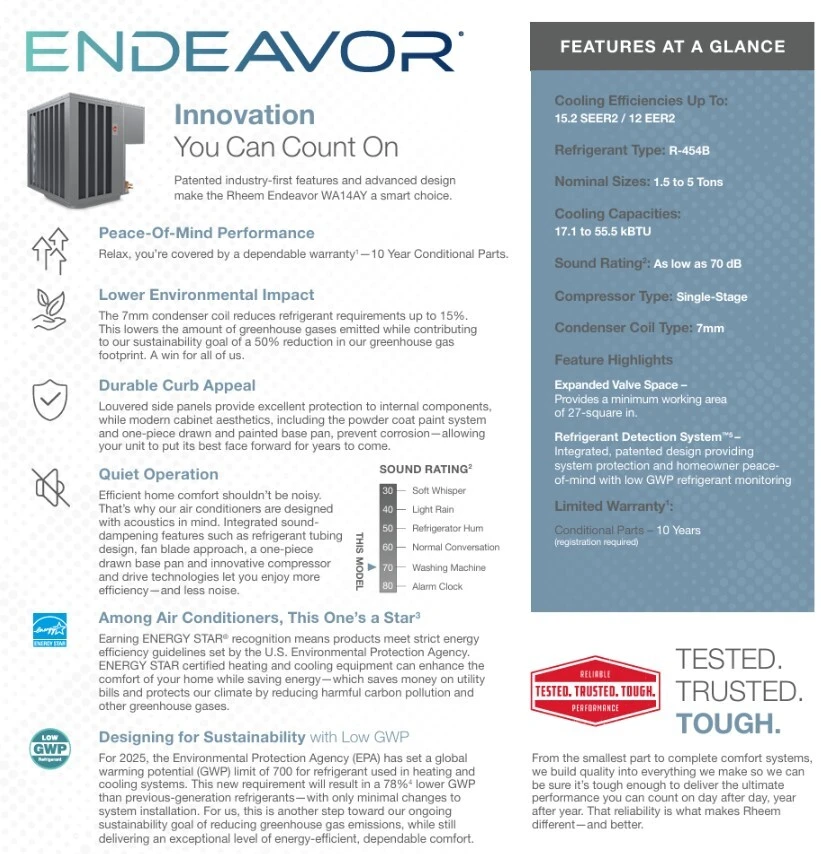

WA14AY60AJ1NA Outdoor Condensing Unit
- 60,000 BTU/h nominal cooling capacity
- Single-stage scroll compressor
- 76 dBA weighted sound power rating
- Optimized 7 mm coil design for airflow and heat transfer
- 192 oz. factory R-454B charge for 15 ft. of line set
- 26" three-blade fan with 1/5 HP motor (4,169 CFM)
- 3/8" liquid and 7/8" suction front-seating service valves
- Factory-installed crankcase heater (44-103663-16)
- Internal pressure relief valve and internal thermal overload
- 10-year conditional parts limited warranty (registration required)
RH1AY6024STANNJ Single-Stage Air Handler
- Single-stage airflow with a constant torque (ECM) motor
- 3/4 HP constant torque motor, 1,200/1,600 CFM nominal airflow
- PlusOne® Refrigerant Detection System™ with factory-installed A2L sensor
- Aluminum fins bonded to internally grooved aluminum tubing
- 4-way convertible: upflow, downflow, horizontal left or right
- 1.0" foil-faced cabinet insulation for quieter operation
- Cabinet air leakage under 2% at 1" H₂O (ASHRAE 193)
- Slide-out blower and four-leg motor mount for easy service
- Front refrigerant and drain connections
- Field-installed heater kits up to 20 kW with UL/cUL-listed breakers
Specifications & Manuals
Documentation includes WA14AY electrical, sound, dimensional and line-size data, the (-)A14AY condenser installation instructions, RH1AY installation instructions, airflow and heater tables and the Rheem limited warranty.
Frequently Asked Questions
Is the RH2TY version of this 5 ton Select system more efficient?
Both are listed at 13.8 SEER2. The WA14AY60AJ1NA, RH2TY6024STANNJ system adds two-stage airflow for comfort, while this RH1AY version keeps the cost lower.
How does this compare to the Classic RA14AY60 system with the RH1AY6024?
The RA14AY60AJ1NA, RH1AY6024STANNJ system has the same air handler and 13.8 SEER2 rating, with Classic features like Triple Service Access and a composite base pan.
How much R-454B ships in the WA14AY60AJ1NA?
Rheem lists a 192 oz. factory charge, sized for 15 ft. of line set. Longer runs need added refrigerant per the installation instructions.
What fan does the WA14AY60AJ1NA use?
Rheem lists a 26" three-blade fan with a 1/5 HP motor, moving 4,169 CFM across the outdoor coil.
How many amps does the RH1AY6024STANNJ blower draw?
Rheem lists 4.7 motor amps at 208/240V, with a 6.0 amp minimum circuit ampacity and 15 amp maximum overcurrent protection without electric heat.
What return air opening does the 24.5" RH1AY6024 need?
Rheem lists a return air opening of 22-7/8" x 19-3/4" for the 24.5" RH1AY cabinet. Size the return plenum or filter base to match.
