3 Ton Rheem 17 SEER2 R454B Inverter Heat Pump System RP17AY36AJVCA, RH2TY3617STANNJ
This 3-ton matched Rheem system combines the inverter-driven RP17AY36AJVCA condenser with the RH2TY3617STANNJ two-stage air handler for R-454B refrigerant, one of the most practical pairings for the average family home. The inverter compressor continuously matches output to the load while the constant-torque ECM air handler delivers steady airflow, producing a quiet, AHRI-certified 17 SEER2 system with strong dehumidification and up to 9.5 HSPF2 heating.
Is the 3 Ton System the Right Size?
A 3-ton system commonly serves mid-size homes of roughly 1,300 to 1,800 square feet, but the actual requirement depends on the home's heat gain and heat loss more than its floor area.
Duct design, sun exposure, occupancy, and humidity load all shift the calculation. The inverter-driven RP17AY36AJVCA modulates to handle both mild days and design conditions, yet a Manual J calculation remains the best way to confirm a nominal 3-ton system fits your home.
Ideal for: typical three-bedroom homes, moderate two-story layouts, and households that want a complete, efficient inverter system with excellent humidity control.
Need more capacity? Step up to the 4 Ton Rheem RP17AY48AJVCA Heat Pump System for larger homes.
Recommended sizing ranges are general guidelines only. Actual system requirements depend on insulation, climate, ductwork, window load, and air-sealing. Request free sizing assistance, contact Budget Heating, or call 813-885-7999.
What's Included
| Outdoor Condenser | RP17AY36AJVCA – 3 Ton Inverter-Driven Heat Pump |
|---|---|
| Indoor Air Handler | RH2TY3617STANNJ – 3 Ton Two-Stage Constant-Torque ECM |
| System Efficiency | 17 SEER2 (AHRI-certified matched system) |
| Nominal Capacity | 3 Tons (36,000 BTU class) |
| Heating Output | Up to 34,000 BTU/h @ 47°F / up to 9.5 HSPF2 |
| Refrigerant | R-454B (A2L, low GWP) |
| Electric Heat Kit | Field-installed (5/8/10 kW) – sold separately |
The RH2TY3617STANNJ multi-position air handler installs in upflow, downflow, or horizontal orientation and is built for R-454B with a factory A2L refrigerant-detection location. The outdoor unit ships with a bi-flow liquid-line filter drier and the integrated PlusOne Refrigerant Detection System.
Condenser & Air Handler Features

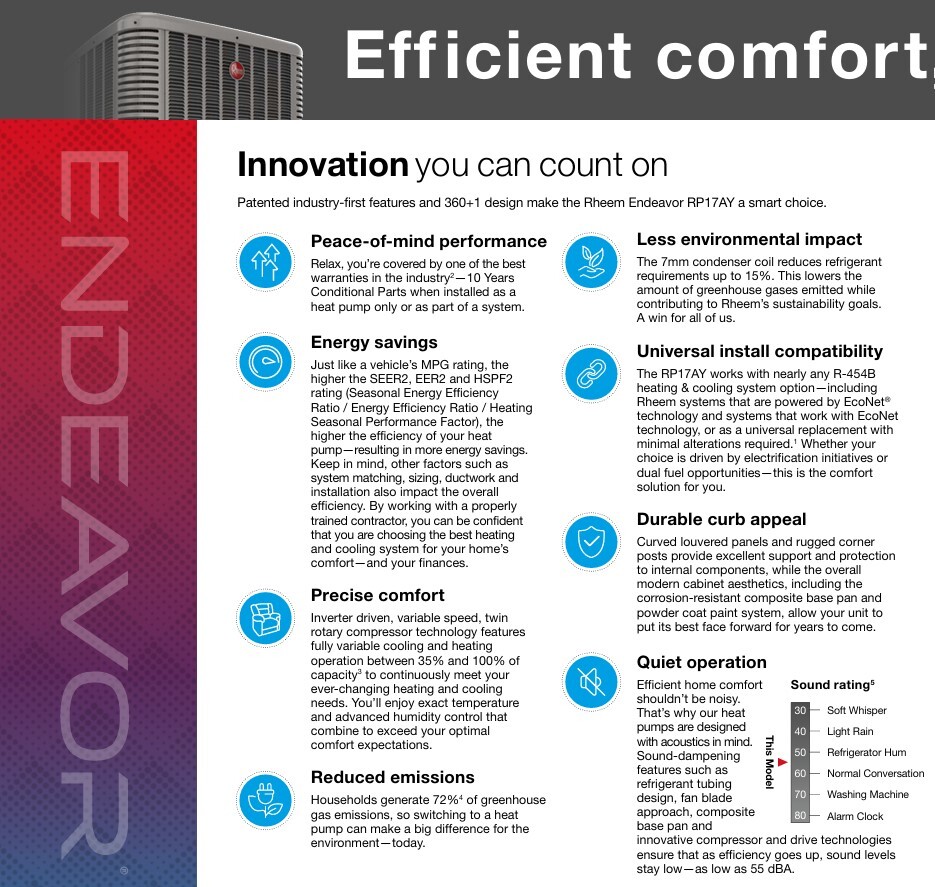

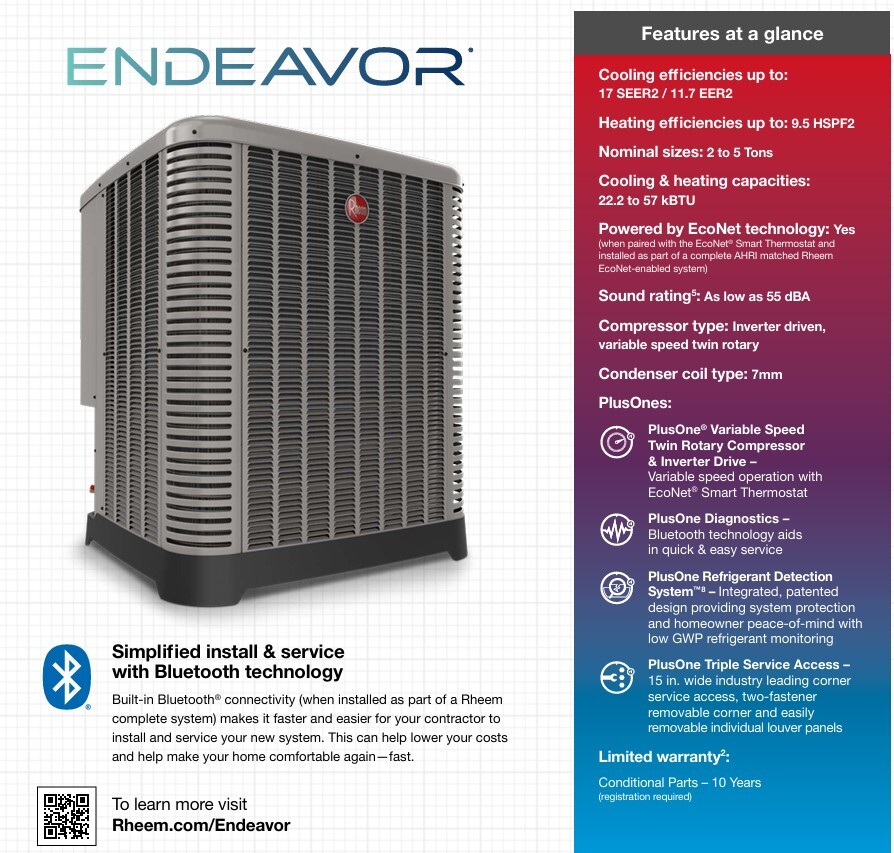

RP17AY36AJVCA Condenser
- Inverter-driven PlusOne variable-speed compressor for tight comfort control
- Sound levels as low as 58 dBA for neighbor-friendly operation
- 7mm copper coil and brushless DC condenser motor for efficiency
- EcoNet-capable control with PlusOne Diagnostics & Bluetooth
- 10-year conditional parts warranty with registration
RH2TY3617STANNJ Air Handler
- Two-stage constant-torque ECM motor for efficient, consistent airflow
- Multi-position cabinet for flexible installation orientations
- Engineered for R-454B with a factory A2L refrigerant-detection location
- Accepts field-installed electric heat kits for supplemental heat
- Non-communicating design paired with a standard 24V thermostat
With the non-EcoNet RH2TY air handler, this system runs on a conventional 24V thermostat, and we recommend the ecobee Smart Thermostat Lite (EB-STATE7P-01). The inverter condenser still delivers full variable-speed operation via the Rheem algorithm with the utility 1 & 2 jumpers installed, or two-stage operation without them. For full EcoNet communicating control and the Rheem EcoNet Smart Thermostat, choose the variable-speed RH2VY3617STACNJ EcoNet air handler instead.
Specifications & Manuals
Product documentation includes condenser and air handler technical specifications, installation instructions, the R-454B charge chart, and warranty information to assist with equipment selection, installation, and service.
Frequently Asked Questions
What are the two components of the 3-ton RP17AY36 system?
The system includes the RP17AY36AJVCA inverter-driven outdoor condenser and the RH2TY3617STANNJ two-stage constant-torque ECM air handler.
Why pair an inverter condenser with a two-stage ECM air handler?
It offers the efficiency and modulation of inverter cooling and heating at a lower system cost than a fully communicating variable-speed setup, making it a strong value for many homes.
What thermostat should I use with the 3-ton RH2TY system?
Since the RH2TY3617STANNJ is not EcoNet enabled, use a standard 24V thermostat. We recommend the ecobee Smart Thermostat Lite, model EB-STATE7P-01.
Can I upgrade this 3-ton system to full EcoNet control later?
To gain full EcoNet communicating operation you would pair the RP17AY36AJVCA condenser with a variable-speed EcoNet air handler such as the RH2VY3617STACNJ and add the Rheem EcoNet Smart Thermostat.
Is the RH2TY3617STANNJ air handler multi-position?
Yes. It installs in upflow, downflow, or horizontal orientation, which makes it adaptable to closets, attics, garages, and mechanical rooms.
Does this 3-ton system use R-454B refrigerant?
Yes. Both the condenser and air handler are engineered for the low-GWP A2L refrigerant R-454B and must be installed with R-454B-approved components.
