2 Ton Rheem 14.3 SEER2 R454B Single Stage Central System RA14AY24BJ1NA, RH1AY2417STANNJ
This 2 ton Rheem Endeavor® Line Classic® system matches the second-design RA14AY24BJ1NA condenser with the RH1AY2417STANNJ single-stage-airflow air handler, AHRI certified at 14.3 SEER2 (#217232183). It's a no-frills, dependable R-454B package for starter homes, larger condos and rentals. The air handler includes Rheem's PlusOne® Refrigerant Detection System™, and the condenser uses the service-friendly Classic cabinet. It's cooling only, with optional Rheem electric heat strips.
Is a 2 Ton Air Conditioning System the Right Size?
Two tons (24,000 BTU/h) fits moderate cooling loads, often 2-bedroom homes, larger condos and starter homes around 900–1,200 sq. ft. as a general reference. Two homes with the same square footage can still need different tonnage.
Sun exposure, ceiling height, insulation and duct condition all shape the real load. Replacing an old unit with the same size without checking can carry forward an original sizing mistake. A Manual J load calculation confirms 2 tons.
Ideal for: Starter homes, 2-bedroom houses, larger condos and rental properties.
Need more capacity? Step up to the 2.5 Ton Rheem 14.3 SEER2 R454B Single Stage Central System RA14AY30AJ1NA, RH1AY3617STANNJ for a larger load.
Recommended home sizes are general guidelines only. Actual system requirements depend on insulation, climate, windows, ductwork, occupancy and a proper load calculation. Request free sizing assistance, contact Budget Heating, or call 813-885-7999.
What's Included
| Outdoor Condensing Unit | RA14AY24BJ1NA — 2 Ton Rheem Classic R454B Air Conditioner (B Design) |
|---|---|
| Indoor Air Handler | RH1AY2417STANNJ Single-Stage Airflow Multipoise Air Handler (17.5" Wide) |
| Application | Cooling-Only Central Air Split System (Electric Heat Kit Optional) |
| Refrigerant | R-454B (Low-GWP A2L Refrigerant) |
| Compressor | Single-Stage Scroll Compressor |
| Metering Device | Factory-Installed Expansion Valve on Indoor Coil (TXV) |
| Electrical | 208/230V, Single Phase, 60 Hz Condensing Unit — See Rating Plate (B Design) |
| Air Handler Electrical | 208/240V, Single Phase — 3 MCA / 15A Max Overcurrent (No Heat Kit) |
The RA14AY24BJ1NA condenser is the second design of Rheem's 2 ton RA14AY. Check the unit rating plate for its exact electrical data. The RH1AY2417STANNJ air handler is 17.5" wide and 42.5" tall and weighs 92 lbs, with a 1/3 HP constant torque motor. Complete the install with compatible thermostats and copper line sets and fittings.
Condensing Unit & Air Handler Features

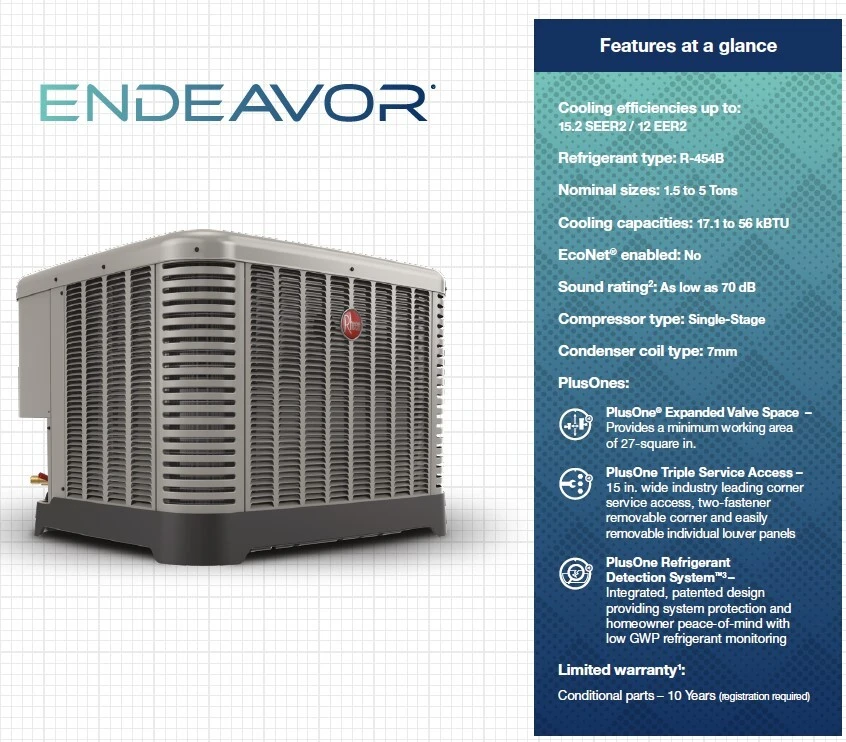

RA14AY24BJ1NA Outdoor Condensing Unit
- 24,000 BTU/h nominal cooling capacity
- Single-stage scroll compressor
- 7 mm copper tube condenser coil uses less refrigerant
- 3/8" liquid and 3/4" suction front-seating service valves
- PlusOne® Expanded Valve Space and Triple Service Access
- Composite base pan, powder-coated paint and rust-resistant screws
- Field-installed filter drier and external gauge ports
- 10-year conditional parts limited warranty (registration required)
RH1AY2417STANNJ Single-Stage Air Handler
- Single-stage airflow with a constant torque (ECM) motor
- 1/3 HP multi-speed motor, 600/800 CFM nominal airflow
- PlusOne® Refrigerant Detection System™ with factory-installed A2L sensor
- Aluminum fins bonded to internally grooved aluminum tubing
- 4-way convertible: upflow, downflow, horizontal left or right
- 1.0" foil-faced cabinet insulation for quieter operation
- Cabinet air leakage under 2% at 1" H₂O (ASHRAE 193)
- Slide-out blower and factory leak-tested coil
- Expansion valve on indoor coil for AC or heat pump use
- Field-installed heater kits in 5, 8 and 10 kW with UL/cUL-listed breakers
Specifications & Manuals
Documentation includes RA14AY electrical, sound, dimensional and line-size data, condenser and air handler installation instructions, the RA14AY brochure, RH1AY airflow and heater tables and the Rheem limited warranty.
Frequently Asked Questions
What does the "B" in RA14AY24BJ1NA mean?
It's Rheem's major series code, marking a second design of the 2 ton RA14AY. The linked spec sheet lists the first-design RA14AY24A, so confirm electrical and charge data from the unit's rating plate.
Is there a two-stage airflow version of this 2 ton system?
Yes. The 2 ton RA14AY24BJ1NA, RH2TY2417STANNJ system uses the same condenser with a two-stage-airflow RH2TY air handler and a higher SEER2 match.
Why doesn't the 2 ton RA14AY use the Swept Wing fan?
Rheem's spec sheet notes that Swept Wing fan technology does not apply to the 1.5 and 2 ton RA14AY models. The 2.5 ton and larger sizes use it.
Does the RH1AY2417STANNJ have a slide-out blower?
Yes. Rheem builds the RH1AY with a slide-out blower and a four-leg motor mount, which makes blower and motor service easier.
What thermostat do I need for this single-stage system?
Any standard 24V thermostat with one cooling stage will run it. Rheem's PlusOne® Refrigerant Detection System™ is compatible with any 24V thermostat.
Can I buy the RA14AY24BJ1NA condenser by itself?
Yes. The 2 ton Rheem RA14AY24BJ1NA condenser is available on its own for use with a matched indoor section.
