2 Ton Goodman R32 Ceiling Mount Pancake Air Handler with 8 kW Heat Strip, ACST24LU1308AA
The Goodman ACST24LU1308AA is the middle heat option in the 2-ton ACST lineup. It combines 24,000 BTU/h of nominal R-32 cooling with an 8 kW heat strip that comes factory installed, producing about 25,000 BTU/h of electric heat at 230V. It suits contractors and homeowners who want 2 tons of cooling with dependable heat for winter mornings in a ceiling space too shallow for a standard air handler. Think condos, townhomes, and single-story homes with the unit above a hallway or utility ceiling.
Is a 2 Ton Air Handler with 8 kW Heat the Right Size?
This model has the same 2-ton coil, blower (up to about 934 CFM), and L cabinet as the other ACST24 versions. The heat strip is what sets it apart. At 8 kW, it can handle much of the heating load on a straight AC system in a moderate climate, or provide strong backup behind a heat pump when outdoor temperatures fall.
The right heater size depends on insulation levels, glass area, air leakage, and your local winter design temperature. Wiring matters too: the 8 kW model uses a 45A maximum breaker at 230V and 40A at 208V. If your home loses a lot of heat or sees hard freezes, consider the 10 kW model.
Ideal for: Condos, townhomes, and single-story homes in moderate climates that need 2 tons of cooling and a balanced amount of electric heat from a ceiling mount air handler.
Need more capacity? Step up to the 2 Ton Goodman ACST24LU1310AA with 10 kW Heat for the most electric heat available at 2 tons.
Recommended applications are general guidelines only. Actual system requirements depend on home size, insulation, climate, ductwork, and the matched outdoor unit. Request free sizing assistance, contact Budget Heating, or call 813-885-7999.
What's Included
| Air Handler | Goodman ACST24LU1308AA — 2 Ton Ceiling Mount Pancake Air Handler |
|---|---|
| Heat Strip | 8 kW Electric Heat, Factory Installed (approx. 25,000 BTU/h at 230V) |
| Cooling Capacity | 24,000 BTU/h Nominal (2 Ton) |
| Refrigerant | R-32 |
| Metering Device | Factory-Installed, Fully Adjustable TXV |
| Electrical | 208/230V, Single Phase, 60 Hz |
| MCA / Max Breaker | 44.2A / 45A at 230V; 38.6A / 40A at 208V |
| Max Airflow | Approx. 934 CFM (T4/T5, 0.1" ESP) |
| Line Connections | 3/8" Liquid, 3/4" Suction |
| Condensate Drain | 3/4" FPT, Primary & Secondary |
Goodman installs the 8 kW heater kit, TXV, R-32 sensor, pull-type disconnect, and mounting brackets before the ACST24LU1308AA leaves the factory. Add a matching ceiling access panel from the options above, and pair the unit with a thermostat from our thermostats and controls collection that supports electric heat.
Air Handler & Heat Strip Features
ACST24LU1308AA Ceiling Mount Air Handler
- 24,000 BTU/h (2 ton) R-32 cooling in a pancake cabinet
- Galvanized-steel cabinet only 6½" tall
- Up to about 934 CFM; 743 CFM at 0.5" ESP on high taps
- Factory TXV, fully adjustable
- Factory-installed R-32 refrigerant sensor
- High-efficiency aluminum tube and fin coil
- 3/4" FPT primary and secondary drain connections
- High-temperature plastic drain pan
- Configurable front or bottom return
- AHRI Certified and ETL Listed
Factory-Installed 8 kW Electric Heat Strip
- 8 kW heater kit installed by Goodman, ready to wire
- Approx. 25,000 BTU/h of electric heat at 230V
- The middle heat option for the 2-ton ACST
- Sequence-controlled element staging
- Rust-resistant nickel chromium elements
- 45A max breaker at 230V; 40A at 208V
- 44.2A MCA at 230V; 38.6A at 208V
- Factory-installed pull-type disconnect
- Balanced heat for moderate-climate homes
- Compare more air handlers with electric heat strips
Specifications & Manuals
Review the 8 kW heater electrical table, 2-ton airflow at each speed tap, drain and line connection locations, and parts breakdowns for the ACST24LU1308AA.
Frequently Asked Questions
How many BTUs of heat does the 8 kW strip in the ACST24LU1308AA provide?
Goodman rates the factory-installed 8 kW heater at about 25,000 BTU/h at 230V.
Where does the ACST24LU1308AA fit among the 2-ton heat options?
It's the middle choice: more heat than the 5 kW ACST24LU1305AA and less amperage than the 10 kW ACST24LU1310AA.
Why is the max breaker different at 208V and 230V?
Heater current changes with supply voltage, so Goodman publishes separate ratings: 45A maximum at 230V and 40A maximum at 208V for this model.
Where does the condensate drain connect?
The unit has 3/4" FPT primary and secondary drain connections on a high-temperature plastic drain pan. Follow local code for secondary drainage or an overflow safety device.
What is the cabinet made of?
Goodman builds the ACST cabinet from galvanized steel, with factory-installed casing and mounting brackets.
Is the ACST24LU1308AA AHRI certified?
Yes. Goodman lists the ACST series as AHRI Certified and ETL Listed. Check the AHRI directory for the specific outdoor unit match you plan to use.

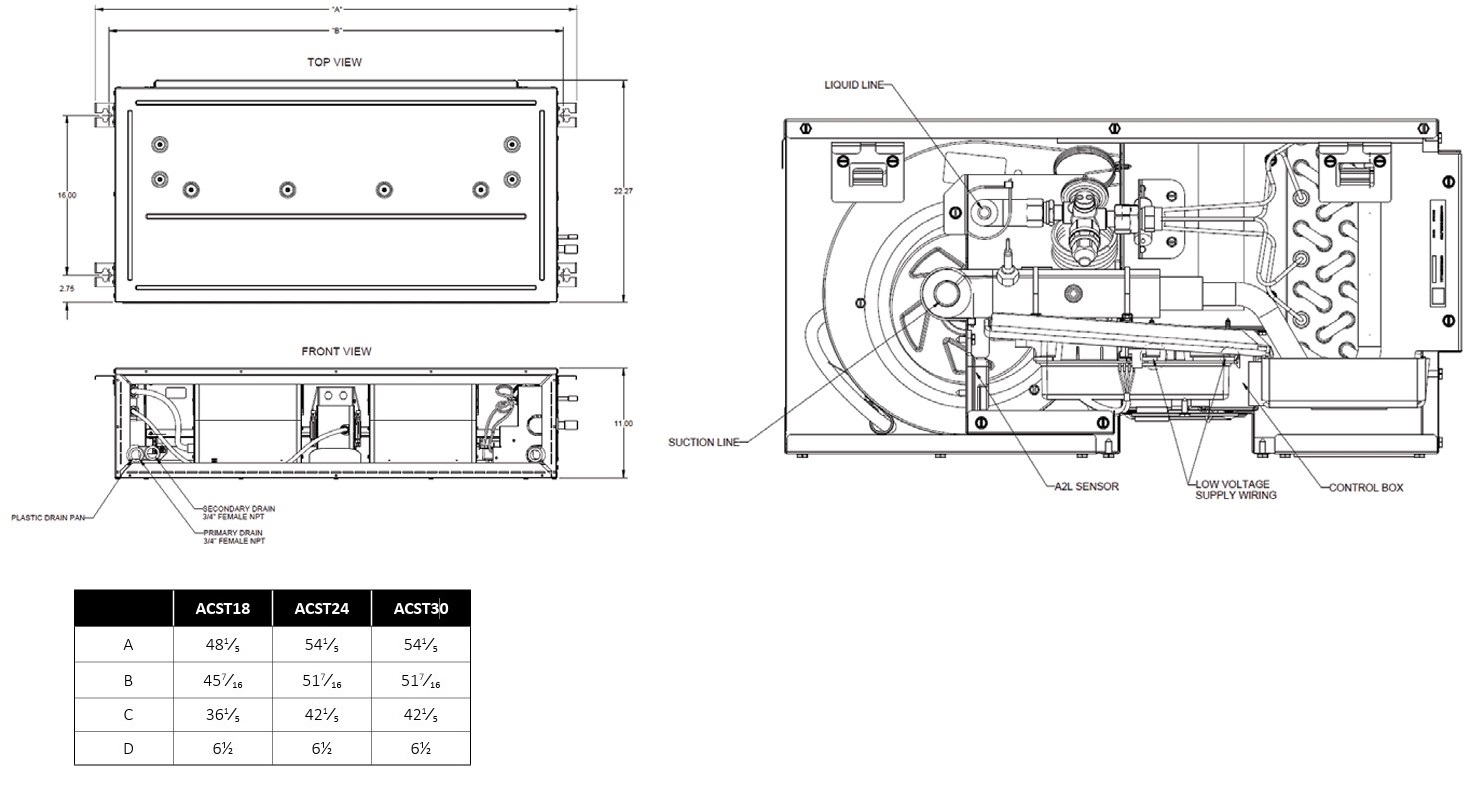

ACST Technical Specifications
