2.5 Ton Rheem Select 14.3 SEER2 R454B Single Stage Central System WSA14AY30AJ1NA, RH1AY3617STANNJ
This Rheem Endeavor® Line Select™ Series iC system is the largest small footprint match with the RH1AY air handler. It pairs the WSA14AY30AJ1NA condenser with the RH1AY3617STANNJ single-stage-airflow air handler, AHRI certified at 14.3 SEER2 (#217486292). The condenser delivers 30,000 BTU/h from a 27.63" x 27.63" base and is the quietest WSA14AY at 74 dBA. It uses low-GWP R-454B with Rheem's PlusOne® Refrigerant Detection System™. It's cooling only, with Rheem electric heat strips up to 15 kW offered.
Is a 2.5 Ton Air Conditioning System the Right Size?
A 2.5 ton system provides 30,000 BTU/h of nominal cooling. It's commonly used in 2- to 3-bedroom homes around 1,200–1,500 sq. ft. as a rough guide, though climate and construction shift that range.
West-facing glass, vaulted ceilings and leaky attic ducts can push a home toward 3 tons, while a tight home may need less. A Manual J load calculation gives a reliable answer before you buy.
Ideal for: 2- to 3-bedroom homes, townhomes and infill houses with small pads.
Need more capacity? For more capacity, see the 3 Ton Rheem Select 14.3 SEER2 R454B Single Stage Central System WA14AY36AJ1NA, RH1AY3617STANNJ, which uses the same air handler.
Recommended home sizes are general guidelines only. Actual system requirements depend on insulation, climate, windows, ductwork, occupancy and a proper load calculation. Request free sizing assistance, contact Budget Heating, or call 813-885-7999.
What's Included
| Outdoor Condensing Unit | WSA14AY30AJ1NA — 2.5 Ton Rheem Select Small Footprint R454B Air Conditioner |
|---|---|
| Indoor Air Handler | RH1AY3617STANNJ Single-Stage Airflow Multipoise Air Handler (17.5" Wide) |
| Application | Cooling-Only Central Air Split System (Electric Heat Kit Optional) |
| Refrigerant | R-454B (Low-GWP A2L Refrigerant) |
| Compressor | Single-Stage Scroll Compressor |
| Metering Device | Factory-Installed Expansion Valve on Indoor Coil (TXV) |
| Electrical | 208/230V, Single Phase, 60 Hz Condensing Unit — 16 MCA / 25A Max Overcurrent |
| Air Handler Electrical | 208/240V, Single Phase — 3 MCA / 15A Max Overcurrent (No Heat Kit) |
The WSA14AY30AJ1NA condenser is 32.25" tall on a 27.63" x 27.63" base and weighs 192 lbs (operating). The RH1AY3617STANNJ air handler is 17.5" wide and 42.5" tall and weighs 96 lbs, with a 1/2 HP constant torque motor. Complete the install with compatible thermostats and copper line sets and fittings.
Condensing Unit & Air Handler Features
WSA14AY30AJ1NA Outdoor Condensing Unit
- 30,000 BTU/h nominal cooling capacity
- Single-stage scroll compressor
- 74 dBA weighted sound power rating
- Optimized 7 mm coil design for airflow and heat transfer
- 124 oz. factory R-454B charge for 15 ft. of line set
- 22" two-blade fan with 1/6 HP motor (2,546 CFM)
- 3/8" liquid and 3/4" suction front-seating service valves
- One-piece drawn and painted base pan lifts the coil off the pad
- External gauge ports and field-installed filter drier
- 10-year conditional parts limited warranty (registration required)
RH1AY3617STANNJ Single-Stage Air Handler
- Single-stage airflow with a constant torque (ECM) motor
- 1/2 HP multi-speed motor, 1,000/1,200 CFM nominal airflow
- PlusOne® Refrigerant Detection System™ with factory-installed A2L sensor
- Aluminum fins bonded to internally grooved aluminum tubing
- 4-way convertible: upflow, downflow, horizontal left or right
- 1.0" foil-faced cabinet insulation for quieter operation
- Cabinet air leakage under 2% at 1" H₂O (ASHRAE 193)
- Slide-out blower and four-leg motor mount for easy service
- Front refrigerant and drain connections
- Field-installed heater kits up to 15 kW with UL/cUL-listed breakers
Specifications & Manuals

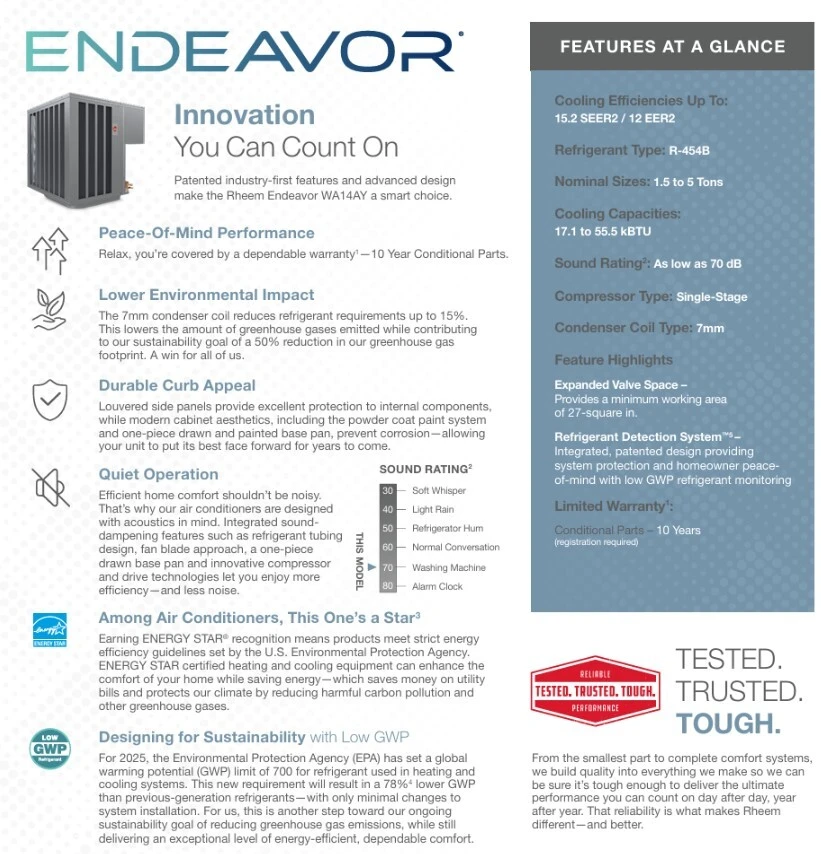

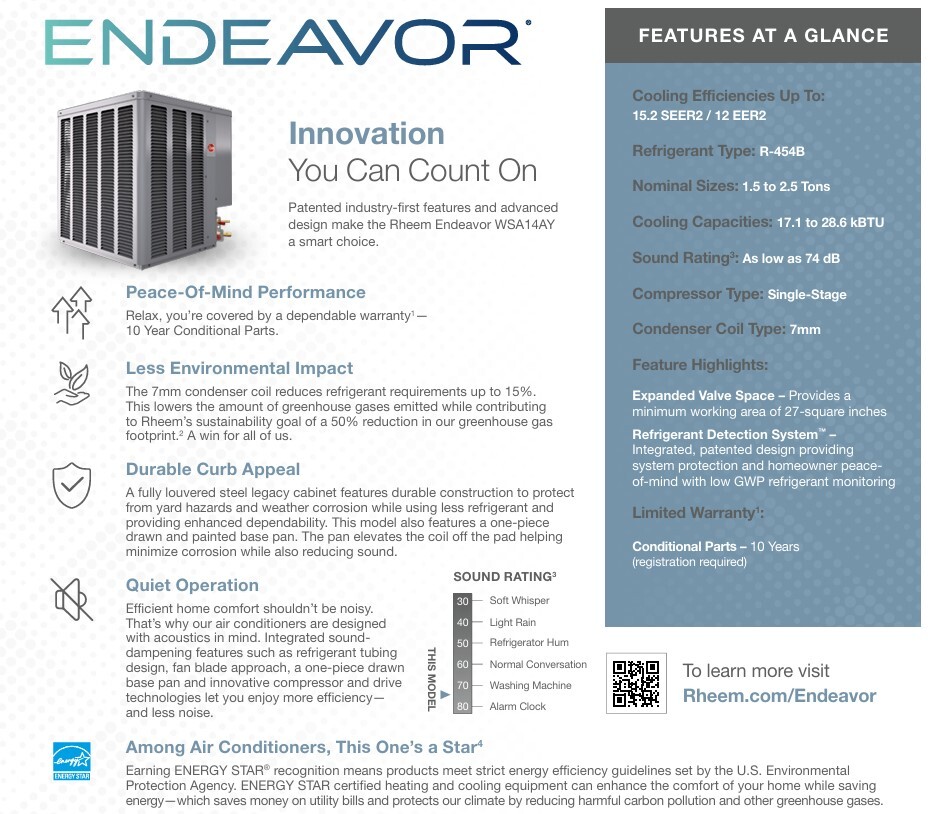

Documentation includes WSA14AY electrical, sound, dimensional and line-size data, condenser and air handler installation instructions, the WSA14AY brochure, RH1AY airflow and heater tables and the Rheem limited warranty.
Frequently Asked Questions
How does this compare to the 2.5 ton small footprint system with the RH2TY?
The WSA14AY30AJ1NA, RH2TY3617STANNJ system uses the same condenser with a two-stage-airflow air handler and is rated 15.2 SEER2. This RH1AY match is rated 14.3 SEER2.
What fan does the WSA14AY30AJ1NA use?
Rheem lists a 22" two-blade fan with a 1/6 HP motor, moving 2,546 CFM at 825 RPM.
Does the WSA14AY30AJ1NA hold more refrigerant than the smaller sizes?
Yes. It ships with 124 oz. of R-454B, compared with 103 oz. for the 1.5 ton and 101 oz. for the 2 ton WSA14AY.
Is a 15 kW heat strip offered for the small footprint 2.5 ton system?
Yes. Along with 5, 8 and 10 kW kits, we offer a 15 kW breakered heat strip (RXBH-1724A15J) for this package.
What size supply duct connection does the RH1AY3617STANNJ have?
Rheem lists a 16" supply duct dimension for the 17.5" RH1AY3617, with supply duct flanges provided as standard.
Can the RH1AY3617STANNJ work with a heat pump later?
The RH1AY coil has an expansion valve that Rheem rates for air conditioning or heat pump operation. Any future heat pump must be an AHRI-matched model.
