In Line Voltage Monitor ICM493-60A Protect Against Brownouts, Lightning, Power Outages, Startup, Shorts 60amp ICM Products
The ICM493-60A is a single-phase line voltage monitor with surge arresters. Built in 60A Contactor. Housed in a NEMA Rated 3R enclosure for outdoor installations. UL Recognized. Installs easily between the disconnect and the condensing unit. Perfect Application for Mini-Splits or other valuable, single-phase equipment.
Protects against:
Protects against:
- Brownouts
- Lightning strikes
- Power outages and recoveries
- Startup of larger equipment
- Power grid faults
- Short circuits
The ICM493-60A has a built-in 60A contactor. It can be reset by holding for 5 seconds to clear fault memory, and 2 seconds to reset the unit.
The ICM493-60A is ideal for:
- Ductless Mini-splits
- Inverter compressors
- Any HVAC system where local utilities experience brown outs, outages, rolling black outs, inconsistent power
Features
- Input: 195-264 VAC, 50/60 Hz
- Voltage: 240V
- FLA: 60A
- LRA: 360A
- Operating Temperature: -40°F to 167°F (-40°C to 75°C)
- Storage temperature: -40°F to 185°F (-40°C to 80°C)
- LCD operating temperature: -4°F to 167°F (-20°C to 75°C)
- Mounting: Four mounting holes in back of enclosure
- Enclosure: Weather resistant, NEMA 3R rated for outdoor installation
- Dimensions: 8"L x 10"W x 6"H
- Anti-short cycle time delay: 0.5-10 minutes
- Number of trials: 1-5, auto
- Number of movistors: 0-5
Technical Specifications
Installation Instructions
Limited Lifetime Warranty Document

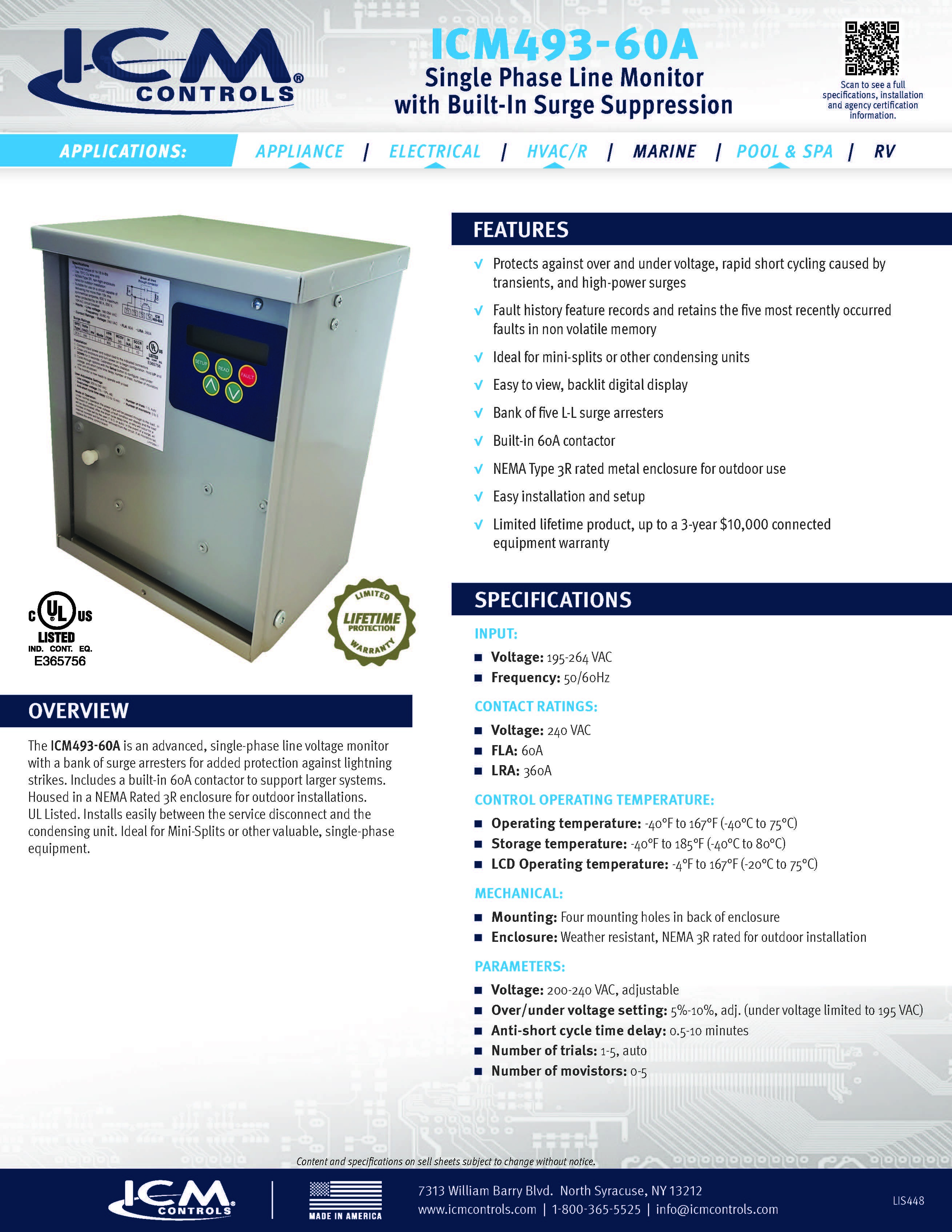

Brochure
