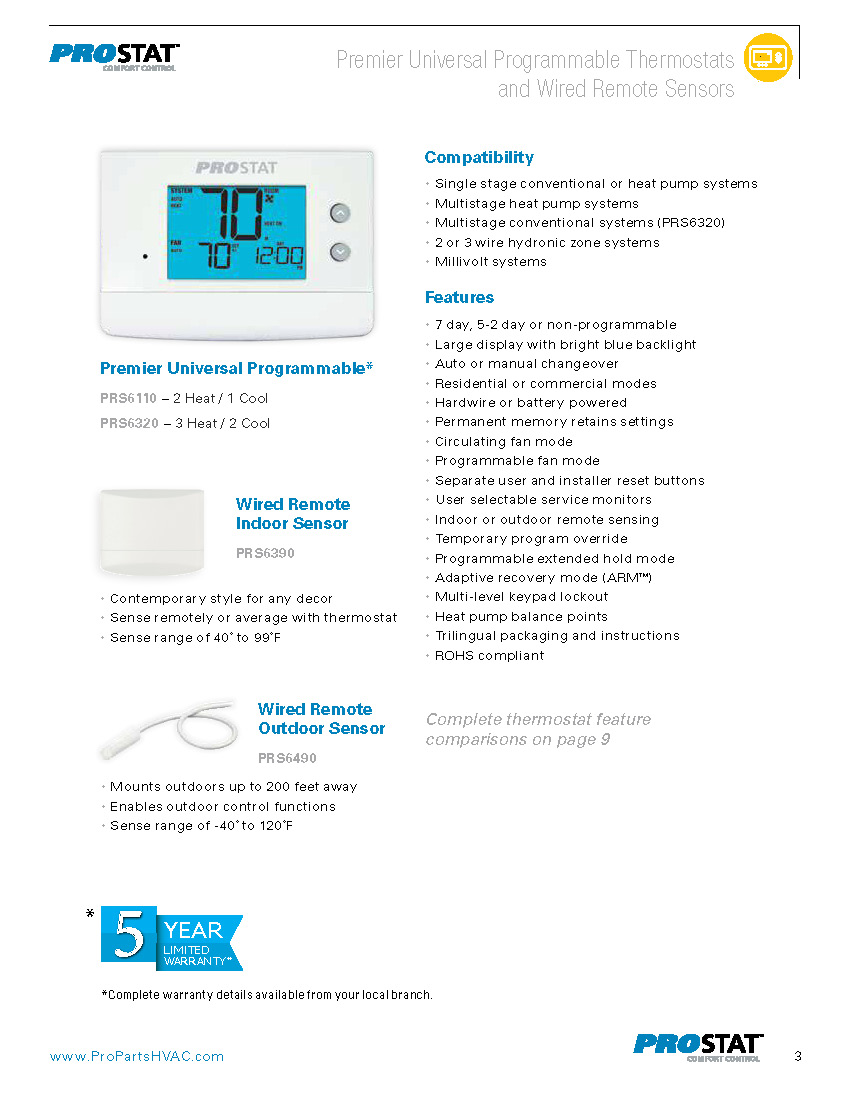

ProStat 3H/2C HP or 2H/2C Conventional Programmable Digital Thermostat
Compatibility
• Single stage conventional or heat pump systems
• Multistage heat pump systems
• Multistage conventional systems
• 2 or 3 wire hydronic zone systems
• Millivolt systems
Features
5 Year Warranty!• 7 day, 5-2 day or non-programmable• Large display with bright blue backlight
• Auto or manual changeover
• Residential or commercial modes
• Hardwire or battery powered
• Permanent memory retains settings
• Circulating fan mode
• Programmable fan mode
• Separate user and installer reset buttons
• User selectable service monitors
• Indoor or outdoor remote sensing
• Temporary program override
• Programmable extended hold mode
• Adaptive recovery mode (ARMTM)
• Multi-level keypad lockout
• Heat pump balance points
• Trilingual packaging and instructions
• ROHS compliant
| Product Specifications |
|---|
| Dimensions | 3.86” x 5.11” x 1.42” | | Electric Rating | 24 Volt AC (18-30 Volt AC)
1 amp maximum load per terminal
5 amp total maximum load (all terminals) | | AC Power | 18-30 Volt A C | | DC Power | 3.0 Volts DC
(2 “AA” Alkaline batteries included) | | Compatibility | Heat pump systems up to 3 heat/2 cool
Conventional systems up to 2 heat/2 cool
250mv – 750mv millivolt heating systems | | Control Range | 45° to 90° F ( 7° to 32° C) | | Display Range | 40° to 99° F (5° to 37° C) | | Accuracy | +/- 1° F (+/- .5° C) | | Temperature Differential | 1st Stage: .5°, 1°, or 2° F (0.2°, 0.5°, or 1° C)
2nd Stage: 1°, 2°, 3°, 4°, 5°, or 6° F (.5°, 1°, 1.5°, 2°, 2.5°, or 3° C) | | Storage Temperature | 14° to 140° F (-10° to 60° C) | | Operating Humidity | 5% to 95% Relative Humidity | | Terminations | G, Rc, Rh, W2, O/B/V3, Y1, Y2, W1/E/ W3, C, L, S1, S2 |
|
|
|
