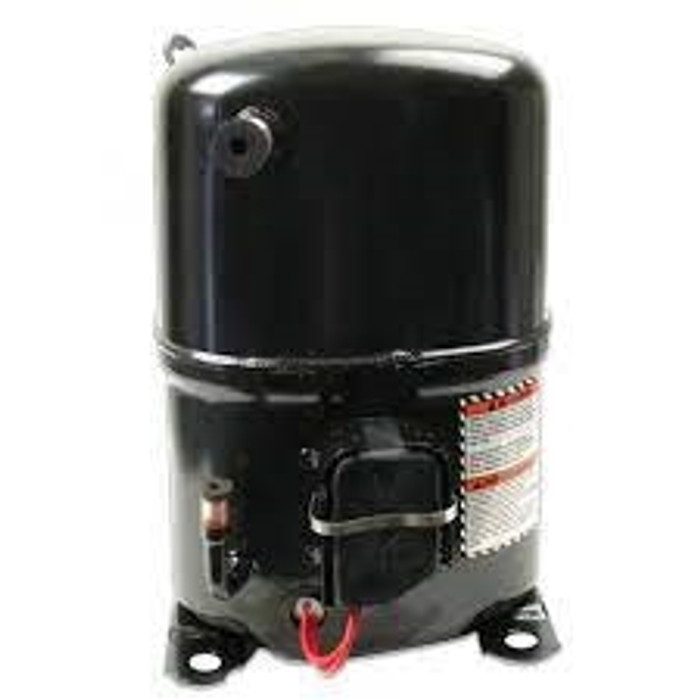

Copeland CR42K6E-PFV-875 3.5 Ton R22 Reciprocating Compressor
The Copeland CR42K6E-PFV-875 is a hermetically sealed reciprocating compressor designed for residential and light commercial air conditioning applications. This compressor has a nominal capacity of approximately 3.5 tons and is designed primarily for use with R22 refrigerant.
Operating on 208/230 volts, single phase, 60 Hz, the CR42K6E-PFV-875 is commonly used as a replacement compressor in compatible split systems, packaged units and other HVAC equipment. It features a 3/4-inch suction connection, a 1/2-inch discharge connection and a factory POE oil charge.
Compressor compatibility should always be verified using the complete manufacturer model number, refrigerant, voltage, phase, connection sizes and original equipment specifications. Tonnage alone should not be used to select a replacement compressor.
Product Features
- Genuine Copeland CR Series compressor
- Hermetic reciprocating compressor design
- Nominal capacity: 3.5 tons
- Approximately 42,000 BTU capacity class
- Designed primarily for R22 air conditioning applications
- 208/230V, single phase, 60 Hz
- 3/4-inch suction stub connection
- 1/2-inch discharge stub connection
- Factory charged with POE compressor oil
- Internal motor overload protection

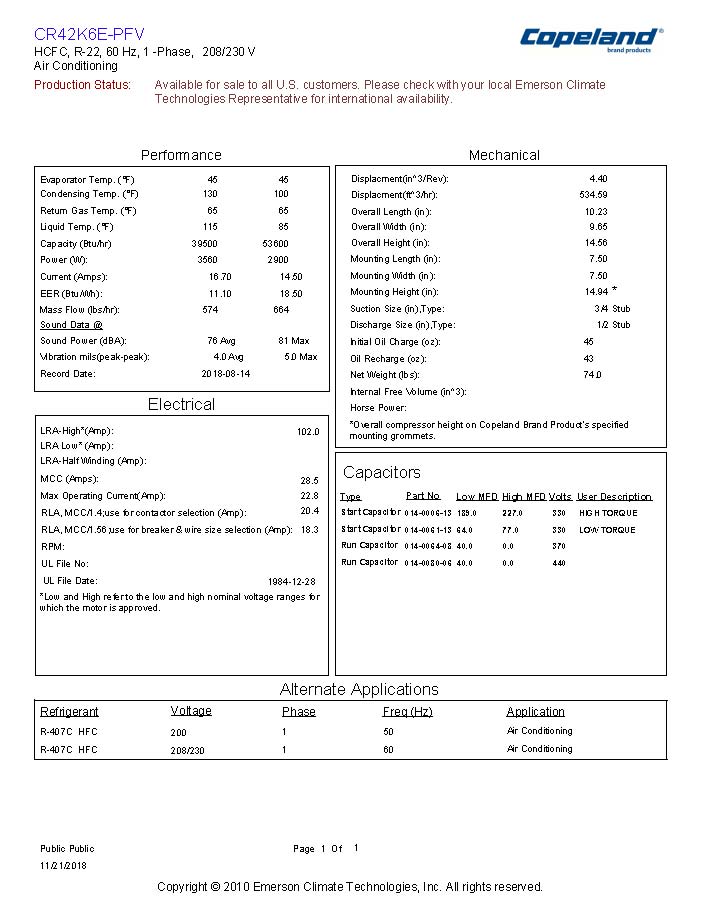

Technical Specifications
| Manufacturer | Copeland |
|---|---|
| Model Number | CR42K6E-PFV-875 |
| Compressor Type | Hermetic Reciprocating |
| Application | Air Conditioning |
| Nominal Tonnage | 3.5 Ton |
| Capacity Class | Approximately 42,000 BTU |
| Refrigerant | R22 |
| Voltage | 208/230V |
| Phase | Single Phase |
| Frequency | 60 Hz |
| Locked Rotor Amps | 102 Amps |
| Suction Connection | 3/4 in. Stub |
| Discharge Connection | 1/2 in. Stub |
| Oil Type | POE |
| Factory Oil Charge | 45 oz. |
Important Compatibility Information
Before ordering, verify that CR42K6E-PFV-875 is the correct replacement for your equipment. Compressor selection must be based on the complete model number, refrigerant, voltage, phase, capacity, mounting configuration and refrigerant connection sizes.
Electrical components, mounting hardware, start components, run capacitors, relays, crankcase heaters and other accessories are not included unless specifically stated in the product listing.
Professional installation is required. Refrigerant recovery, brazing, evacuation, electrical testing, charging and system startup should be completed by a qualified HVAC technician in accordance with applicable laws, codes and manufacturer requirements.
