UNIT IS BRAND NEW & COMPLETELY OPERATIONAL
MINOR COSMETIC DAMAGE ONLY
FULL MANUFACTURER'S WARRANTY APPLIES

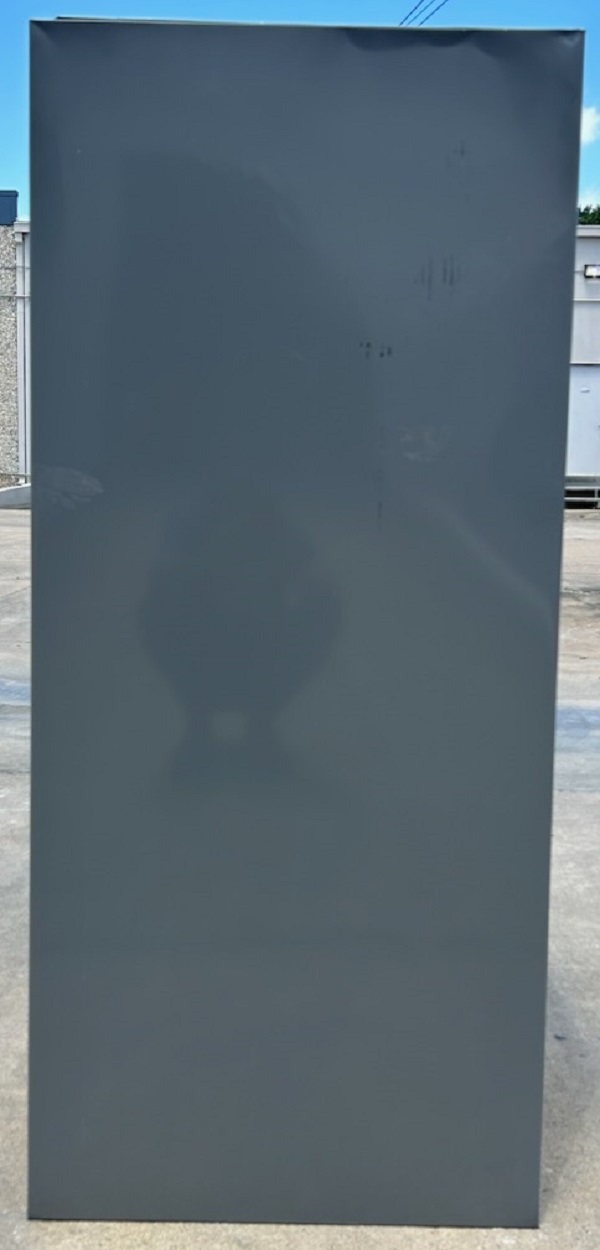

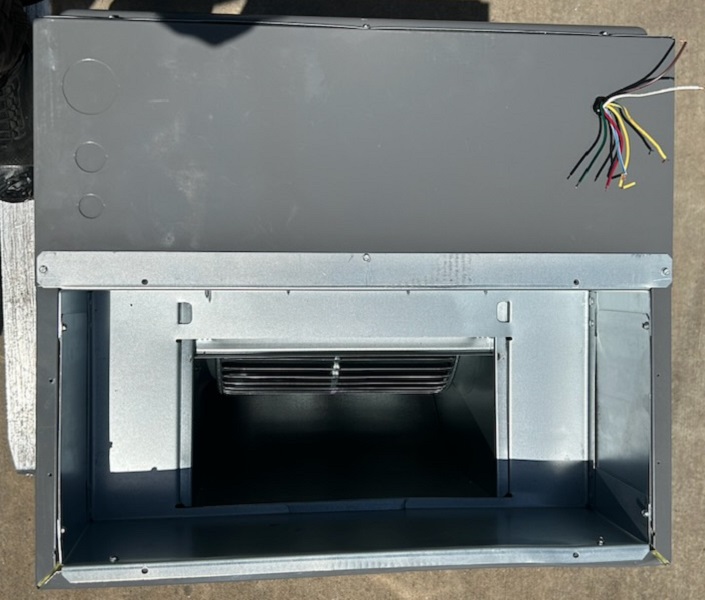

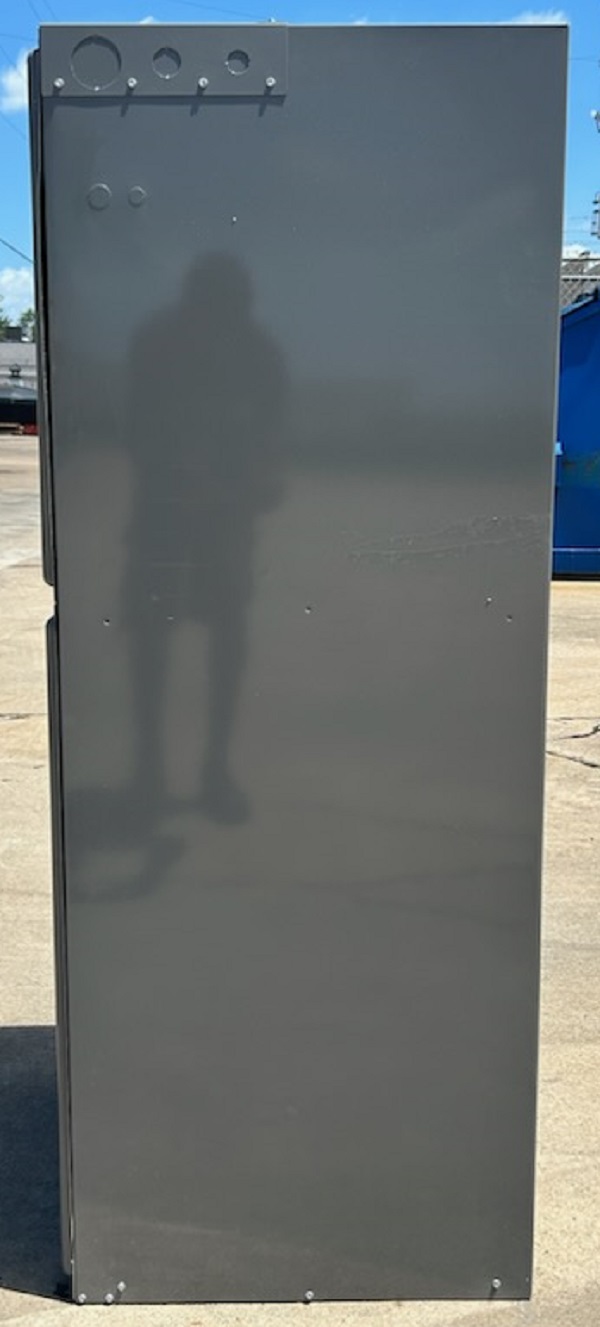

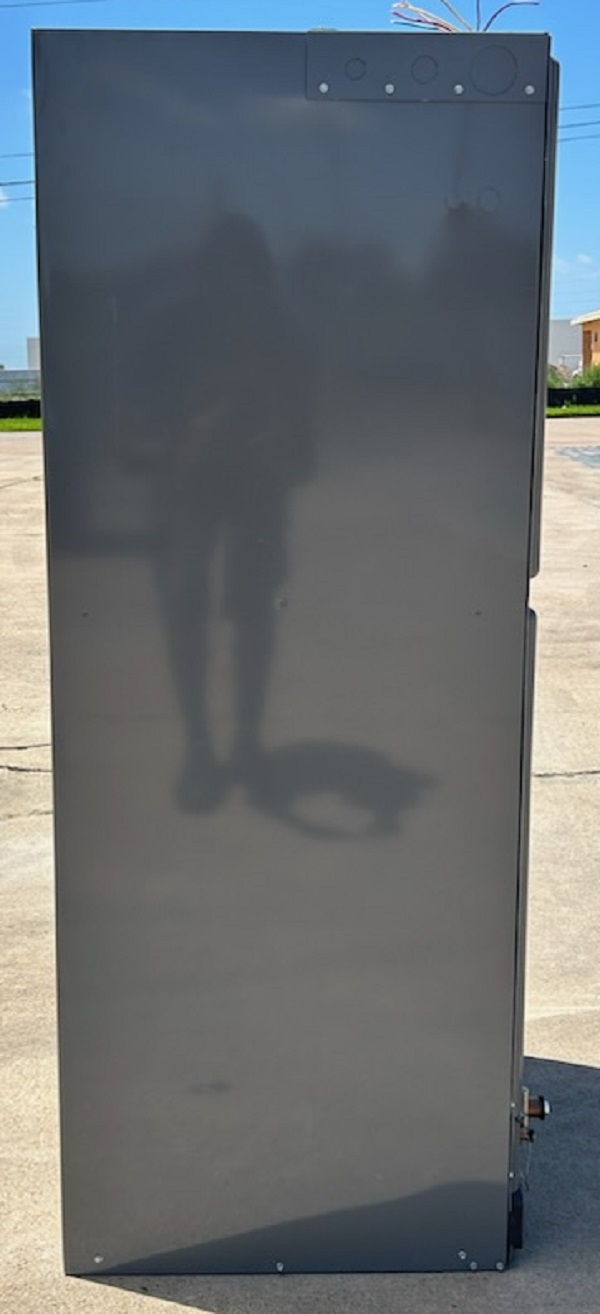

Rheem 5 Ton Air Handler Two Stage RH2TZ6024STANNJ
RH2TZ Constant Torque Motor (ECM)
Features and Benefits
MINOR COSMETIC DAMAGE ONLY
FULL MANUFACTURER'S WARRANTY APPLIES
Rheem 5 Ton Air Handler Two Stage RH2TZ6024STANNJ
RH2TZ Constant Torque Motor (ECM)
Features and Benefits
- RH2TZ features a Constant Torque motor (ECM) which provides enhanced SEER2 performance with most Rheem outdoor units.
- Versatile 4-way convertible design for upflow, downflow, horizontal left and horizontal right applications.
- Factory-installed indoor coil.
- Sturdy cabinet construction with 1.0 inch [25.4 mm] of foil faced insulation for excellent sound and insulating characteristics
- Field-installed auxiliary electric heater kits provide exact heat for indoor comfort.
- Kits include circuit breakers which meet U.L. and cUL requirements for service disconnect
- 11/2 ton [5.3 kW] through 5 ton [17.6 kW] models are between 42 1/2 to 57 inches tall and 22 inches deep.
- All models meet or exceed 330 to 400 CFM [156 to 189 L/s] per ton at .3 inches [.7 kPa] of external static pressure.
- Enhanced airflow up to .7? external static pressure.
- Evaporator is constructed of aluminum fins bonded to internally grooved aluminum tubing.
- Suitable for application in mobile homes.
- Cabinet air leakage less than 2.0% at 1.0 inch H2O when tested in accordance with ASHRAE Standard 193.
