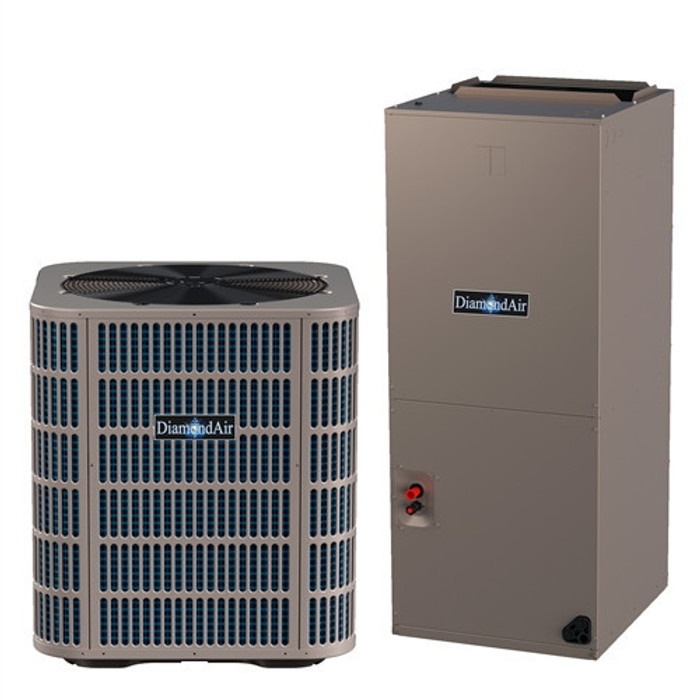

4 Ton DiamondAir 14.3 SEER2 R410A Central System D1448ACL2, D1448HAEAL2, TXV (F)

Summary

Product #184034: $2,895.00
  • Fast Track :
  • Heat Source :
2895
$2,895.00
Can't Decide? We can Help
Custom Quote
Have a large order? Need more customization?

4 Ton DiamondAir 14.3 SEER2 R410A Central System D1448ACL2, D1448HAEAL2 (F)

Manufacture: DiamondAir Product code: 184034
Average Rating:
List price: $4,232.00

Sale price:

$2,895.00
You save $1,337.00!
  • SKU: 184034
  • Availability:
    Usually Ships in 2 to 3 Business Days
  • Shipping:
    Calculated at Checkout
  • AHRI Certificate:
    Yes
  • AHRI Number:
    212586112
  • SEER2:
    14.3
  • Product Type:
    Split System
  • Tonnage:
    4
  • Operating Mode:
    Cool Only with Electric Heat
  • Refrigerant Type:
    R-410A
  • Cabinet Width:
    22"
Fast Track ?
Heat Source
  • 5 KW heat strip for DiamondAir 'D' air handlers EHK-05 / WHE-05 WHE0502X
  • 8 KW heat strip for DiamondAir 'D' air handlers EHK-08 / WHE-08 WHE0802X
  • 10 KW heat strip for DiamondAir 'D' air handlers EHK-10 / WHE-10 WHE1002X
  • 15 KW breakered heat strip for DiamondAir 'D' air handlers EHK-15B / WHE1502BX
  • 20 KW breakered heat strip for DiamondAir 'D' air handlers EHK-20B / WHE-20B WHE2002BX
Adding to cart… The item has been added

frequently purchased together

DiamondAir has been providing reliable, quality built HVAC equipment to North America for well over a decade. The 14 Series SEER2 central a/c complete systems achieve 14.3 efficiency rating. With a strong cabinet design, state-of-the-art engineering and competitive pricing, DiamondAir continues to deliver 'Comfort & Quality so you can rest easy'!
Straight Cool Condenser

Standard Features
* R410A chlorine-free refrigerant.
* Energy-efficient compressor.
* Internally protection against high temperature motor overload conditions.
* High quality condenser with inner-groove copper tube and aluminum fin.
* Service valves with sweat connections and easy-access gauge ports.
* Factory-installed high pressure switch
* AHRI certified and ETL listed
* Optional drier filter as accessory.
Cabinet Features
* Unique sound control top design.
* Compact design, easy installation and transportation.
* Powder-painted galvanized steel cabinet.
* Wire fan discharge grille.
* Steel louver coil guard
D14 Air Handler

Standard Features:
* Available for cooling and heat pump applications.
* Multi-speed PSC blower motor.
* All-aluminum tubes & fins.
* Common Factory-sealed cabinet certified to achieve 2% or less leakage rate at 1.0 inch water column.
* Multi-position Installation.
* Horizontal and vertical condensate drain pans standard;
* Blower and coil easy slide out for ease of maintenance.
* Field Installed heater kits are optional: 5kW, 7.5kW, 10kW, 15kW, 20kW.
* AHRI Listed & ETL Certified.
Click On Links Below For Technical Specifications, Manuals and Warranty Documents:

D14 AC Condenser Technical Specifications

D14 AC Condenser Installation Manual

D1418-D1460 Air Handler Technical Specifications

D1418-D1460 Air Handler Installation Manual

DiamondAir Warranty Certificate
