Bosch IDP Premium 3.5 to 5 ton Inverter R-454B Refrigerant Inverter Heat Pump Package Unit BPBA60RCBM18S
Upgrade to premium comfort, quiet operation and efficiency with the Bosch 5 Ton 19 SEER2 Inverter Heat Pump Package Unit (BPBA-60RCB-M18S) a next-generation all-in-one HVAC solution engineered for superior performance, quiet operation, and energy savings.
Designed for downflow or horizontal installations, this packaged system combines Bosch’s advanced inverter-driven compressor technology with environmentally friendly R454B refrigerant, delivering precise temperature control and reduced operating costs. The DC inverter compressor operates between 33% to 114% speed and modulates in 1% increments delivering unparalleled performance and efficiencies!
Why Choose This Bosch Package Unit?
Inverter Technology = Maximum Efficiency
Unlike traditional single-stage systems, this Bosch unit continuously adjusts output to match demand in 1% increments, eliminating temperature swings, reducing energy consumption, and providing better humidity control.
High Efficiency Performance

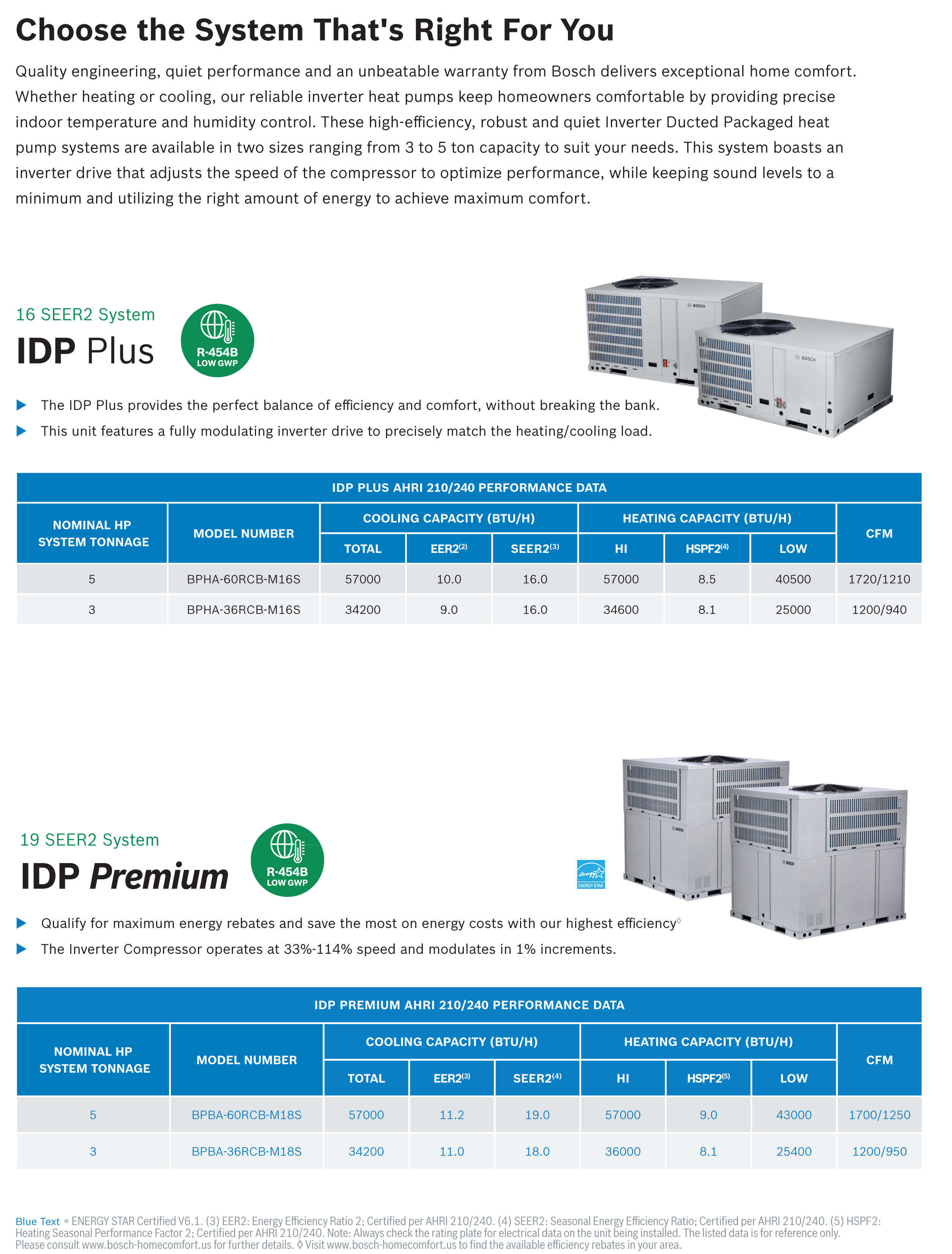

This unit achieves 19 SEER2, 11.2 EER2, 9 HSPF2 this system provides outstanding cooling efficiency while maintaining excellent heating performance in a wide range of climates.
All-in-One Packaged Convenience
Everything is built into a single outdoor unit ideal for rooftops or ground-level installs where indoor space is limited and the need for a quiet machine is a must such as zero lot line or close neighbor proximities.
Key Features
-
3-1/2 to 5 Ton Capacity – Ideal for large-sized residential applications
-
19 SEER2 Efficiency – Lower energy bills and improved comfort
-
Inverter Variable Speed Compressor – Precise temperature control
-
R-454B Refrigerant – Lower global warming potential, future-compliant
-
Downflow or Horizontal Configuration – Flexible installation options. See manual in technical specifications section for details on how to convert.
-
All-in-One Packaged System – Simplified installation and maintenance
-
Quiet Operation – Reduced noise compared to traditional units. Sound levels as low as 60 dBA
-
Durable Cabinet Construction – Built for long-term outdoor performance
Installation Flexibility
This unit supports both:
-
Downflow (rooftop applications) applications
-
Horizontal airflow installations
Perfect for:
-
Rooftop installs
-
Slab-mounted residential applications
-
Replacement of older packaged systems
Next-Generation Refrigerant (R454B)
This system utilizes R454B refrigerant, helping homeowners transition away from legacy refrigerants like R-410A while maintaining strong performance and efficiency.
-
Replacement of older packaged systems
BPBA Installation Instructions
Bosch Heat Pump Warranty Document
Bosch R454B Package Unit Brochure
/>
