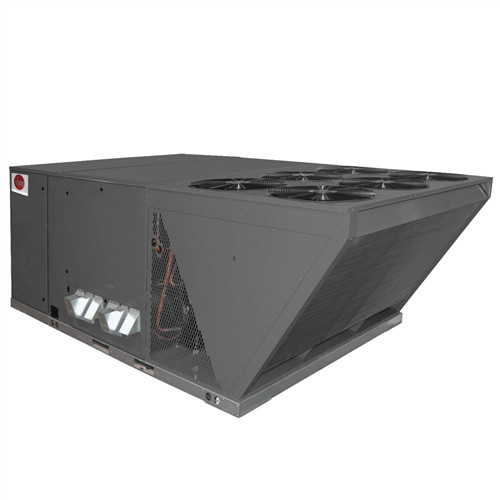

Rheem RKNL Series - Commercial Classic, 25 Ton, R410a, Packaged Gas Electric Unit 208-230V or 480V, 3 Ph, 60 Hz

---

RKNL-H Standard Features Include:

• R410A HFC refrigerant.
• Complete factory charged, wired and run tested.
• Scroll compressors with internal line break overload and high-pressure protection.
• Dual stage compressors.
• Two compressors on 7.5 - 12.5 ton models.
• Convertible airflow - vertical downflow or horizontal side flow.
• TXV refrigerant metering system on each circuit.
• High Pressure and Low Pressure/Loss of charge protection standard on all models.
• Solid Core liquid line filter drier on each circuit.
• Single slab, single pass designed evaporator and condenser coils facilitate easy cleaning for maintained high efficiencies.
• Cooling operation up to 125?F ambient.
• Foil faced insulation encapsulated throughout entire unit minimizes airborne fibers from the air stream.
• Hinged major access door with heavy-duty gasketing, 1/4 turn latches and door retainers.
• Slide Out Indoor fan assembly for added service convenience.
• Powder Paint Finish meets ASTMB117 steel coated on each side for maximum protection. G90 galvanized.
• One piece base pan with drawn supply and return opening for superior water management.
• Forkable base rails for easy handling and lifting.
• Single point electrical and gas connections.
• Internally sloped slide out condensate pan conforms to ASHRAE 62 standards.
• High performance belt drive motor with variable pitch pulleys and quick adjust belt system.
• Permanently lubricated evaporator, condenser and gas heat inducer motors.
• Condenser motors are internally protected, totally enclosed with shaft down design.
• 2" filter standard with slide out design.
• Two stage gas valve and direct spark ignition.
• Tubular heat exchange for long life and induced draft for efficiency and reliability.
• Solid state furnace control with on board diagnostics.
• 24 Volt control system with resettable circuit breakers.
• Colored and labeled wiring.
• Copper tube/Aluminum Fin coils.
• Factory Installed ClearControl?, a Direct Digital Control(DDC)and sensors which can connect to LonWorks? or BACnet? BAS systems for remote monitoring and control.
• (-H) Models with Variable Frequency Drive (VFD) meet ASHRAE 90.1-2010 and California Title 24
