20 Ton Rheem Two Stage Three Phase Central Air VFD Package Unit, RLNL-H240
20 Ton Rheem Two Stage Three Phase Central Air VFD Package Unit, RLNL-H240

AHRI Certificate: Yes
AHRI Number: 5385865
AHRI Website: https://www.ahridirectory.org/


Availability: SHIPPING QUOTE NEEDED TO COMPLETE TRANSACTION
Product Code: CALL172298

System Set Up


Commercial Heat Strip

Match Electrical & Size Desired*:
Roof Curb

Used in Rooftop Applications*:
Curb Adapter

Custom Made to Order*:
NOTE: When ordering curb adapter, please provide brand & model # of existing unit upon checkout in comment box. This is required for proper fitment. Order cannot process until completed.
Economizer OR Fresh Air Damper

Brings In Outside Air*:
NOTE: Only one option can be selected. You cannot install damper & economizer on same system.

Qty:
Description

Rheem has been building on nearly a century of industry-leading innovations. This includes Scroll compressor technology, R-410A in packaged heat pumps above five tons, micro-channel heat exchangers and eSync Integration Technology in air and water systems. The RLNL Commercial Classic Series upholds this reputation & designed to provide perfect comfort, flexibility and support for any business application.

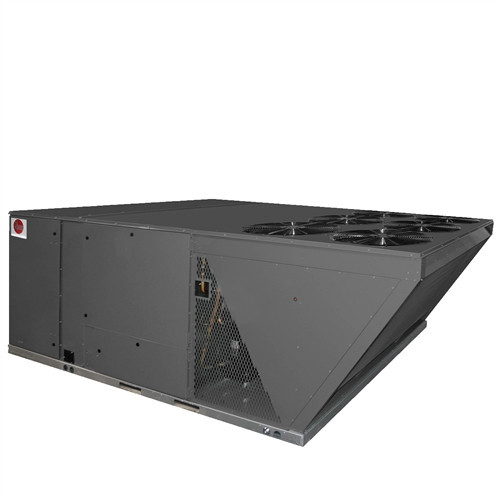

20 Ton Rheem Two Stage Three Phase Central Air VFD Package Unit, RLNL-H240
RLNL-H (15 - 25 Ton) Rheem Commercial Classic Series Package Air Conditioner
Standard Features:
  • R-410A HFC refrigerant.
  • Complete factory charged, wired and run tested.
  • Scroll compressors with internal line break overload and high-pressure protection.
  • Single compressor on 6 Ton model.
  • Two compressors on 7.5 - 12.5 Ton model.
  • Convertible airflow.
  • TXV refrigerant metering system on each circuit (except on 6 Ton).
  • High Pressure and Low Pressure/Loss of charge protection standard on all models.
  • Solid Core liquid line filter drier on each circuit.
  • Single slab, single pass designed evaporator and condenser coils facilitate easy cleaning for maintained high efficiencies.
  • Cooling operation up to 125 degree F ambient.
  • Coil faced insulation encapsulated throughout entire unit minimizes airborne fibers from the air stream.
  • Hinged major access door with heavy-duty gasketing, 1/4 turn latches and door retainers.
  • Slide Out Indoor fan assembly for added service convenience.
  • Powder Paint Finish meets ASTMB117 steel coated on each side for maximum protection. G90 galvanized.
  • One piece base pan with drawn supply and return opening for superior water management.
  • Forkable base rails for easy handling and lifting.
  • Single point electrical connections.
  • Internally sloped slide out condensate pan conforms to ASHRAE 62 standards.
  • High performance belt drive motor with variable pitch pulleys and quick adjust belt system.
  • Permanently lubricated evaporator and condenser motors.
  • Condenser motors are internally protected, totally enclosed with shaft down design.
  • 2 inch filter standard with slide out design.
  • 24 volt control system with resettable circuit breakers.
  • Colored and labeled wiring.
  • Copper tube/Aluminum Fin coils (121/2 ton uses MicroChannel condenser).
  • Molded compressor plug.
  • Supplemental electric heat provides 100% efficient heating.
  • Factory Installed Direct Digital Control (DDC) and sensors which can connect to LonWorks™ or BACnet® BAS systems for remote monitoring and control.
  • -H Models with Variable Frequency Drives (VFD) meets ASHRAE 90.1-2010 and California Title 24.
