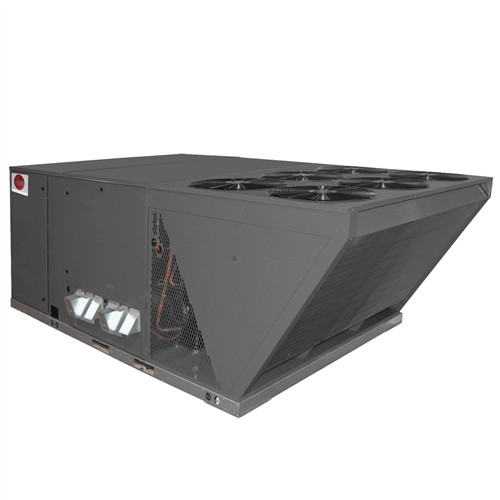

Rheem RKNL Series - Commercial Classic 20 Ton, R410a , 13 SEER Rooftop Packaged Gas Electric Unit 208-230V or 480V, 3 Ph, 60 Hz

---

RKNL-B (15 - 25 Ton) Series Standard Features

• R410A HFC refrigerant
• Complete factory charged, wired and run tested
• Scroll compressors with internal line break overload and high-pressure protection
• Dual stage compressors
• Convertible airflow - vertical downflow or horizontal sideflow
• TXV refrigerant metering system on each circuit
• High Pressure and Low Pressure/Loss of charge protection
• standard on all models
• Solid Core liquid line filter drier on each circuit
• Single slab, single pass designed evaporator and condenser coils facilitate easy cleaning for maintaining high efficiencies
• Cooling operation up to 125?F ambient
• Foil faced insulation encapsulated throughout entire unit minimizes airborne fibers from the air stream
• Hinged major access door with heavy-duty gasketing, 1/4 turn latches and door retainers
• Slide Out Indoor fan assembly for added service convenience
• Powder Paint Finish meets ASTMB117 steel coated on each side for maximum protection. G90 galvanized
• Base pan with drawn supply and return opening for superior water management
• Forkable base rails for easy handling and lifting
• Single point electrical connections
• Internally sloped slide out condensate pan conforms to ASHRAE 62 standards High performance belt drive motor with variable pitch pulleys and quick adjust belt system
• Permanently lubricated evaporator, condenser and gas heat inducer motors
• Condenser motors are internally protected, totally enclosed with shaft down design
• 2 inch filter standard with slide out design
• Two stage gas valve, direct spark ignition, and induced draft for efficiency and reliability
• Tubular heat exchange for long life and induced draft for efficiency and reliability
• Solid state furnace control with on board diagnostics
• 24 volt control system with resettable circuit breakers
• Colored and labeled wiring
• Copper tube/Aluminum Fin coils.

---
