Mini Split 12,000 BTU DiamondAir "Do It Yourself" 17.5 SEER 115V Ductless Heat Pump System D1612DIYI115V, D1612DIYO115V (TX)
Mini Split 12,000 BTU DiamondAir "Do It Yourself" 17.5 SEER 115V Ductless Heat Pump System D1612DIYI115V, D1612DIYO115V (TX)



Alternative Views:


List Price: $1,698.00
Our Price: $899.00
You save $799.00!

AHRI Certificate: Yes
AHRI Number 10579425

Availability: Usually Ships in 2 to 3 Business Days
Product Code: 163352

Fast Track

Fast Track Shipping [Add $69.00]Ships out your order(s) next business day after order is paid for in full. Your order(s) typically arrive to your shipping address in no more than 4 business days East Coast, and 7 business days for the West Coast/Midwest. Please note: Budget Heating & Air cannot control trucking company timelines, transit times may vary based on destination and factors out of the the company's control. (If we are out of your product, you will be contacted within 24 hours with the option to have this fee refunded)

STANDARD SHIPPING Ships out 3 to 5 business days Will arrive to your shipping address in no more than 10 business days. No more than 12 business days for the West Coast.


Qty:

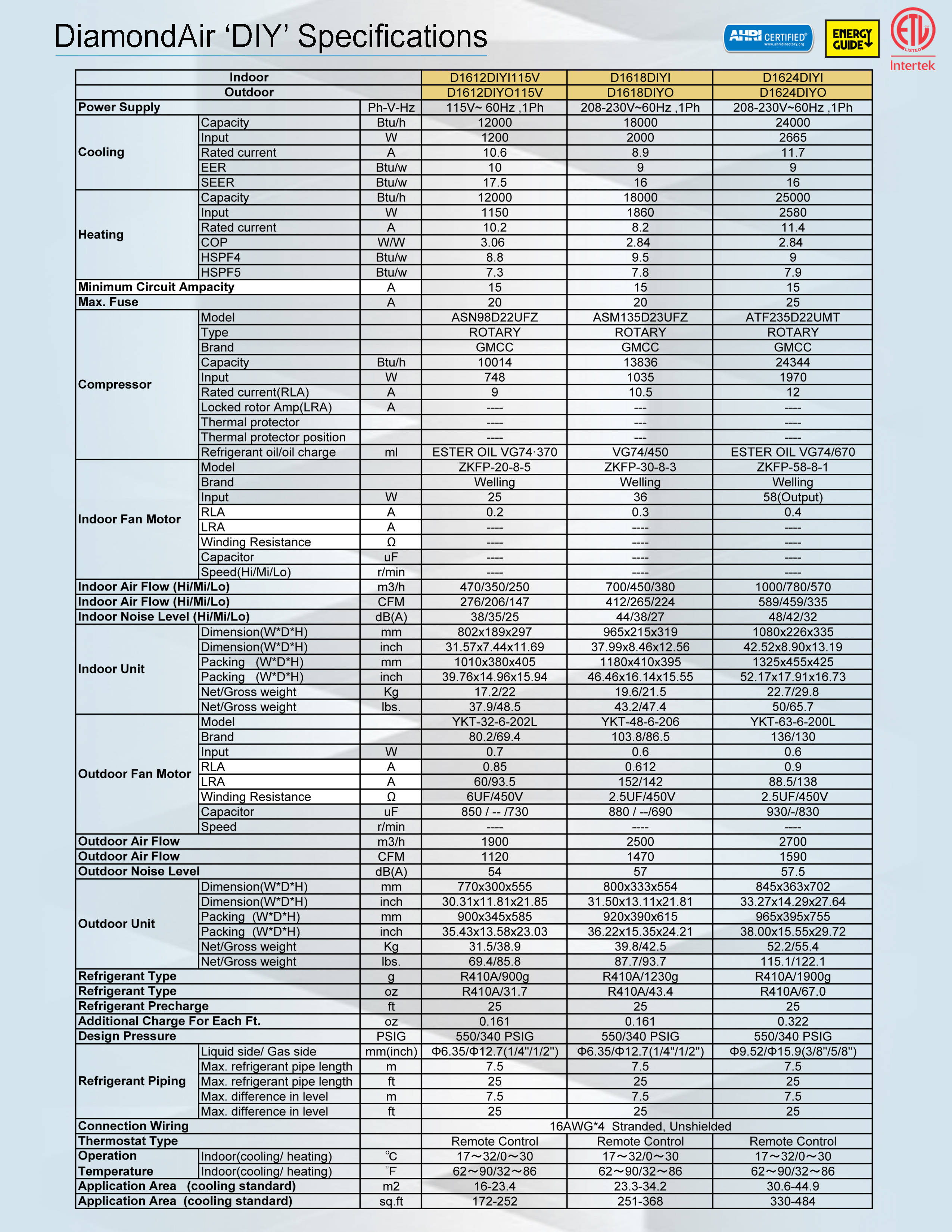

Description Technical Specs

With the DiamondAir "Do It Yourself" 12,000 BTU 17.5 SEER 115volt wall mount heat pump ductless mini split the D1612DIYI115V & D1612DIYO115V system is pre-charged to 25ft with no additional refrigerant needed giving you air conditioning and heating at a fraction of the cost! This system includes an outdoor condensing unit, indoor wall mount air handler with remote control, and a 25ft pre-charged copper line-set with 16 gauge 4 conductor communication cable included and pre-wired at indoor air handler. With some electrical knowledge and the use of basic tools any capable homeowner is empowered to install this system! No charging necessary!

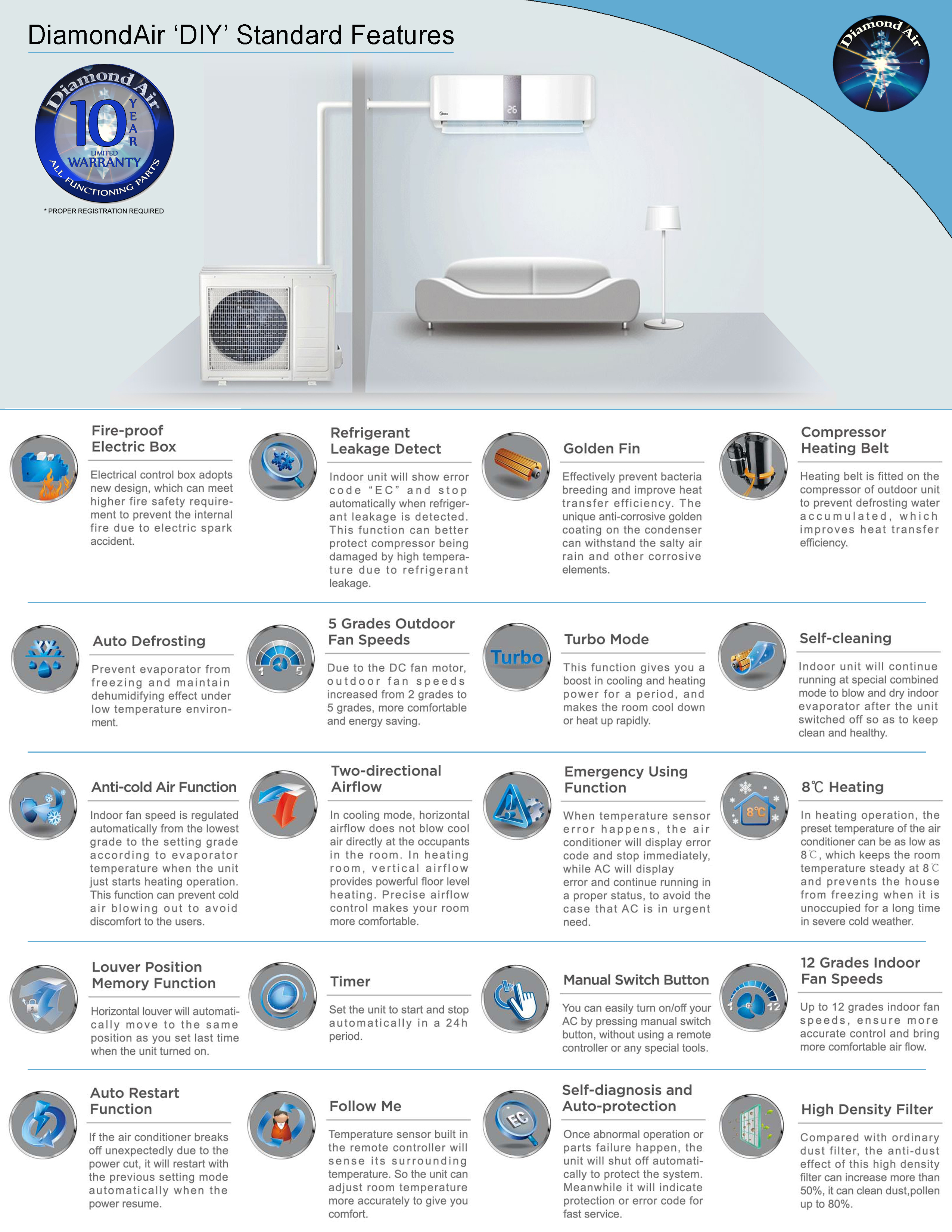

DiamondAir is listening.Consumers these days don't want to be fast talked and/or taken advantage of. More and more individuals are capable, handy and willing to take on projects to improve their lifestyle and overall family comfort. With this in mind, DiamondAir DIY Series offers a 'Do It Yourself' heat pump mini split system. Each system is FULLY pre-charged, with 25 foot insulated copper line set and pre-wired with quick connects. With no soldering involved, offering three versatile sizes (12K, 18K, 24K), makes this a worry free afternoon project for just about anyone. Achieving 16-17.5 SEER ratings, with a solid 10 year warranty on all parts, and at an extremely affordable price.
DiamondAir makes a wonderful addition to any home, workshop or small business!

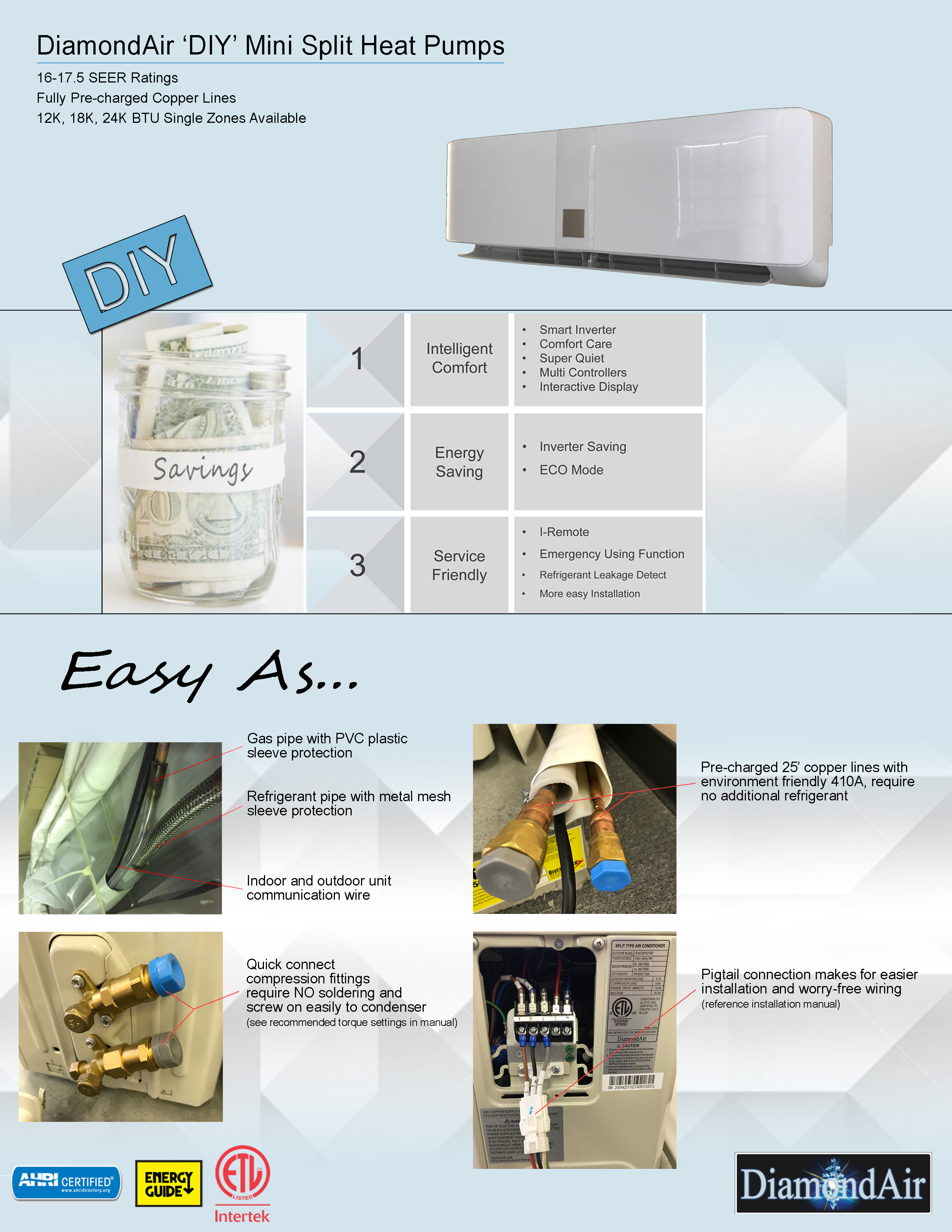

* 25ft PRE-CHARGED INSULATED COPPER LINE SET W/ COMPRESSION FITTINGS & COMMUNICATION 16/4 WIRE INCLUDED!
* NO SOLDERING OR REFRIGERANT CHARGING INVOLVED!
* PRE-WIRED SETUP WITH QUICK CONNECTS FOR EASIER, WORRY FREE INSTALLATION!
* SIMPLE, READY-TO-GO, OUT OF THE BOX COMPLETE SYSTEM!





*Budget Heating & Air always recommends professional help to ensure proper installation of any system.
