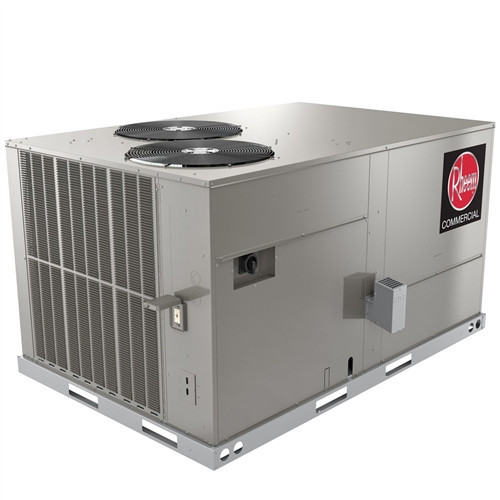

10 Ton Rheem Gas Package Unit 225K BTU Three Phase, RGEDZR120A
10 Ton Rheem Gas Package Unit 225K BTU Three Phase, RGEDZR120A

AHRI Certificate: Yes
AHRI Number: 200082197
AHRI Website: https://www.ahridirectory.org/


Availability: Call 813-885-7999 For Availability
Product Code: CALL172256

Crating


We highly recommend crating your system. This item is highly susceptible to damage, crating has proven to help prevent damage & overall better customer satisfaction. When not crated, mishandling is probable
System Set Up


Natural or Liquid Propane (LP) Gas

Please Select*:
Roof Curb

Used in Rooftop Applications*:
Economizer OR Fresh Air Damper

Brings In Outside Air*:
NOTE: Only one option can be selected. You cannot install damper & economizer on same system.

Qty:
Description Technical Specs

Rheem has been building on nearly a century of industry-leading innovations. This includes Scroll compressor technology, R-410A in packaged heat pumps above five tons, micro-channel heat exchangers and eSync Integration Technology in air and water systems. Now the Renaissance Line is that next step in evolution designed to provide perfect comfort, flexibility and support for any business applications. The 7.5-12.5 ton chassis is a direct replacement to the Carrier rooftop units and can used with existing roof curb.
RGED Standard Features Includes:
  • Factory charged with R410A HFC refrigerant
  • Wired and run tested
  • Scroll compressors with internal line break overload and high pressure protection
  • Model RGEDZR has a single-stage compressor
  • Convertible airflow - vertical down flow or horizontal side flow
  • Single-point electrical connections
  • Forkable base rails for easy handling and lifting
  • Cooling operation up to 125°F ambient
  • Two-stage gas heat input with direct spark ignition system, solid state furnace controls, and optimized induced draft combustion
  • Microchannel evaporator and condenser coil
  • PlusOne® ServiceSmart package includes:
    • Qwik-Change Flex-Fit Rack™
    • Qwik-Slide Blower Assembly™
    • Qwik-Clean Drain Pan™
  • PlusOne® Diagnostics with Dual 7-Segment LED Display
  • One-piece top cover and one-piece base pan with drawn supply and return opening
  • Two-piece control door
  • 1/4 turn fasteners on filter access door
  • Color-coded and labeled wiring
  • External lockable gauge ports
  • TXV refrigerant metering system
  • Solid-core liquid line filter drier
  • High pressure and low pressure/loss of charge protection
  • Insulation encapsulated throughout entire unit
  • High performance belt drive motor with variable pitch pulleys and quick adjust belt system
  • New product footprint with matching connections
  • Improved factory lead times
