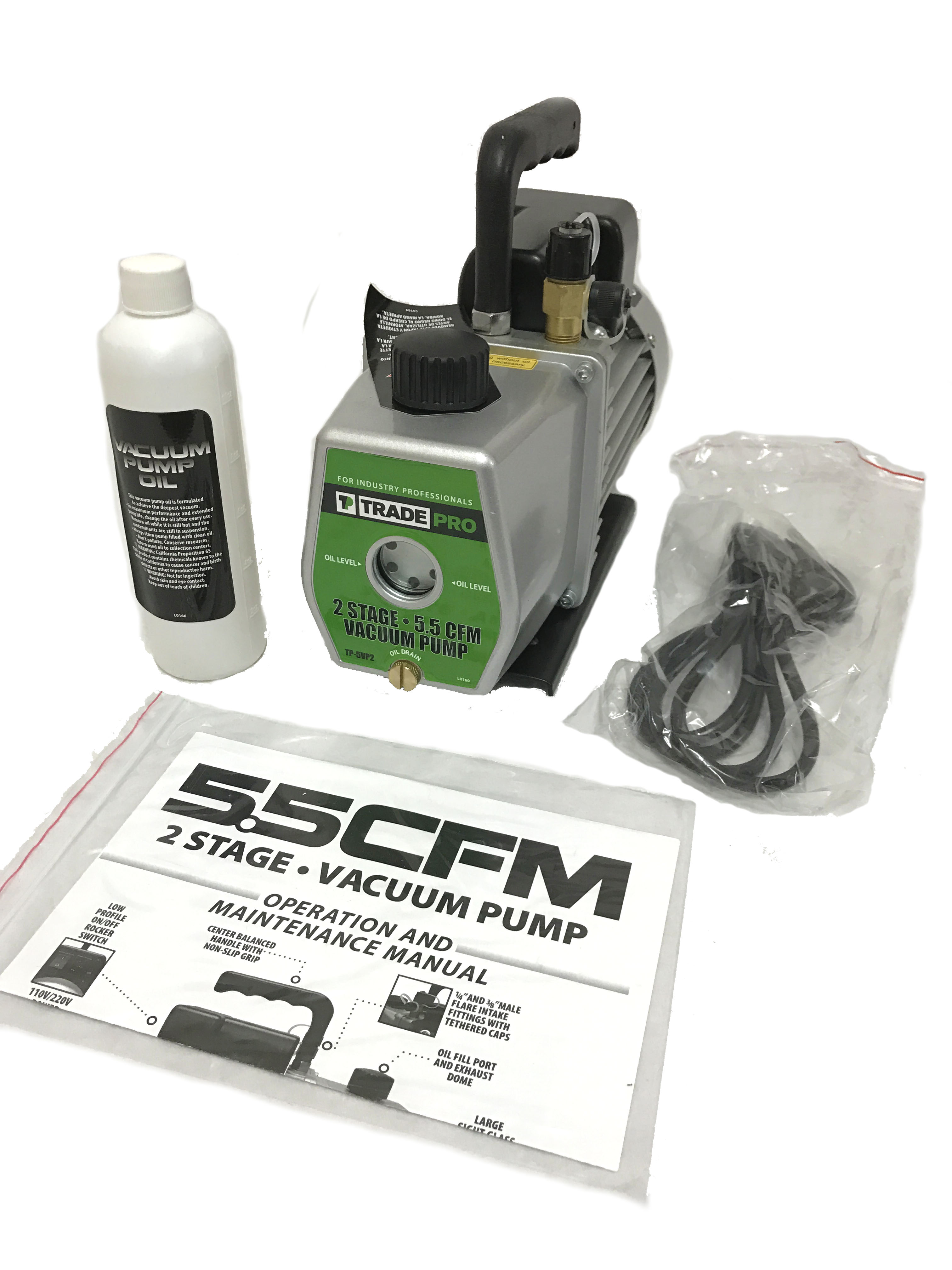

Uniweld 5.5 CFM Two Stage Vacuum Pump, 1/2HP, 110/220V, 15 micron, U5VP2
(brand may vary from picture, not the specifications)
A more compact 2-stage 5.5 cfm 1/2 HP, 110/220v, 50/60Hz vacuum pump for jobs such as air conditioning and appliances.
15 micron rating(brand may vary from picture, not the specifications)
- low profile on/off rocker switch
- 110V/220V power selector switch
- dual intake fittings (1/4" and 3/8" male flare)
- powerful low decibel fan cooled motor
- heat dispersing motor fins
- wide mouth oil port and pump exhaust
- Anti-suck back in case of power failure.
- O ring seal drain.
- Heavy duty cushioned handle.
- Heavy duty casting body.
- Large fitting for easier oil filling 15.22oz capacity.
- Large four point base prevents overturning.
- Large sight glass. Easy to read.
- Large oil drain.
- Large oil capacity to absorb moisture.
- Metal with rubber overlay base for stability.
- Heavy duty rotors and bearings.
Features
The U5VP2 operates at 5.5 CFM, has an oil capacity of 15.22 ounces (450ml), and a micron rating of 15. Built for deep vacuum service, this vacuum pump works on automotive, residential and commercial systems using CFC, HCFC, and HFC refrigerants in conjunction with mineral oil, ester oil, Alkylbenzene oil, and PAG oil as lubricants.>
| Name | Uniweld U5VP2 - Vacuum Pump, 5.5 CFM, 1/2 HP, 2 Stage, Dual 110/220V, 50/60 Hz |
|---|---|
| Item Number | U5VP2 |
| Manufacturer Product Number | U5VP2 |
| SKU - PIM Number | 1484395632808 |
| ERP Number | 383856 |
| Unit of Measure | EA |
| Weight | 22.2 Pounds (Lb) |
| Length | 12.5 Inches (In) |
| Width | 4.0 Inches (In) |
| Height | 9.5 Inches (In) |
| Country of Origin | CHN |
| Brand | Uniweld |
| Voltage | 110 VAC |
| Voltage | 220 VAC |
| Cycle/Hertz | 50/60 Hz |
| Motor HP | 1/2 HP |
| Handle | Yes |
| Vacuum Rating | 15 Microns |
| Color | Gray |
| Oil Capacity | 11.1oz |
| Warranty Offered | Yes |
| UL Listed | No |
