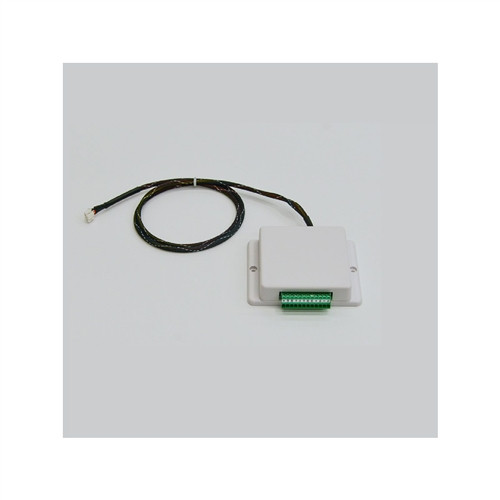

Mitsubishi Ductless Mini Split Traditional Thermostat Interface PAC-US446CN-1
SPECIFICATIONS:
Allows users to control Mitsubishi Electric indoor units with a third-party thermostat
Thermostats tested: ecobee, Honeywell®, Nest®, and Lyric®
Indoor unit modes: Cool, Heat, Fan, and Off
Auto mode
Provides 3 input terminals to control fan speed control: High, Medium, Low
One Thermostat Interface per indoor unit
Works with PAA intelli-HEAT™ indoor unit
Includes PAA wire harness
Connection: CN105 - IT Terminal
Dimensions: (H x W x D) 3.96 in x 3.17 in x 0.93 in
Terminal Block: 20-30 VAC Rated
ADVANCED FEATURES:
Thermo-OFF time delay
Stay in heat or cool mode for 2 hours once W or Y is no longer active (default)
Turn off the unit or go into fan mode immediately when set point is met
Fan speed setting for when setpoint is met in cooling or heating
OFF (default)
Extra low
Fan Speed
Custom Auto (default, more comfortable than Auto)
Medium, High, Auto (more efficient than Custom Auto)
Two-stage thermostat operation
W1/Y1: Capacity is adjusted automatically based on room (default)
W2/Y2: Full capacity
Adjustable static pressure settings
Enable CN24 backup heat operation during defrost
Auto recovery after power failure
Select the thermostat power supply source on PAA intelli-HEAT™
Set Emergency and test mode operations PAA intelli-HEAT™
OFF Thermostat controls heat and fan signals (default)
ON Test mode operation
Thermostat Interface DIP switch settings for intelli-HEAT™
OFF G & Y (default)
ON Y1 & Y2
