EcoTemp 2 Ton ECM Motor Piston Metering Air Handler WAPL244A

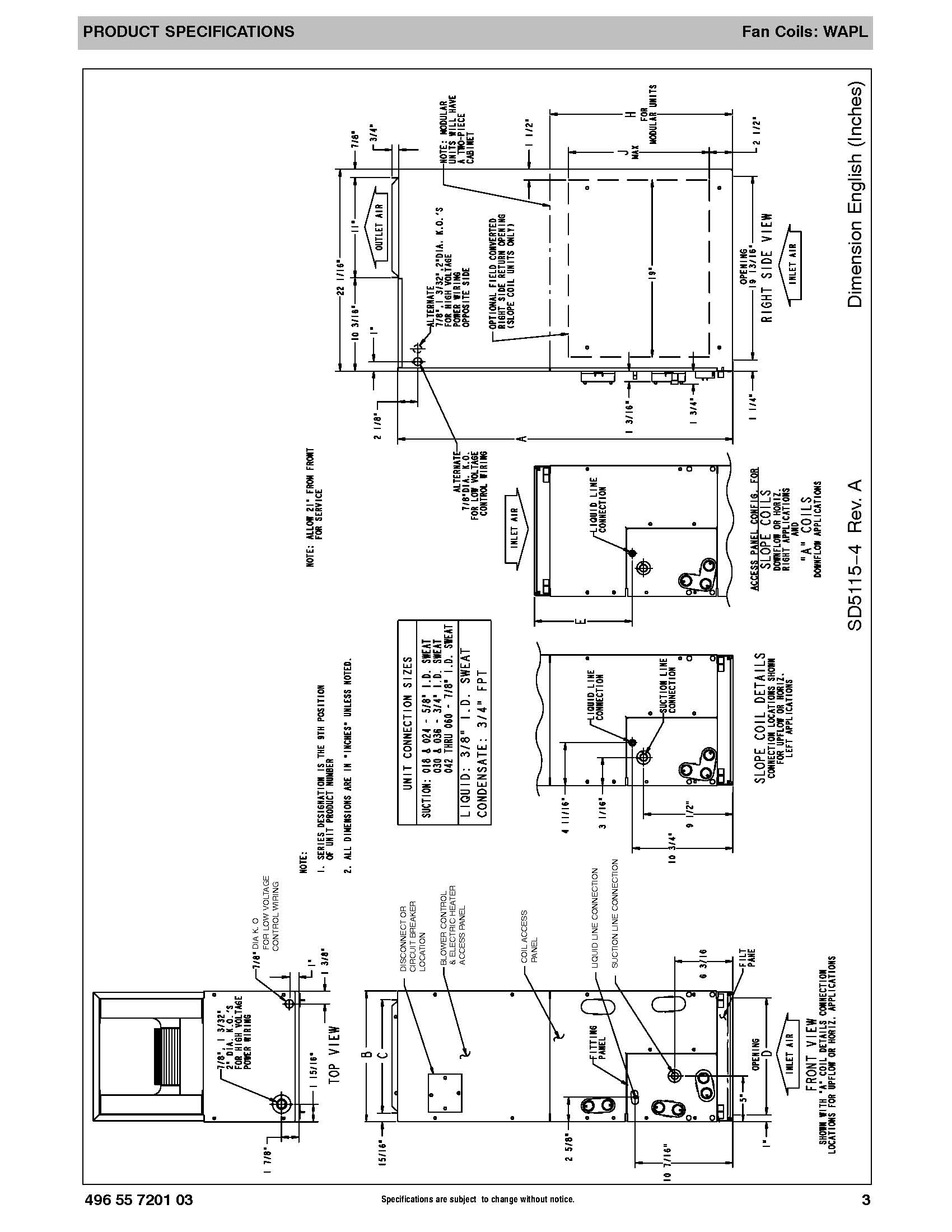

The 2 ton WAPL244A is only 14.31" W x 22.06" D x 42.69" H. Perfect for limited space installations such as attics, tight closets and more!The EcoTemp model WAPL244A 2 ton air handler features a 5-Speed highly efficient and quiet ECM blower motor inside the air handler, which feature aluminum tubing and aluminum fin evaporator coil with TXV metering device. This air handler is Multi-position which means the unit can be mounted in upflow, downflow, and horizontal installation applications. U.S. Department of Housing and Urban Development "HUD" approved for manufactured housing and certified to achieve a 2% or less leak rate at 1" water column! Includes primary and secondary drain fittings and multiple electrical entry locations and time delay relay for ease of installation. R410A and R22 refrigerant compatible!
Multiposition Air Handler- L = Aluminum Tube, Aluminum Fin Evaporator Coil
- M = Copper Tube, Aluminum Fin Evaporator Coil
- T = Tin Coated Copper Tube, Aluminum Fin Evaporator Coil
ALL MODELS- 1-1/2 thru 5 tons
- Available for environmentally sound R-410A systems
- Factory installed piston metering device with Teflon ring on 1.5 - 4 ton sizes, TXV on 5 ton size
- Sweat connections
- Primary and secondary drain fittings
- Multiple electrical entry locations
- Time delay relay (TDR)
- Field installed heater packages from 5 kW - 30 kW available separately
- HUD approved for manufactured housing
- 208/230-1-60 supply voltage
- Units tested and certified by manufacturer to achieve a 2% or less leakage rate at 1.0 inch water column
- 1 inch thick insulation with R value of 4.2
- Filter (washable) available as accessory
- ECM 5-speed motor

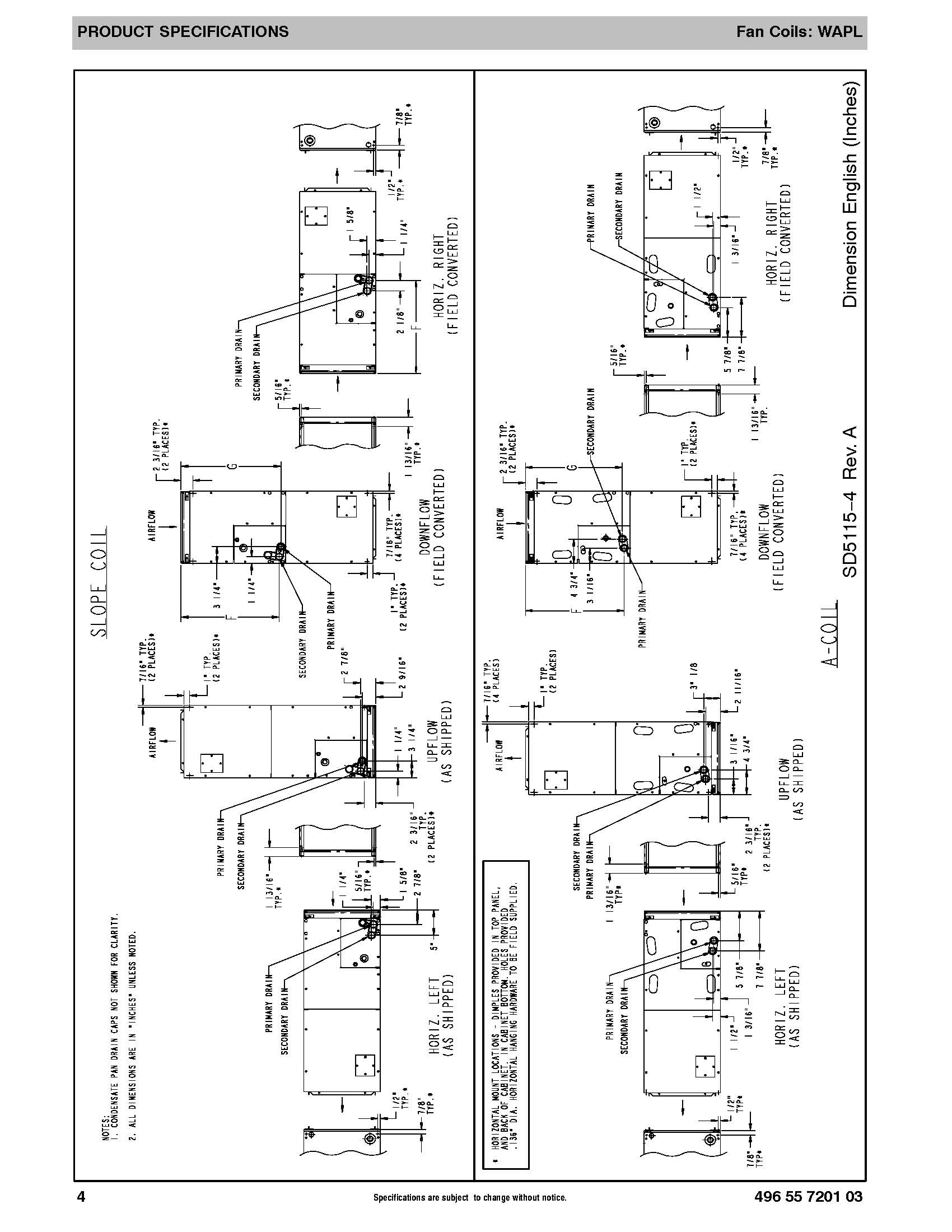

- Multiposition installation - upflow or horizontal left standard, horizontal right with minor modification (field convertible to downflow with available accessory kit)
- Low voltage circuit protective fuse (3 amp) inline on wire harness
- No Heat (Plug) Kit factory installed
LIMITED WARRANTY*- 5 year parts limited warranty
- With timely registration, an additional 5 year parts limited warranty* For owner occupied, residential applications only. See warranty certificate for complete details and restrictions, including warranty coverage for other applications.
|
|
 |
 |
 |
 |
|
 |
