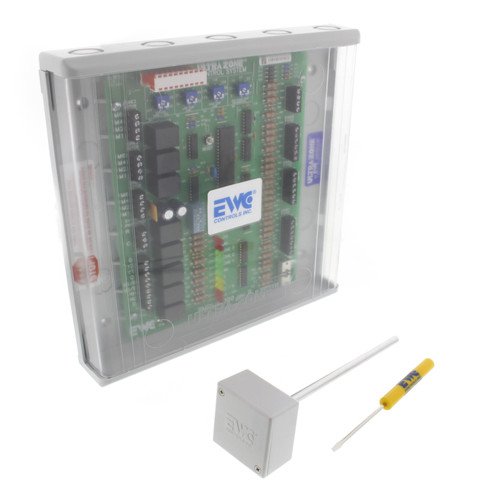

EWC Controls up to 7 Zone Damper System Control Board, BMPLUS 3000
The new BMPlus3000 series of control panels are designed for optimum performance and superior comfort. The BMPlus is expandable up to seven zones using the XM-2 expansion panel. It is also available in the following configurations: BMPlus3000 (3 Zones) BMPlus5000 (5 Zones) BMPlus7000 (7 Zones) *Staging via Adjustable On-board Timer or OAS. (7 to 42 Minutes or 7? to 42?F) *50% Rule to limit staging if less than half the total zones are demanding Heating or Cooling. *Supply Air Temperature Monitoring to help protect HVAC equipment. *100% dual fuel Compatible. *On-board LED?s indicate system operation.
