3 Ton Goodman 14.5 SEER2 A/C System - GSXN403610, AMST36CU1400 (1938)(F)

3 Ton Goodman 14.5 SEER2 A/C System - GSXN403610, AMST36CU1400

---

Want to learn more about SEER2 - Click Here

---

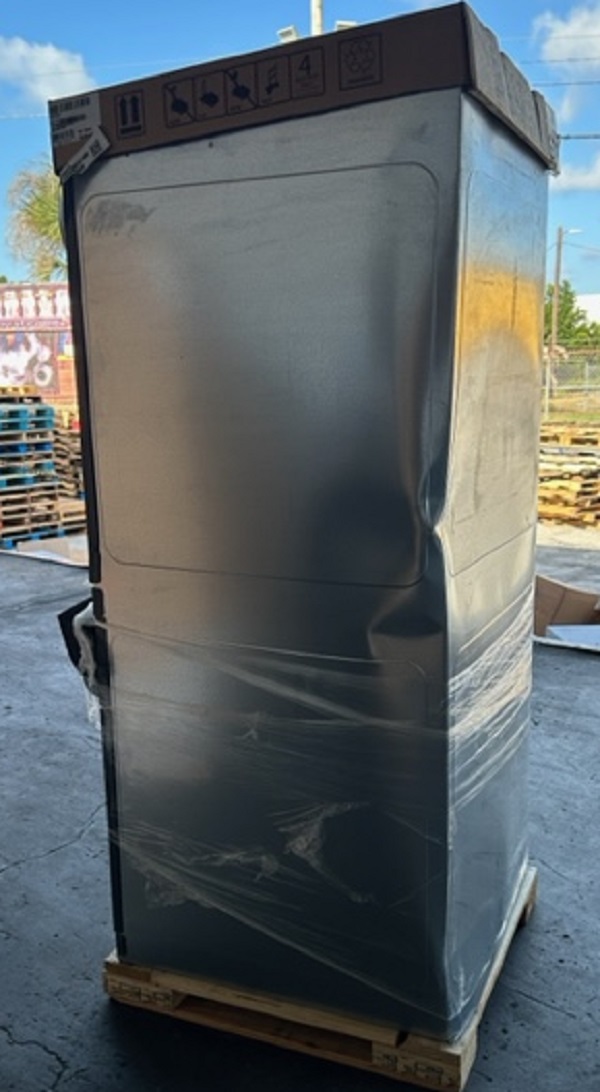

GSXN4 Condenser
Standard Features
? Energy-Efficient Compressor
? Copper tube/ enhanced aluminum fin coil-5mm diameter on 1.5-4.0T
? Factory-installed filter drier
? Fully charged for 15? of tubing length
? Service valves with sweat connections and easy-to-access gauge ports
? Contactor with lug connection
? Ground lug connection
? AHRI Certified
? ETL Listed

Cabinet Features
? Removable grille-style top design compliant with UL 60335-2-40
? Heavy-gauge galvanized-steel cabinet
? Attractive Architectural Gray powder-paint finish with 500-hour salt-spray approval
? Steel louver coil guard
? Single-panel access to controls with space provided for field-installed accessories
? When properly anchored, meets the 2020 Florida Building Code unit integrity requirements for hurricane-type winds (Anchor bracket kits available.)

---

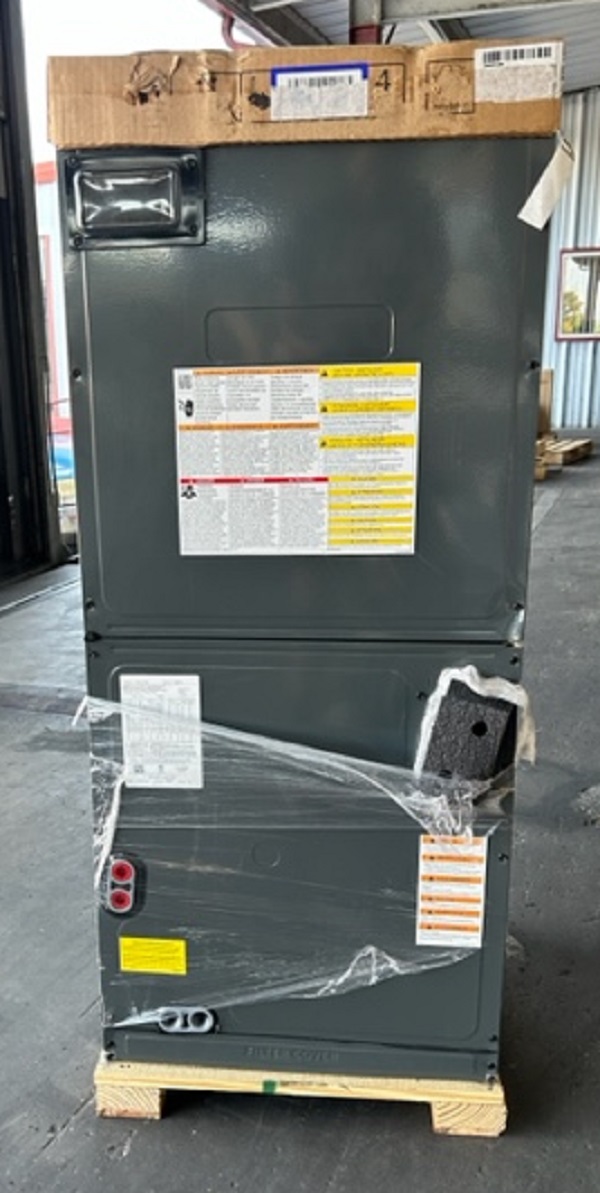

AMST Air Handler
Product Features
? Internal factory-installed thermal expansion valves for cooling and heat pump applications
? Direct drive, multi-speed ECM blower motor
? All-aluminum evaporator coil
? Coil mounting track for quick repositioning
? Optimized for use with R-410A refrigerant
? Cabinet air leakage less than 2.0% at 1.0 inch H2O when tested in accordance with ASHRAE standard 193
? Cabinet air leakage less than 1.4% at 0.5 inch H2O when tested in accordance with ASHRAE standard 193
? AHRI certified; ETL listed
? Rigid SmartFrameTM cabinet
? Horizontal or vertical configuration capabilities
? 21? depth for easier attic access
? DecaBDE-free thermoplastic drain pan with secondary drain connections
? Screw-less sides and back helps to reduce condensation when installed in humid locations
? Foil-faced insulation covers the internal casing to reduce cabinet condensation
? Galvanized, leather grain-embossed finish
? Glue-less cabinet insulation retention
? Tool-less filter access
