2 Ton Goodman R32 Variable Speed Communicating Air Handler AHVE24BP1300
Product Features
• Electronic Expansion Valve (EEV) for cooling and heat pump applications.
• 7mm evaporator coil tube size
• Variable-speed ECM blower motor
• Compatible with Daikin or Goodman brand smart thermostat
• Provides constant CFM over a wide range of static pressure conditions independent of duct system
• CFM indicator
• Thermostat provides adjustable low CFM for efficient fan-only operation
• All-aluminum evaporator coil
• Fault recall of six most recent faults
• Improved humidity and comfort control
• AHRI certified; ETL listed
• Coil mounting track for quick repositioning
• UL 60335 2-40 Compliant
• Factory installed R-32 sensor designed for the lifespan of the coil
• Optimized for use with R-32 refrigerant
• Rigid SmartFrame cabinet
Cabinet Features
• Cabinet air leakage less than 2.0% at 1.0 inch H₂O when tested in accordance with ASHRAE standard 193
• Cabinet air leakage less than 1.4% at 0.5 inch H₂O when tested in accordance with ASHRAE standard 193
• Field Installed 3kW - 25kW electric heater kit available
• Horizontal or vertical configuration capabilities
• 21" depth for easier attic access
• DecaBDE-free thermoplastic drain pan with secondary drain connections
• Screw-less sides and back helps to reduce condensation when installed in humid locations
• Foil-faced insulation covers the internal casing to reduce cabinet condensation
• Galvanized, leather grain-embossed finish
• Glue-less cabinet insulation retention
• Tool-less filter access

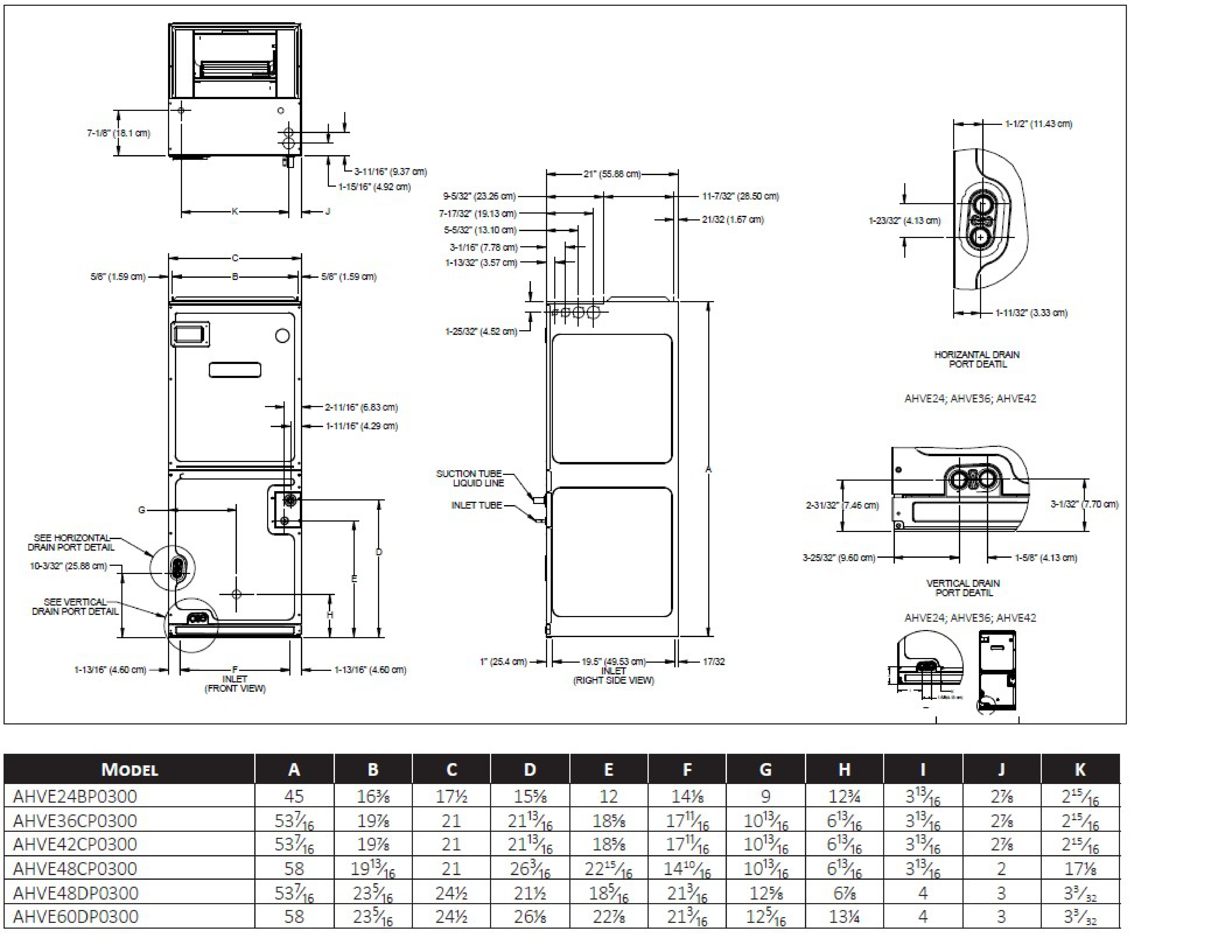

AHVE Technical Specifications
