5 Ton Rheem 16 SEER2 Two Stage Heat Pump System RP15AZ60AJ2NA, RH2TZ6024STANN - 12849

Features
RP15AZ Condenser:
- Two-Stage Scroll Compressor: Features two speeds (high and low) of cooling and heating, providing more precise temperature control, lower humidity and greater efficiency when compared to single stage compressors.
- 7mm Condenser Copper Coil (Does not apply to the 5 ton model): Requires less refrigerant allowing for a smaller and lighter footprint while enhancing reliability.
- Inverted Reversing Valve: Allows for faster heat transfer with gravity assist shifting and reduced joint stress for increased reliability.
- PlusOne Expanded Value Space: 3"- 4"- 5" service valve space- provides a minimum working area of 27-square inches for easier access
- PlusOne Triple Service Access: 15" wide, industry leading corner service access, two fastener, removable corner and individual louver panels- makes repairs easier and faster

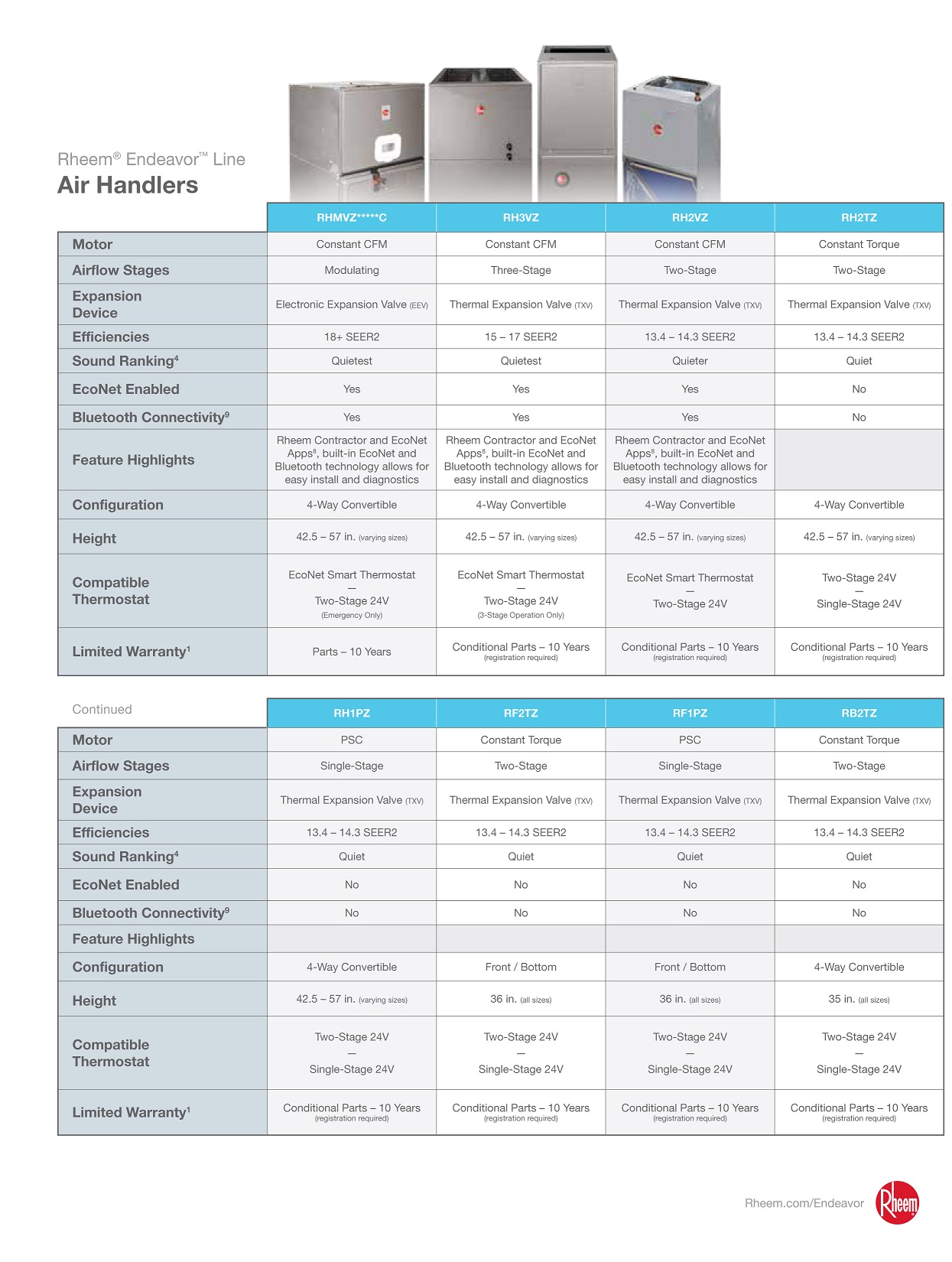

RH2TZ Air Handler:
- RH2TZ features a Constant Torque motor (ECM) which provides enhanced SEER2 performance with most Rheem outdoor units.
- Versatile 4-way convertible design for upflow, downflow, horizontal left and horizontal right applications.
- Factory-installed indoor coil.
- Sturdy cabinet construction with 1.0 inch [25.4 mm] of foil faced insulation for excellent sound and insulating characteristics
- All models meet or exceed 330 to 400 CFM [156 to 189 L/s] per ton at .3 inches [.7 kPa] of external static pressure.
