38x72 Cladlite Concrete Hurricane Condenser Pad (T)
38x72 Cladlite Concrete Hurricane Condenser Pad (T)



List Price: $261.00
Our Price: $199.00
Sale Price: $125.00
You save $136.00!


Availability: Usually Ships in 1 to 2 Business Days
Product Code: 38X72PU3
Qty:

Description

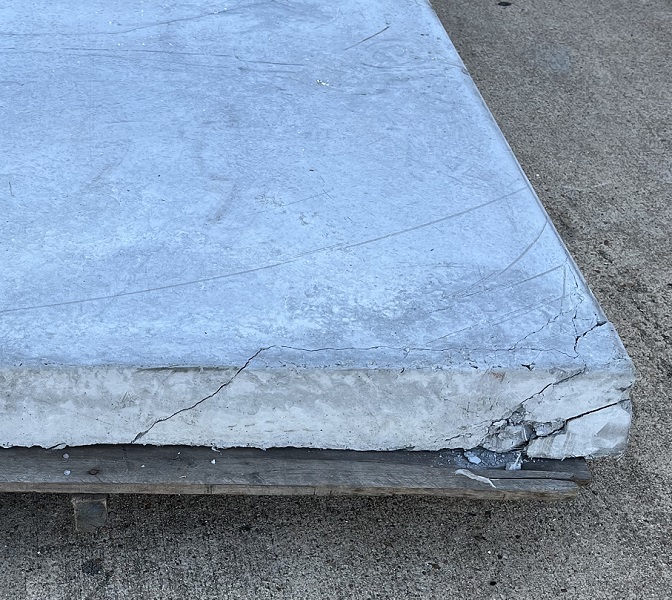

PAD HAS SLIGHT DAMAGE BUT STILL USABLE
PICK UP ONLY



38x72 Cladlite Concrete Hurricane Condenser, Landscape Pad (perfect for Rheem/Ruud or Goodman package units)
(PRODUCT CAN ONLY BE SHIPPED WITH PALLETIZED ORDER OR PICKED UP AT OUR FL OR TX OFFICE DUE TO HIGH PROBABILITY OF DAMAGE & EXCESSIVE SHIPPING COSTS)

Specs

Application: HVAC
Dimensions: 38" x 72"
Thickness: 4"

Weight: 229lbs

Description for DiversiTech H3636-4

Hurricane Strength Equipment Pads designed to Florida's tough standards!

Overview

Designed specifically for the hurricane prone regions of Florida and the Gulf Coast, the CladLite® Hurricane pad meets stringent local code requirements for wind resistance. Heavier than a normal concrete pad, this pad provides sufficient weight to meet code. These pads have been designed specifically to meet the intent of the Florida Building Code, Chapter 16, with respect to wind resistance. Method of attachment tested per ASCE 7. CladLite® Hurricane pads are suitable for all 130 mph and most 150 mph installations. For certain taller equipment, the CladLite® Hurricane T pad is needed. CladLite® Hurricane pads have been declared by the Florida Building Commission to be an acceptable alternative material to solid concrete slabs for use in specific applications from Tallahassee to Miami. Approval of the pad is within the discretion of the local building inspector. DCA02- DEC-183.

Features

  • Steel reinforced
  • 9,000 PSI fiber-concrete
  • Much lighter than solid concrete
  • CladLite® Hurricane pads keep units from sliding or blowing over in 150 MPH winds when properly attached
MEET THE NEW CODE

DiversiTech's CladLite® Hurricane and CladLite® Hurricane T-Class equipment pads meet the 4" height requirement of the Florida Building Code, Mechanical Volume, effective March 2003. Section 304.7 Clearance from grade. Equipment and appliances installed at grade level shall be supported on a level concrete slab or other approved material extending above adjoining grade a minimum of 4 inches (102mm). Suspended equipment and appliances shall be installed a minimum of 6 inches (152 mm) above adjoining grade. CladLite® Hurricane and CladLite® Hurricane T-Class equipment pads have been designed specifically to meet the intent of the Florida Building Code, Chapter 16, with respect to wind resistance. Method of attachment tested per ASCE 7. DiversiTech's CladLite® pads have been declared by the Florida Building Commission to be an acceptable alternative material to solid concrete slabs for use in specific applications from Tallahassee to Miami. Approval of the pad is within the discretion of the local building inspector. DCA02-DEC-183 CladLite® pads are approved by ICBO No. PFC-5112

Equipment must be properly attached to the CladLite® Hurricane pad or CladLite® Hurricane T-Class pad in order to prevent sliding and tipping in high winds.

Also commonly used in landscaping applications. See below pictures for inspiration from a previous landscape customer! Cheaper and lighter due to Styrofoam center than pouring concrete slabs!
