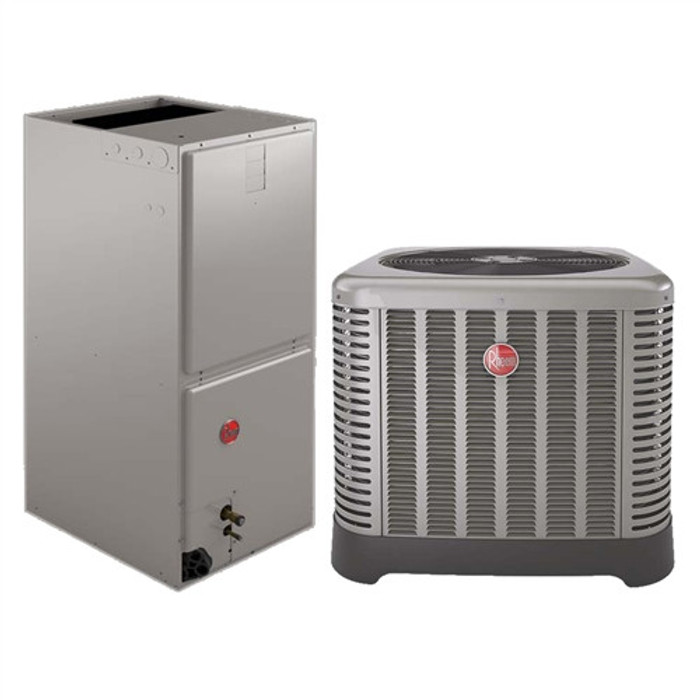

2 Ton Rheem 16 SEER Central System RA1624AJ1NA, RH1V2417STANJA Variable Speed
2 Ton Rheem 16 SEER Central System RA1624AJ1NA, RH1V2417STANJA Variable Speed



List Price: $4,099.00
Our Price: $3,285.00
Sale Price: $3,199.00
You save $900.00!
AHRI Certificate: Yes
AHRI Number: 201278751
AHRI Website: https://www.ahridirectory.org/


Availability: Out of stock
Product Code: 144055

Heat Strip

Please Select*:

Copper Line Set or Flush Kit

Do You Need?*:

Thermostat Upgrade Offer

Bundle & Save*:


Qty:
Description Technical Specs Additional Resources


Rheem offers the finest air conditioning solutions in the business. Top-quality & newly redesigned with the latest technology;
dependable performance, great warranties and excellent service. The all new RA16 condenser matched with the super efficient
RH1V variable speed air handler exceed the new 2015 EPA standards.



Classic Series: Single Stage (RA16)

Features:


  • New composite base pan – dampens sound, captures louver panels, eliminates corrosion and reduces number of fasteners needed
  • Powder coat paint system – for a long lasting professional finish
  • Scroll compressor – uses 70% fewer moving parts for higher efficiency and increased reliability
  • Modern cabinet aesthetics – increased curb appeal with visually appealing design
  • Curved louver panels – provide ultimate coil protection, enhance cabinet strength, and increased cabinet rigidity
  • Optimized fan orifice – optimizes airflow and reduces unit sound
  • Rust resistant screws – confirmed through 1500-hour salt spray testing
  • PlusOne™ Expanded Valve Space – 3"-4"-5" service valve space – provides a minimum working area of 27-square inches for easier access
  • PlusOne™ Triple Service Access – 15" wide, industry leading corner service access – makes repairs easier and faster. The two fastener removable corner allows optimal access to internal unit components. Individual louver panels come out once fastener is removed, for faster coil cleaning and easier cabinet reassembly
  • Diagnostic service window with two-fastener opening – provides access to the high and low pressure.
  • External gauge port access – allows easy connection of “low-loss” gauge ports
  • Single-row condenser coil – makes unit lighter and allows thorough coil cleaning to maintain “out of the box” performance
  • 35% fewer cabinet fasteners and fastener-free base – allow for faster access to internal components and hassle-free panel removal
  • Service trays – hold fasteners or caps during service calls
  • QR code – provides technical information on demand for faster service calls
  • Fan motor harness with extra long wires allows unit top to be removed without disconnecting fan wire.

    High Efficiency - Up to 16 SEER ECM Motor


    Features:

  • Includes an energy efficient ECM® Motor, which in most applications,enhances the SEER rating of the outdoor unit. It also slowly ramps its speed up for quiet operation and enhanced customer satisfaction.
  • Versatile 4-way convertible design for upflow, downflow, horizontal left and horizontal right applications.
  • Nominal airflow up to 1.0" external static pressure.
  • Factory-installed indoor coil.
  • Sturdy cabinet construction with 1.0 inch [25.4 mm] of foil faced insulation for excellent sound and insulating characteristics.
  • Field-installed auxiliary electric heater kits provide exact heat for indoor comfort. Kits include circuit breakers which meet U.L. and cUL requirements for service disconnect.
  • Dip switch settings for selectable, customized cooling airflow over a wide variety of applications.
  • On-demand dehumidification terminal that adjusts airflow to help control humidity for unsurpassed comfort in cooling mode.
  • External filter required.
  • Evaporator coil is constructed of aluminum fins bonded to internally grooved aluminum tubing.
WARRANTY:

  • Ten years all parts
  • Labor warranty should be provided by your installing contractor

CERTIFICATIONS:

Rheem does not endorse, approve, or certify any online sale of its products through auction websites, online retailers or any other method of online sales direct to consumers without an in-person site visit, inspection, and installation by a qualified, trained HVAC professional. Budgetheating.com endorses this policy and requests that you adhere to these guidelines.
